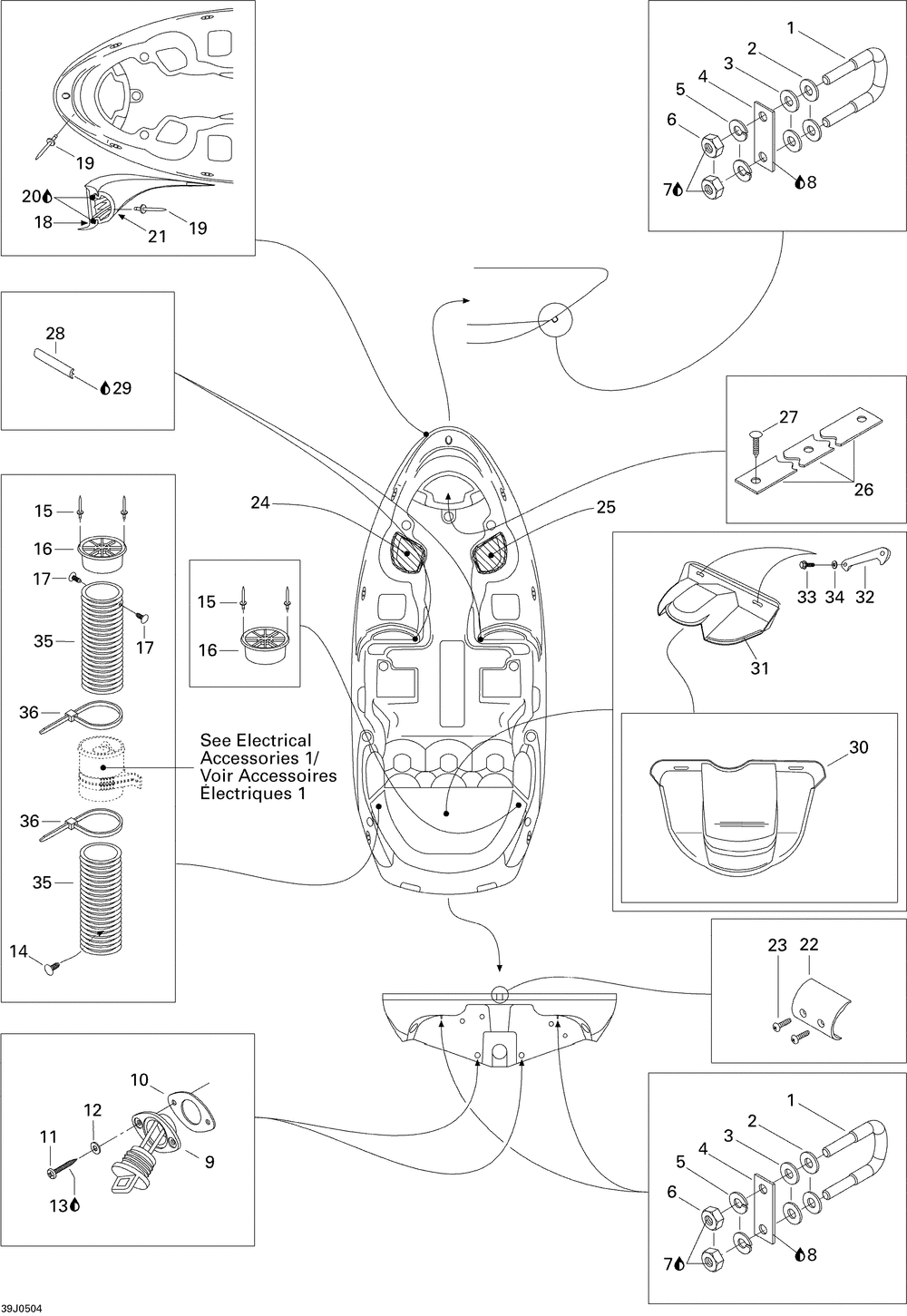

Корпус

Sea-Doo (Bombardier) Challenger X, 250 Optimax
Sea-Doo (Bombardier)
#oem кодцена
1
292000063
Bride En U *u-clamp ( )
2
293050001
Rondelle Plate *flat Washer ( )
3
211200029
Washer-flat Plastic ( )
4
291000307
Plaque Retenue *plate-retainer ( )
5
234181601
Washer-lock Helical Din.127b-a2 ( )
6
232081600
Nut-hexagonal Din.934a2 ( )
7
293800005
Loctite 271 *loctite-271 ( )
9
292000187
Bouchon Purge *plug-drain ( )
10
293250030
Joint Etanche *gasket ( )
11
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
12
234041600
Washer-flat Din.125a-a2 ( )
14
293730006
Dard Noir *dart-black ( )
15
293150036
Rivet-pop 1/8 *rivet-pop 1/8 ( )
16
204050533
"grille D Arat.*grill-vent/4""" ( )
18
204050199
Pare-chocs *bumper ( )
19
293150013
Rivet-pop 3/16 *rivet-pop 3/16 ( )
21
204050200
Moul.pare-chocs*trim-bump.side ( )
22
291000905
Cache-joint *cover-bumper ( )
23
209943260
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
24
204050541
Tapis-boite *carpet-storage Box - M685 ( )
25
204050542
Tapis-boite *carpet-storage Box - M686 ( )
26
204050234
Moulure-rangem.*trim-anchor Stor. ( )
28
204050048
Moulure Blanche*trim-white ( )
29
413705800
Loctite 414 *loctite-414 ( )
30
204050482
Couver Acces*cover-access ( )
31
293200020
Anneau Etanche *seal-tray ( )
32
204050159
Poignee Noire *handle-black ( )
33
241141660
Screw-pt.hex.flange K40 X 16 ( )
34
234042600
Washer-flat Din.9021b-a2 ( )
35
204050476
Boyau Ventilat.*hose-vent ( )
36
293750008
Tie Rap 350mm *tie-rap 350mm ( )
