Ручное управления

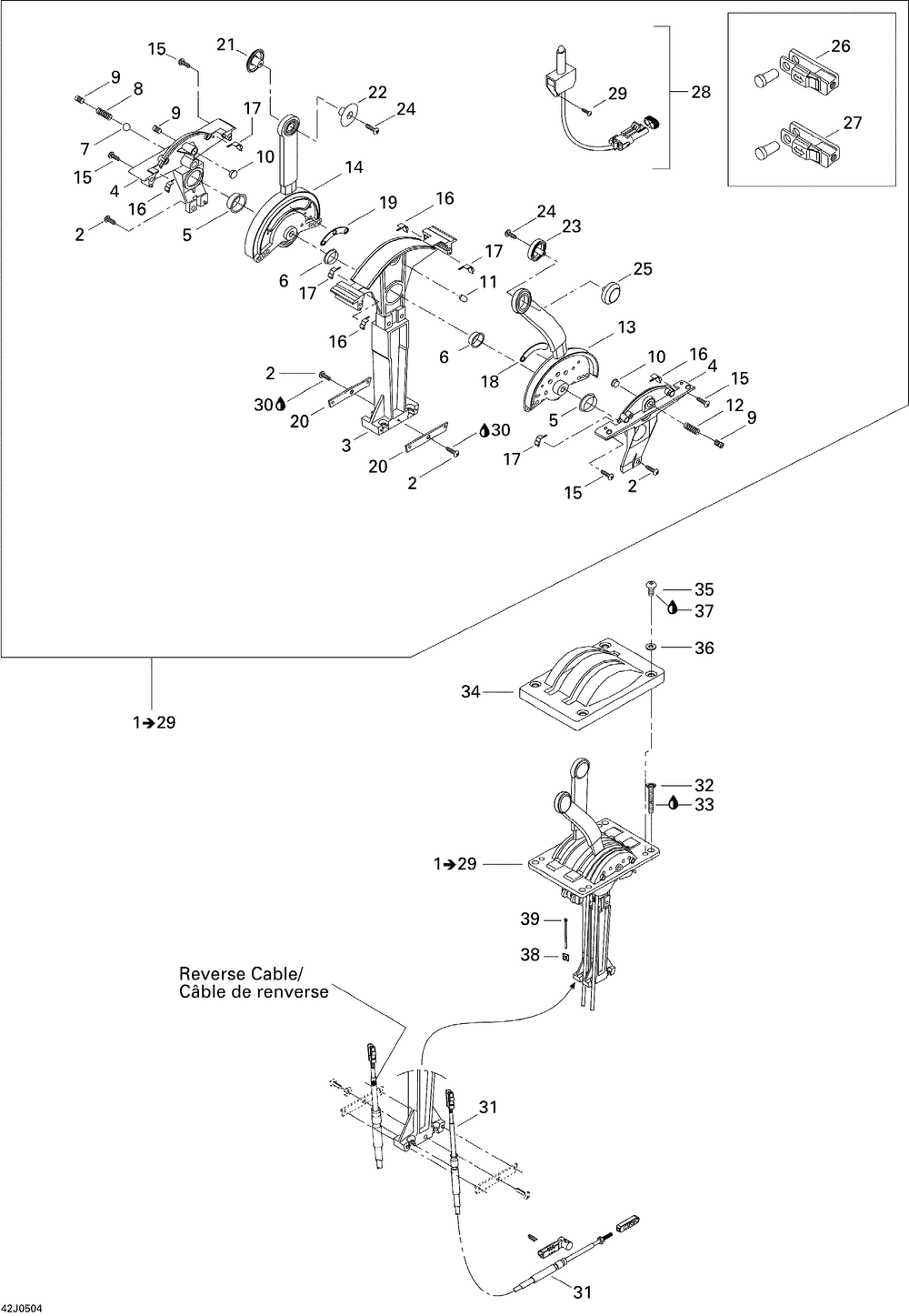

Sea-Doo (Bombardier) Challenger X, 250 Optimax
Sea-Doo (Bombardier)
#oem кодцена
1
204390377
Contr.ultraf*control-ultraflex (includes 1 To 29 )
2
208651660
Screw-pan Hd.ph.din.7985a-a2 ( )
6
277000398
Coussinet *bush ( )
7
277000399
Bille *ball ( )
8
277000400
Ressort *spring ( )
9
277000402
Vis Capuchon *screw-cap ( )
10
277000403
Ajout Friction *insert-frict. ( )
11
277000404
Pivot Blocage *pivot-blocking ( )
12
277000401
Ressort *spring ( )
13
277000655
Levier Accel. *lever-throttle ( )
14
277000414
Levier Transm. *lever-shift ( )
15
204100016
Vis M5 X 20 *screw-uni 7687 ( )
18
277000659
Entretoise Lev.*spacer-lev.thr ( )
19
277000408
Entretoise Lev.*spacer-lev.shi ( )
20
204390227
Plaque Retenue *plate-retaining ( )
21
277000417
Demi-cap.filete*half-cap Shift ( )
22
277000418
Demi-cap.ouvert*half-cap Shift ( )
23
277000416
Demi-cap.ouvert*half-cap Throt ( )
24
277000419
Vis M3.5 X 25 *screw-uni 6954 ( )
25
277000415
Demi-cap.filete*half-cap Throt ( )
26
204390226
Clevis L26 *clevis L26 ( )
27
204390225
Clevis L25 *clevis L25 ( )
28
278001195
Inter.neutre *switch-neutral ( )
29
208630660
Screw-pan Hd.ph.din.7985a-a2 ( )
30
293800060
Loctite 243
31
204390375
Cable Acceler.*cable-throttle ( )
32
205353060
Screw-socket Hd.ctsk.din.7991-a2 ( )
33
293800070
Loct.anti Grip.*loct-antiseize ( )
34
204390123
Recouvrement *plate-control ( )
35
208641060
Screw-pan Hd.ph.din.7985a-a2 ( )
36
234040600
Washer-flat Din.433a2 ( )
37
293800040
Loctite 425 *loctite-425 ( )
38
293750015
Ancrage Tie Rap*mount-tie Rap ( )
39
293750001
Tie Rap 94mm *tie-rap 94mm ( )
