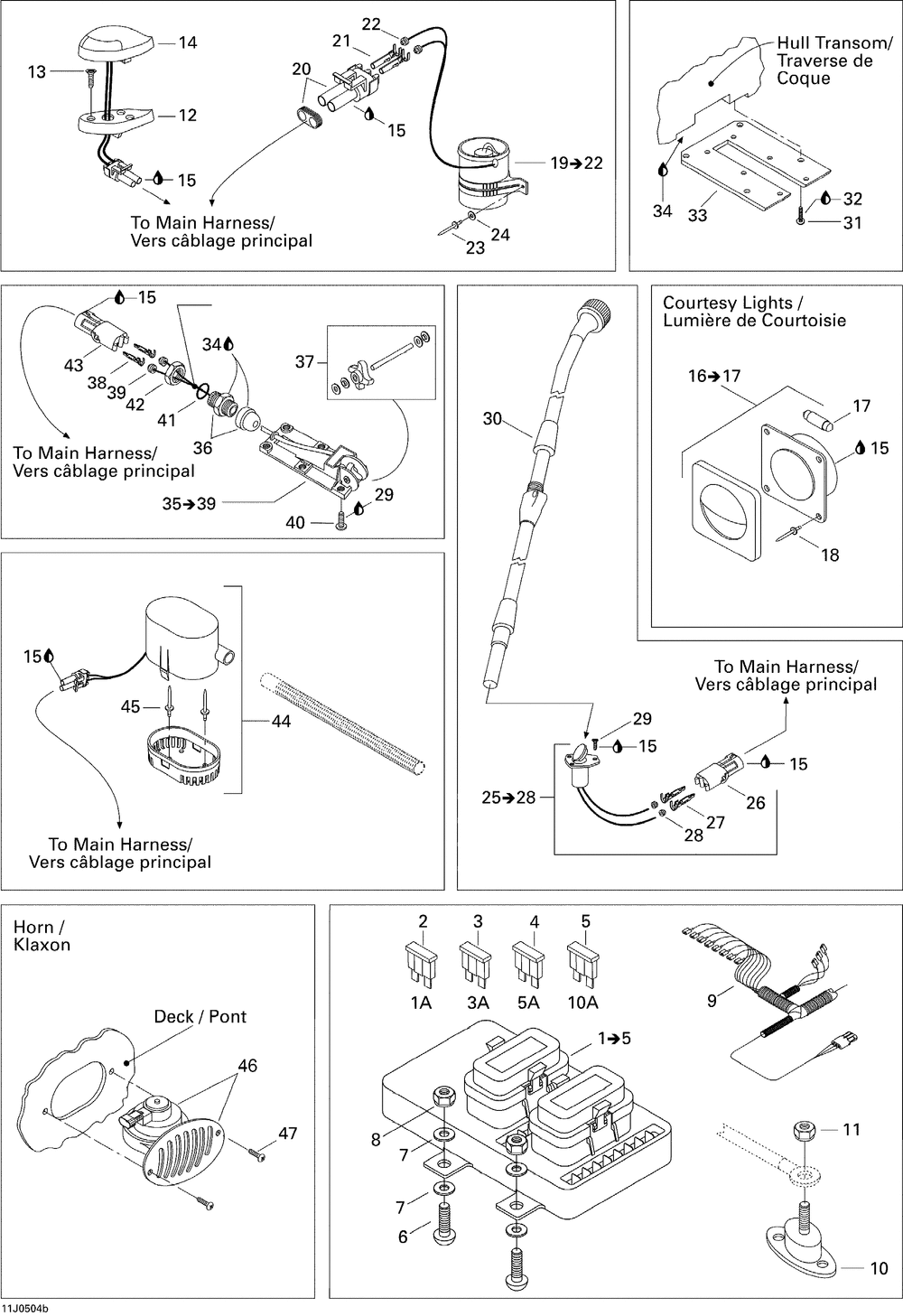

Электрика 2 Оригинальные запчасти для катеров Sea-Doo (Bombardier) Challenger X, 250 Optimax (2005)

Электрика 2

Sea-Doo (Bombardier) Challenger X, 250 Optimax

oem код

название

цена

204470815

Bloc Fusible *block-fuse (includes 1 To 5 )

409012800

Fusible 1a *fuse-1a ( )

278001196

Fusible 3 Amp. *fuse-3 Amp. ( )

278000344

Fusible 5 Amp. *fuse-5 Amp. ( )

278001197

Fusible 10 Amp.*fuse-10 Amp. ( )

208662560

Screw-pan Hd.ph.din.7985a-a2 ( )

234062600

Washer-flat Din.9021b-a2 ( )

232561600

Nut-stop Elastic Din.985-a2 ( )

204470835

Cablage *harness ( )

204470715

"poteau Masse*post-ground 3/8""" ( )

204100032

Nut-stop Elastic 3/8-16 ( )

204470072

Supp.phare Av. *supp-lamp Front ( )

209642560

Screw-tapp.pan Hd.ph.din.7981c-a2 ( )

204470311

Phare Avant *lamp-front (3120b1) ( )

293550004

Graisse Dielect*grease-dielect Dc4 ( )

204470026

Lum.courtoisie *light-courtesy (includes 16 To 17 )

204470081

Ampoule *bulb ( )

293150032

Rivet-pop 1/8 *rivet-pop 1/8 ( )

204470108

Ventilateur Ass*fan-assy. (includes 19 To 22 )

278000220

Bloc 2 Circ.mal*housing-tab(m) ( )

278000223

Cosse Femelle *terminal-femal ( )

278000218

Joint De Fil *seal-wire ( )

293150011

Rivet-pop 3/16 *rivet-pop 3/16 ( )

234052600

Washer-flat Din.9021b-a2 ( )

204471177

Base Phare Arr.*base Assy-rear Lamp (includes 25 To 28 )

278000217

Bloc 2 Circ.fem*housing-tab(f) ( )

278000222

Cosse Male *terminal-male ( )

209943260

Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )

204471207

"pole Phare *pole-lamp / 62""" ( )

208563560

Screw-ctsk.ov.hd.ph.din.966a-a2 ( )

293800060

Loctite 243

204470538

Support Senseur*support-sensor ( )

278001997

Capteur Vitesse*sensor-speed (includes 35 To 39 )

293710031

Raccord Elect. *connect-elect. ( )

296000193

Paddle Wheel Kit ( )

208551060

Screw-ctsk.ov.hd.ph.din.966a-a2 ( )

278000416

Rondelle Etanc.*washer-seal ( )

293710032

Ecrou D Arret *nut-locking ( )

204470562

Pompe Cale *pump-bilge ( )

293150029

Rivet-pop 5/32 *rivet-pop 5/32 ( )

204470801

Klaxon *horn ( )
