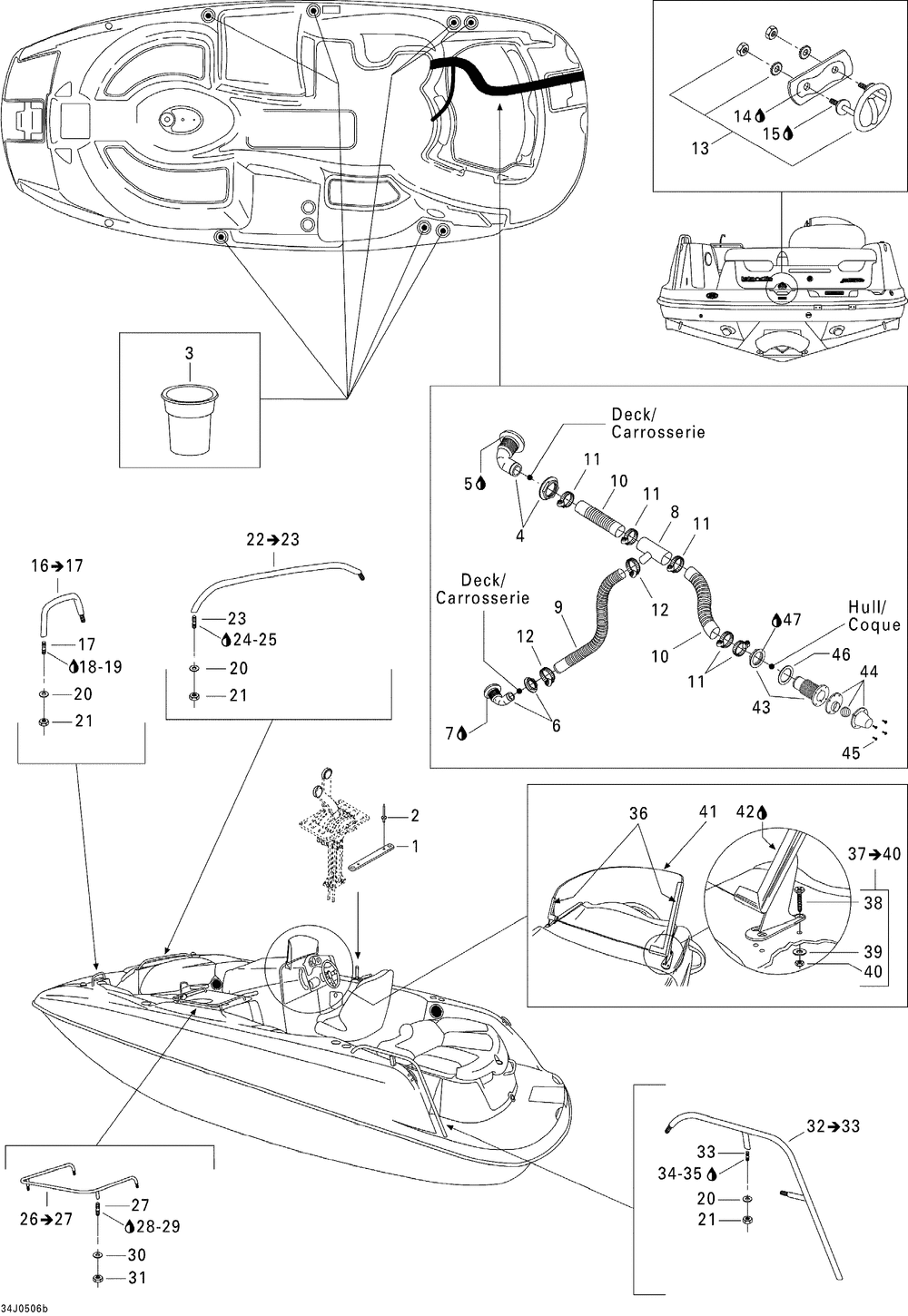

Кузов 2

Sea-Doo (Bombardier) Islandia, 250 OPTI
Sea-Doo (Bombardier)
#oem кодцена
1
293450061
Ajout Controle *insert-shifter ( )
2
293150013
Rivet-pop 3/16 *rivet-pop 3/16 ( )
3
291000619
Coupole Retenue*cup-holder ( )
4
293710084
Racc.passe Coq.*fitting/thru-hull ( )
6
204071166
Raccord-drain*fitting-drain ( )
8
204071167
Raccord En T *fitting-tee ( )
9
291001206
Boyau Bilgeflex*hose-bilgeflex ( )
10
204070560
Boyau Bilgeflex*hose-bilgeflex ( )
11
293650074
Bride Serrage *clamp-norma ( )
12
293650016
Bride Serrage *clamp-tridon ( )
13
204070206
Ancrage Skieur *tow-ski (66449-1) ( )
15
293800005
Loctite 271 *loctite-271 ( )
16
204070605
Garde-fou Proue*bow Rail Assy. (includes 16 To 17 )
17
204100050
Goujon Filete *stud-threaded ( )
19
293800041
Appret Loctite *primer-loctite ( )
20
234002600
Washer-flat Din.9021b-a2 ( )
21
204100032
Nut-stop Elastic 3/8-16 ( )
22
204070606
Garde-fou Proue*bow Rail Assy. (includes 22 To 23 )
26
204070608
Garde-fou Comp.*rail-counter.assy. (includes 26 To 27 )
27
204100033
Goujon Filete *stud-threaded ( )
30
234082600
Washer-flat Din.9021b-a2 ( )
31
212000005
Nut-stop Elastic Ms-17830 ( )
32
204071034
Garde-fou Accos*rail-board.assy. (includes 32 To 33 )
39
234061600
Washer-flat Din.125a-a2 ( )
40
232561414
Nut-stop Elastic Din.985 ( )
41
204070858
Pare-brise *windshield-front ( )
43
204060071
Passe-coque *hull-thru Fitt ( )
44
204060188
Soupape Dalot *valve-scupper ( )
45
211000180
Screw-plastite Pan Hd.ph ( )
46
293250039
Joint Etanche *gasket ( )
