Рулевая система Оригинальные запчасти для катеров Sea-Doo (Bombardier) Sportster LE DI (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

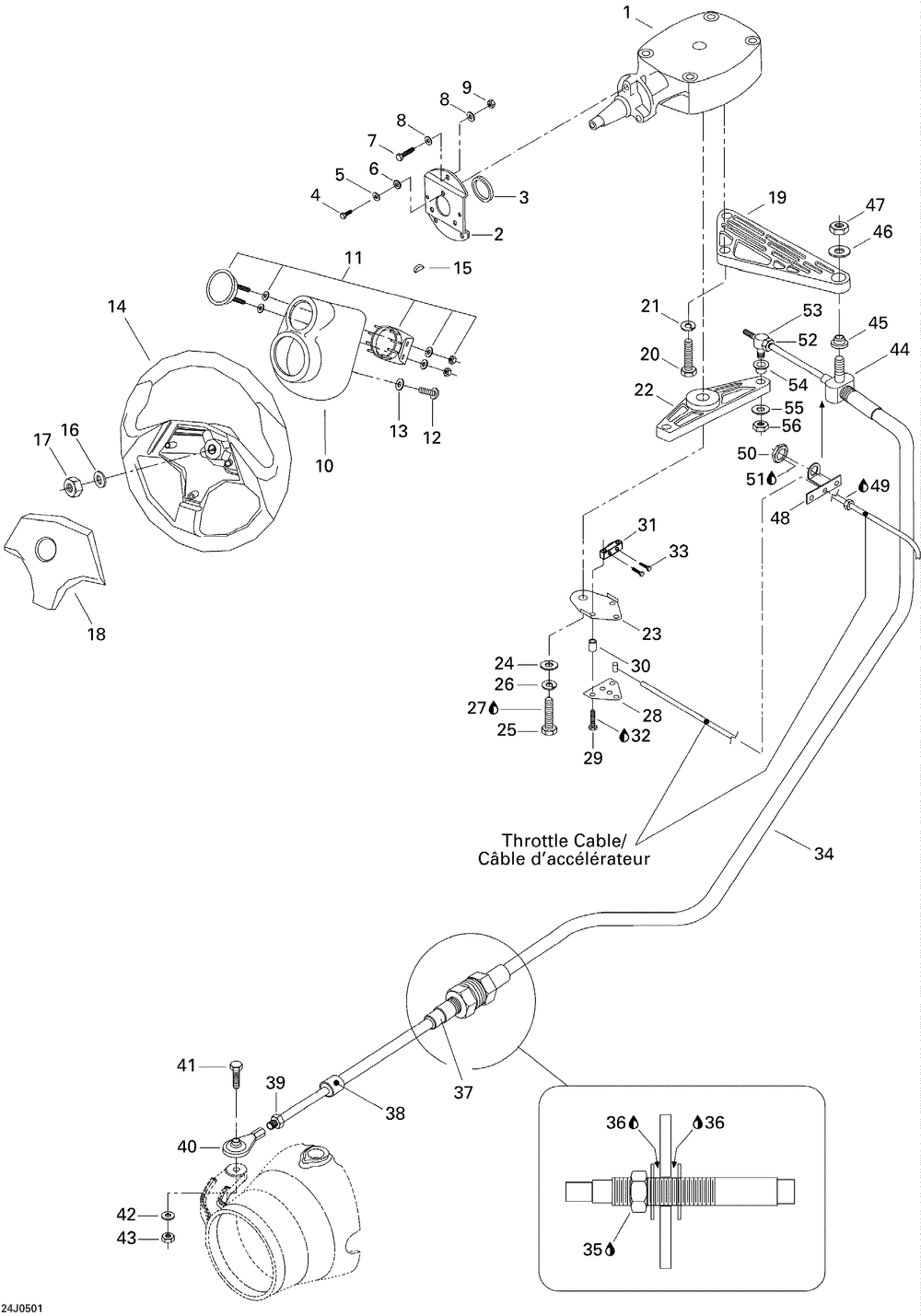

Рулевая система

Sea-Doo (Bombardier) Sportster LE DI

Рулевая система

#

oem код

название

цена

1

Gouvernail Ass.*helm-assy. ( )

Gouvernail Ass.*helm-assy. ( )

2

Supp.gouvernail*supp-helm ( )

Supp.gouvernail*supp-helm ( )

3

Entretoise *spacer ( )

Entretoise *spacer ( )

4

Screw-hex.s.grip #2353 Yellow ( )

Screw-hex.s.grip #2353 Yellow ( )

5

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

6

Washer-lock Serrated Din.6798a-a2 ( )

Washer-lock Serrated Din.6798a-a2 ( )

7

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

8

Washer-flat Din.125a-a2 ( )

Washer-flat Din.125a-a2 ( )

9

Nut-stop Elastic Din.985-a2 ( )

Nut-stop Elastic Din.985-a2 ( )

10

Collier Jaune *collar-br.yell ( )

Collier Jaune *collar-br.yell ( )

11

Capuch.jauge *cap-gauge ( )

Capuch.jauge *cap-gauge ( )

12

Screw-pt.hex.flange K40 X 25 ( )

Screw-pt.hex.flange K40 X 25 ( )

13

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

14

Volant Direct.*wheel-steering/blk. ( )

Volant Direct.*wheel-steering/blk. ( )

15

Clavette *key-woodruff ( )

Clavette *key-woodruff ( )

16

Washer-flat Stlss 1/2 ( )

Washer-flat Stlss 1/2 ( )

17

Nut-locking ( )

Nut-locking ( )

18

Centre Volant*center-steering ( )

Centre Volant*center-steering ( )

19

Support Cable *support-cable ( )

Support Cable *support-cable ( )

21

"rondelle Frein *washer-lock 1/4""" ( )

"rondelle Frein *washer-lock 1/4""" ( )

22

Bras *arm ( )

Bras *arm ( )

23

Att.inf.cable *clip-lower ( )

Att.inf.cable *clip-lower ( )

24

Entretoise *spacer ( )

Entretoise *spacer ( )

25

Screw-hex.s.grip #2353 Yellow ( )

Screw-hex.s.grip #2353 Yellow ( )

27

Loctite 243

Loctite 243

28

Att.sup.cable *clip-upper ( )

Att.sup.cable *clip-upper ( )

29

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

30

Entretoise *spacer ( )

Entretoise *spacer ( )

31

Bloc Ajustement*block-adjustment ( )

Bloc Ajustement*block-adjustment ( )

33

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

34

Cable Direction*cable-steering ( )

Cable Direction*cable-steering ( )

37

Env.etanche *swivel-seal ( )

Env.etanche *swivel-seal ( )

38

Racleur *wiper-terminal ( )

Racleur *wiper-terminal ( )

39

Ecrou 5/16-24 *nut-5/16-24 ( )

Ecrou 5/16-24 *nut-5/16-24 ( )

40

Joint Rotule *ball Joint ( )

Joint Rotule *ball Joint ( )

41

Screw-hex.cap Din.931a2 ( )

Screw-hex.cap Din.931a2 ( )

44

Pivot 3/8 *pivot-3/8 ( )

Pivot 3/8 *pivot-3/8 ( )

45

Douille Epaul. *flange Bushing ( )

Douille Epaul. *flange Bushing ( )

46

Washer-flat Din.125a-a2 ( )

Washer-flat Din.125a-a2 ( )

47

Nut-locking ( )

Nut-locking ( )

48

Support Cable *support-cable ( )

Support Cable *support-cable ( )

50

Nut-hex.jam ( )

Nut-hex.jam ( )

53

Pivot Teleflex *pivot-teleflex ( )

Pivot Teleflex *pivot-teleflex ( )

54

Douille *bushing ( )

Douille *bushing ( )

55

Washer-flat 1/4 Ss-316 ( )

Washer-flat 1/4 Ss-316 ( )

56

Nut-stop Elastic Ms-17830 ( )

Nut-stop Elastic Ms-17830 ( )
