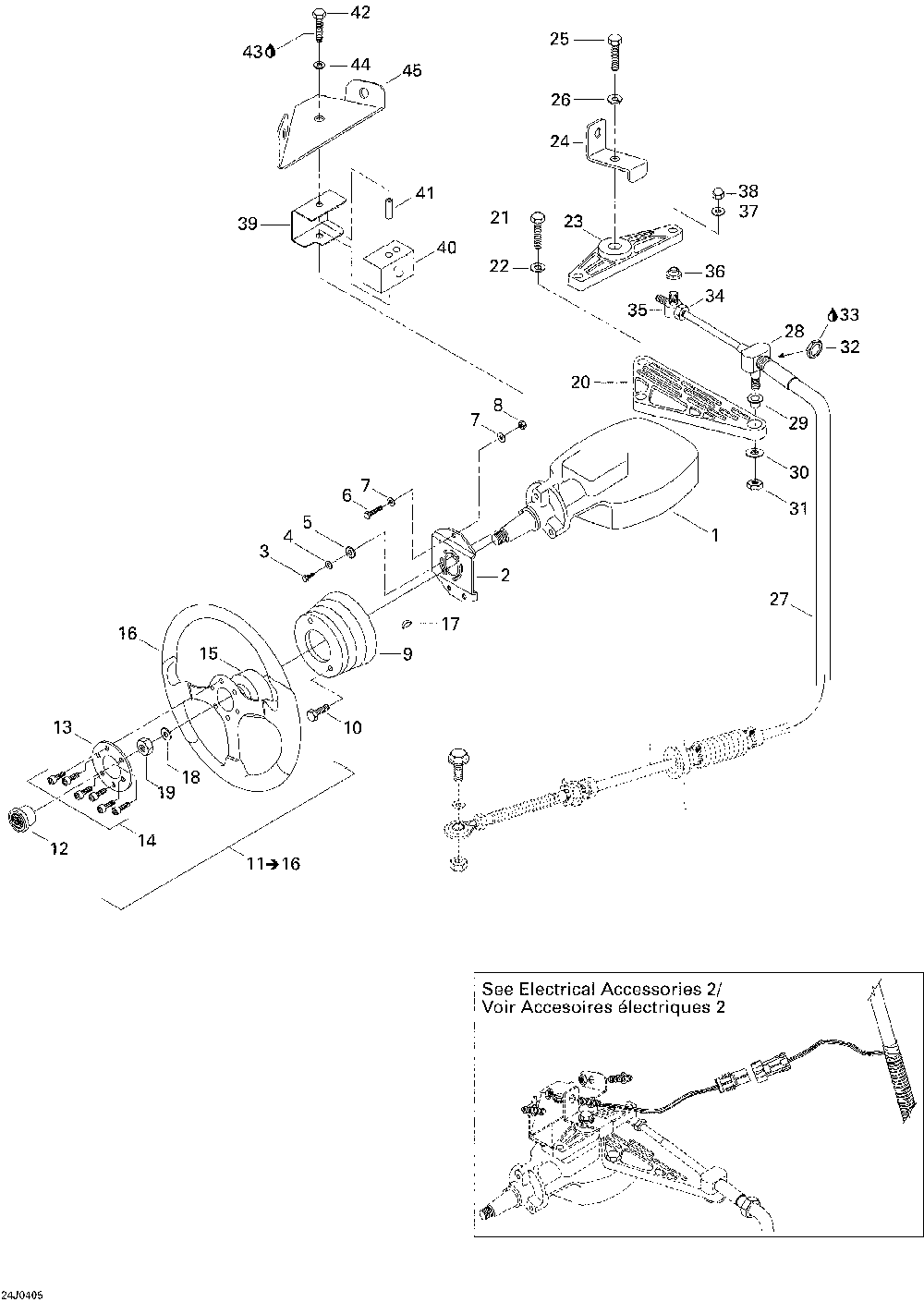

Рулевая система

Sea-Doo (Bombardier) Challenger 1800, 240 ER
Sea-Doo (Bombardier)
#oem кодцена
1
204390244
Gouvernail Ass.*helm-assy.
2
277000383
Supp.gouvernail*supp-helm
3
211000050
Screw-hex.s.grip #2353 Yellow
4
234062600
Шайба
5
234481608
Washer-lock Serrated Din.6798a-a2
6
207163060
Винт
7
234061600
Шайба
8
232561600
Гайка стопорная эластичная 985-A2
9
204390030
Collier Noir *collar-black
10
204390059
Vis Fil.coupant*screw-thread
11
204390170
Volant Direct.*wheel-steer.assy. Includes 11 To 16
12
204390327
Capuch.centre*cap-center
15
204390330
Moyeu Nylon*hub-nylon
17
277000384
Шпонка
18
211200006
Washer-flat Stlss 1/2
19
211100021
Nut-locking
20
277000458
Support Cable *support-cable
22
211200025
"rondelle Frein *washer-lock 1/4"""
23
204390040
Bras *arm
24
204390271
Support-inter. *mount-switch
25
211000054
Screw-hex.s.grip #2353 Yellow
27
204390212
Cable Direct. *cable-steering
28
277000461
Pivot 3/8 *pivot-3/8
29
293350014
Douille Epaul. *flange Bushing
30
234001600
Шайба
31
211100024
Nut-locking
32
204390053
Nut-hex.jam
33
293800060
Фиксатор резьбы loctite-243
34
277000439
Ecrou 5/16-24 *nut-5/16-24
35
277000456
Pivot Teleflex *pivot-teleflex
36
204130095
Втулка
37
211200019
Washer-flat 1/4 Ss-316
38
212000005
Nut-stop Elastic Ms-17830
39
204390245
Sup.butee Gouv.*support-helm Bumper
40
204390246
Butee Gouvern. *bumper-helm
41
204130004
Douille *bushing-ss
42
204100014
"screw-hex 1/4""-20 X 2 1/2"" Ss-304"
45
204390339
Came D Interr.*cam-switch/lsc
