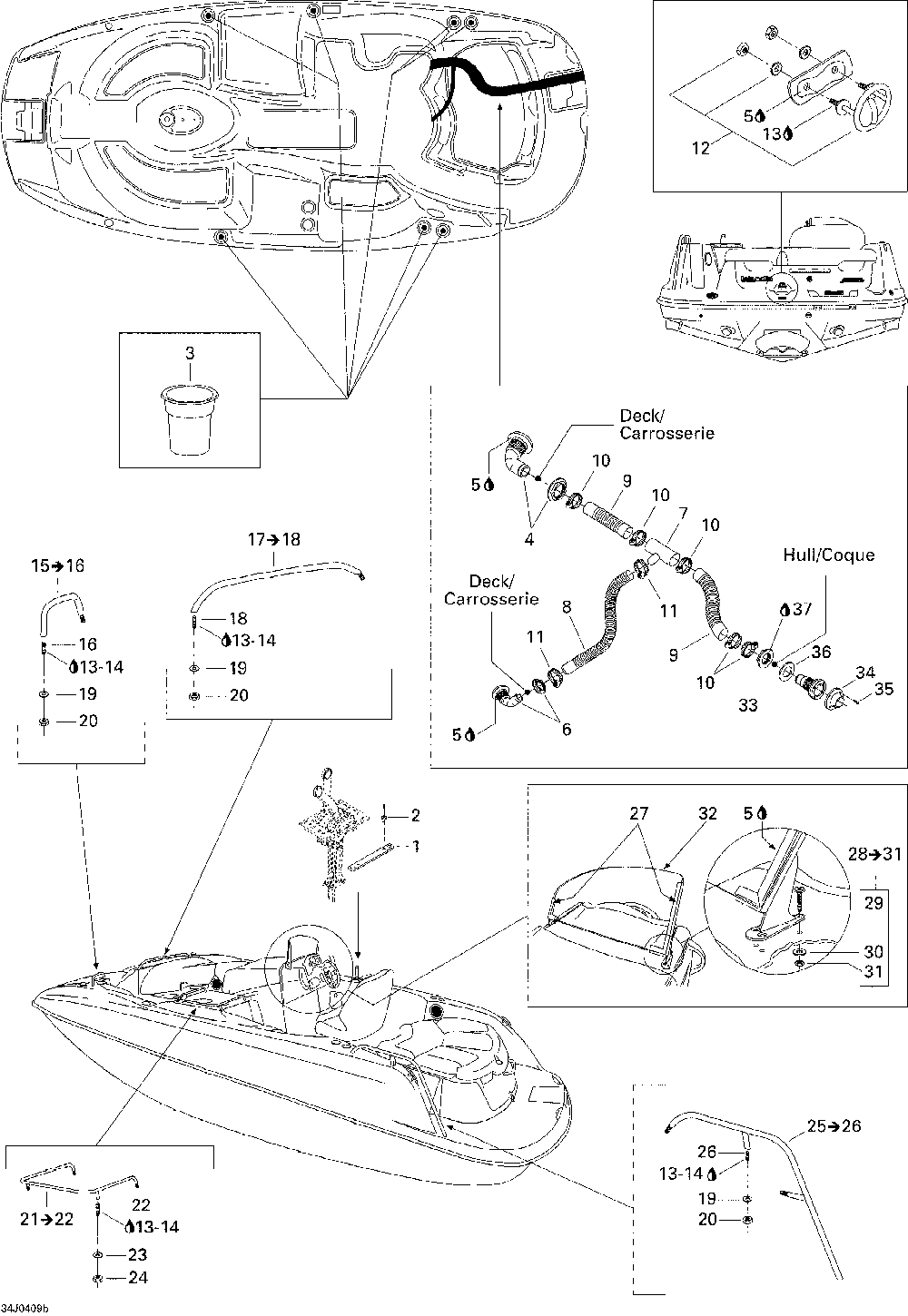

Кузов 2

Sea-Doo (Bombardier) Islandia, 250 OPTI, 240 EFI
Sea-Doo (Bombardier)
#oem кодцена
1
293450061
Ajout Controle *insert-shifter
2
293150013
Заклепка 3/16
3
291000619
Coupole Retenue*cup-holder
4
293710084
Racc.passe Coq.*fitting/thru-hull
6
204071166
Raccord-drain*fitting-drain
7
204071167
Raccord En T *fitting-tee
8
291001206
Boyau Bilgeflex*hose-bilgeflex
9
204070560
Boyau Bilgeflex*hose-bilgeflex
10
293650074
Хомут -norma
11
293650016
Хомут
12
204070206
Ancrage Skieur *tow-ski (66449-1)
13
293800005
Смазка Loctite 271
14
293800041
Appret Loctite *primer-loctite
15
204070605
Garde-fou Proue*bow Rail Assy. Includes 15 To 16
16
204100050
Goujon Filete *stud-threaded
17
204070606
Garde-fou Proue*bow Rail Assy. Includes 17 To 18
19
234002600
Шайба
20
204100032
Nut-stop Elastic 3/8-16
21
204070608
Garde-fou Comp.*rail-counter.assy. Includes 21 To 22
22
204100033
Goujon Filete *stud-threaded
23
234082600
Шайба
24
212000005
Nut-stop Elastic Ms-17830
25
204071034
Garde-fou Accos*rail-board.assy. Includes 25 To 26
29
208562560
Винт
30
234061600
Шайба
31
232561414
Гайка с тефлоном
32
204070858
Pare-brise *windshield-front
33
204060071
Passe-coque *hull-thru Fitt
34
204060188
Soupape Dalot *valve-scupper
35
211000180
Screw-plastite Pan Hd.ph
36
293250039
Прокладка
