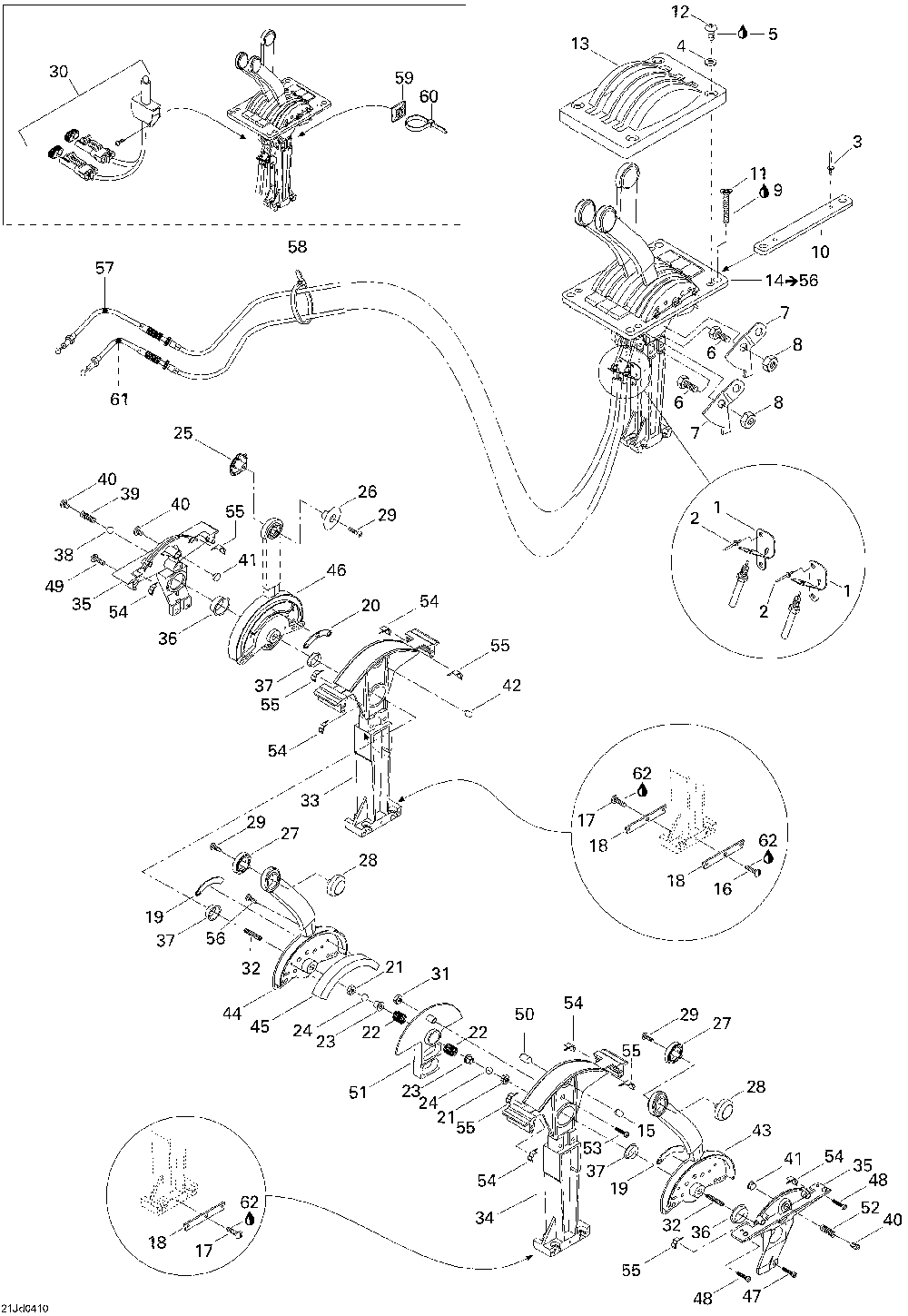

Ручное управления

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC, 1st edition
Sea-Doo (Bombardier)
#oem кодцена
1
277000504
Support Cable *support-cable
2
293150026
Заклепка
3
293150013
Заклепка 3/16
4
234040600
Шайба DIN.433A2 (отпуск.по 10 шт)
5
293800040
Loctite 425 *loctite-425
6
207151660
Винт
7
204390045
Maille Cable *link-throttle
8
232551600
Гайка
9
293800070
Смазка
10
293450061
Ajout Controle *insert-shifter
11
205353060
Screw-socket Hd.ctsk.din.7991-a2
12
208641060
Винт
13
204390124
Recouvrement *plate-control
14
204390383
Controle Ultra.*control-ultraflex Includes 14 To 56
15
277000708
Goupille Accel.*pin-lev.thrott
19
277000707
Entretoise Lev.*spacer-lev.thr
20
277000408
Entretoise Lev.*spacer-lev.shi
21
277000425
Ecrou M6 *nut-uni 7473
26
277000418
Demi-cap.ouvert*half-cap Shift
27
277000416
Demi-cap.ouvert*half-cap Throt
28
277000415
Demi-cap.filete*half-cap Throt
29
277000419
Vis M3.5 X 25 *screw-uni 6954
36
277000397
Coussinet *bush
37
277000398
Coussinet *bush
38
277000399
Шарик
39
277000400
Пружина
40
277000402
Vis Capuchon *screw-cap
41
277000403
Ajout Friction *insert-frict.
42
277000704
Pivot Blocage *pivot-blocking
43
277000655
Levier Accel. *lever-throttle
44
277000409
Levier Accel.ga*lever-throt.lh
46
277000414
Levier Transm. *lever-shift
47
277000420
Vis M5 X 60 *screw-uni 7687
48
204100016
Vis M5 X 20 *screw-uni 7687
49
277000422
Vis M5 X 70 *screw-uni 7687
50
277000705
Goupille Accel.*pin-lev.thrott
51
277000706
Entretoise Cadr*spacer-frame
52
277000401
Пружина
53
277000412
Vis M5 X 25 *screw-uni 6107
55
277000424
Obturateur Ga. *seal-water Lh.
57
204390385
Cable Acceler.*cable-throttle/lh
58
414115200
Стяжка 180мм
59
293750015
Ancrage Tie Rap*mount-tie Rap
60
293750001
Стяжка 94 мм
61
204390386
Cable Acceler.*cable-throttle/rh
62
293800060
Фиксатор резьбы loctite-243
