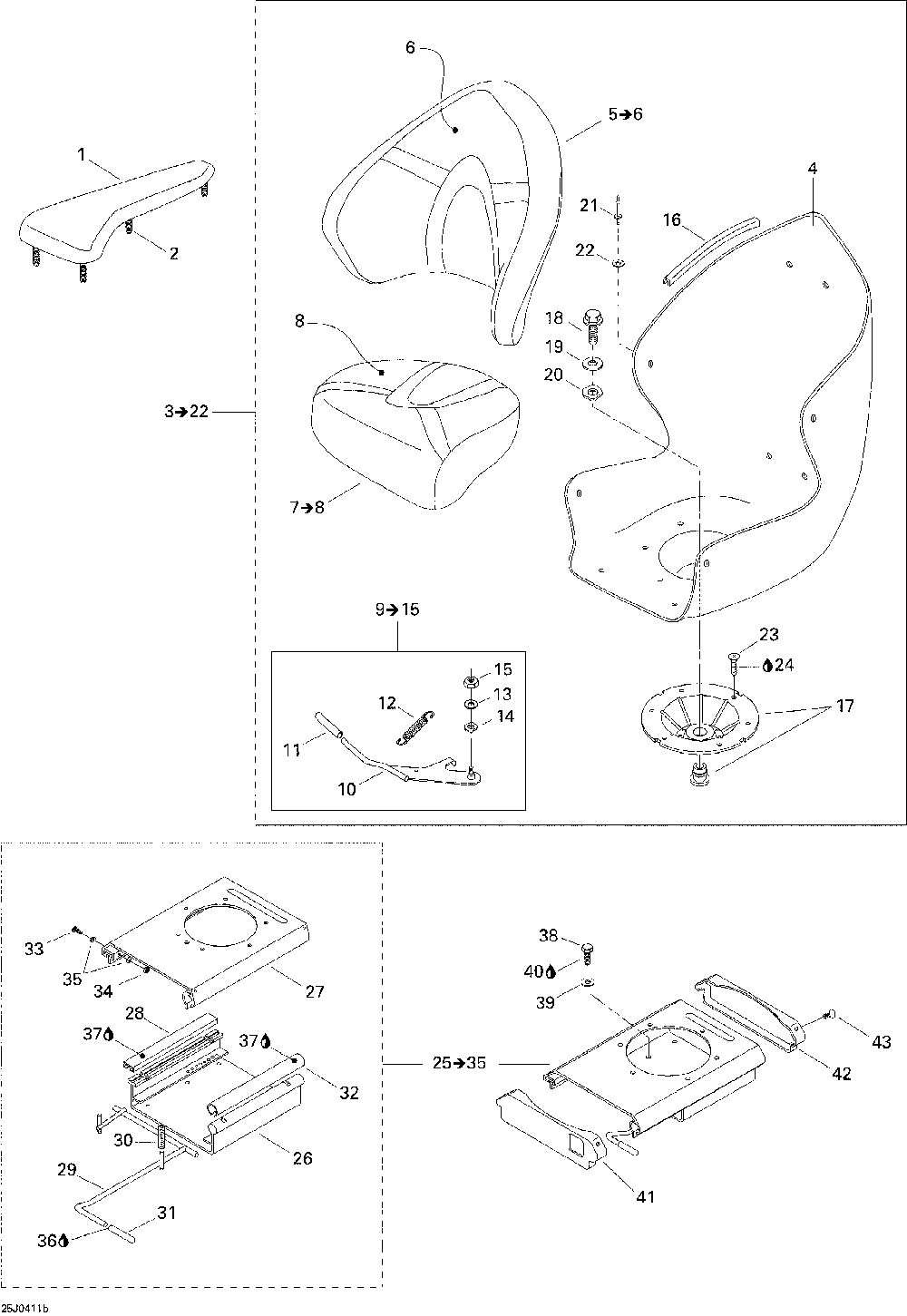

09- seat (driver and passenger)

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC, 2nd edition
Sea-Doo (Bombardier)
#oem кодцена
1
204612993
Accoud.ass.*elbowrest Assy/rh
1
204612995
Qccoud.ass.*elbowrest Assy/lh
2
293730021
Dard *dart
4
204611146
Base Siege *base-seat
5
204612998
Coussin Doss.*cushion-backrest Includes 5 To 6 / Red
5
204613020
Coussin Doss.*cushion-backrest Includes 5 To 6 / Blue
7
204613001
Coussin Siege*cushion-seat Includes 7 To 8 / Red
7
204613021
Coussin Siege*cushion-seat Includes 7 To 8 / Blue
9
204610523
Bras Levier *arm Lever Assy. Includes 9 To 15
10
204610524
Bras Levier *arm-lever
11
204610348
Ручка
12
204610349
Пружина
13
234061600
Шайба
14
211200059
Washer-three Wave
15
232561600
Гайка стопорная эластичная 985-A2
16
204610371
Moulure Noire *trim-black
17
204610513
Plaque Pivot *plate-swivel
18
211000172
Винт
19
211200058
Шайба
20
293200056
Rondelle *washer-3 Wave
21
204130014
Rivet-pop 3/16 *rivet-pop 3/16
22
204100059
Rondelle-plate *washer-flat
23
208561660
Винт
24
293800060
Фиксатор резьбы loctite-243
26
204610277
Base Siege *base-seat
33
207065060
Винт
36
413705800
Loctite 414 *loctite-414
37
293550010
Graisse Synth. *grease-synth.
38
207163560
Винт
39
234062600
Шайба
41
204610375
Protect.avant *protector-front
42
204610376
Protect.arriere*protector-rear
43
293730006
Пистон черный
