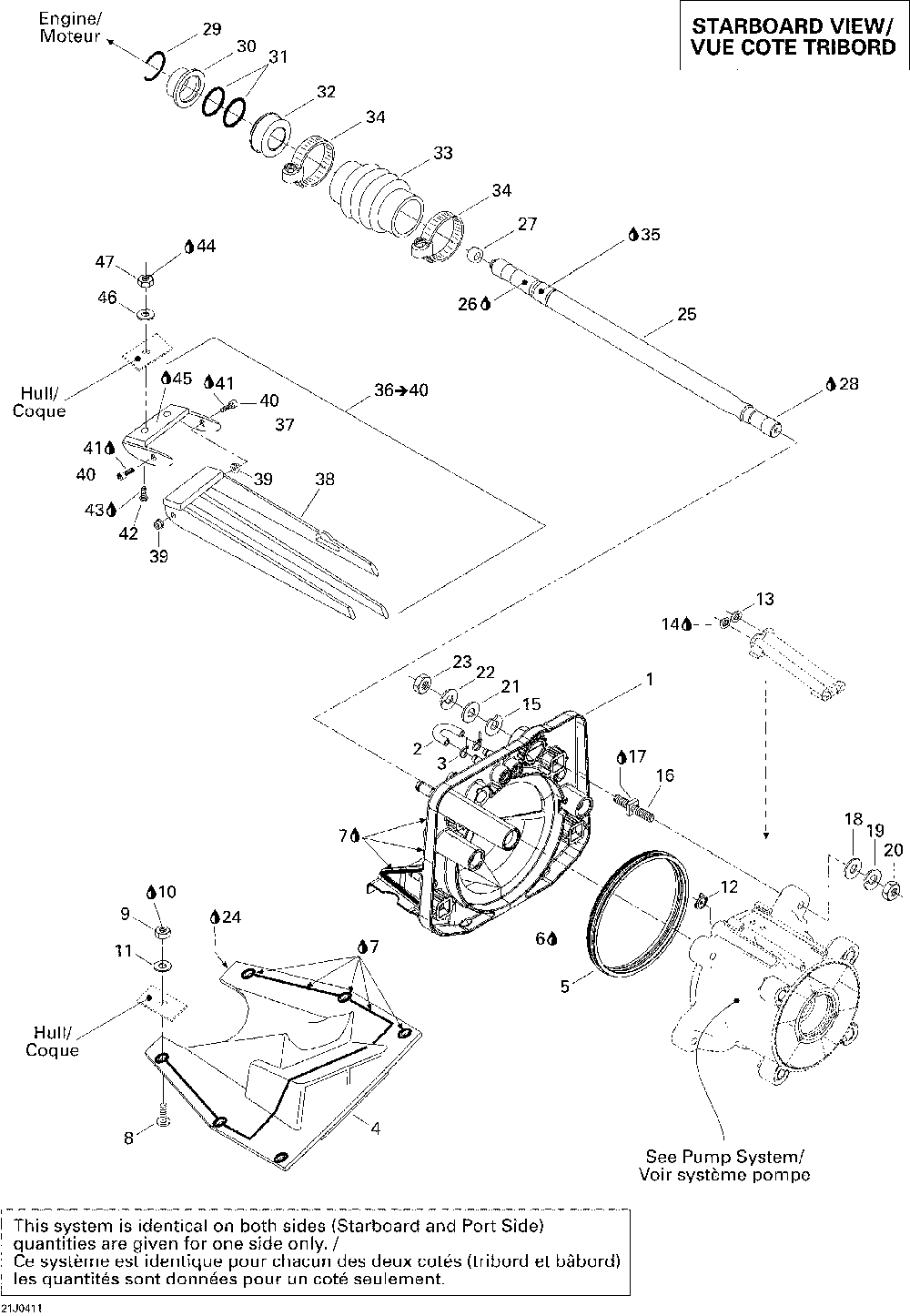

Вал водомета

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC, 2nd edition
Sea-Doo (Bombardier)
#oem кодцена
1
204120313
Supp.pompe*support-pump/machined
2
275000007
Шланг 8мм
3
293750001
Стяжка 94 мм
4
204120323
Plaque Promen.*plate-ride/port
4
204120324
Plaque Promen.*plate-ride/stbd.
5
293200087
Неопреновый сальник
6
413708300
Colle Tube 20gr*glue-tube 20gr
7
219701421
Instant Gasket *instant Gasket
8
208564060
Винт
9
232561600
Гайка стопорная эластичная 985-A2
11
234062600
Шайба
12
291001887
Редуктор
13
293250084
Кольцо
14
293800038
Локтайт-518
15
272000053
Пластина
15
204120067
Cale Epaisseur *shim-0.9mm
16
250300022
Шпилька
18
234002600
Шайба
19
234101601
Шайба Din.127b-a2
20
232001600
Гайка
25
271001449
Arbre Transm. *shaft Drive
27
272000173
Шайба
28
293550010
Graisse Synth. *grease-synth.
29
271001575
"pince En ""c"" *clip ""c"""
30
272000176
Bague Supp.flot*support Ring
31
293300044
Кольцо
32
272000177
Bague Carbone *carbon Ring
33
272000183
Сапун
34
293650077
Хомут -norma
35
293800070
Смазка
36
204120083
Supp.grille Dr.*supp-grate Rh Includes 36 To 40
36
204120256
Grille Mobile*grate-mobile/rh Includes 36 To 40
36
204390001
Douille Plast. *bushing-plast. Includes 36 To 40
36
211000099
Screw-socket Hd. Includes 36 To 40
36
293800060
Loctite 243 *loctite-243 Includes 36 To 40
36
204120086
Supp.grille Ga.*supp-grate Lh Includes 36 To 40
36
204120257
Grille Mobile*grate-mobile/lh Includes 36 To 40
42
208563060
Винт
