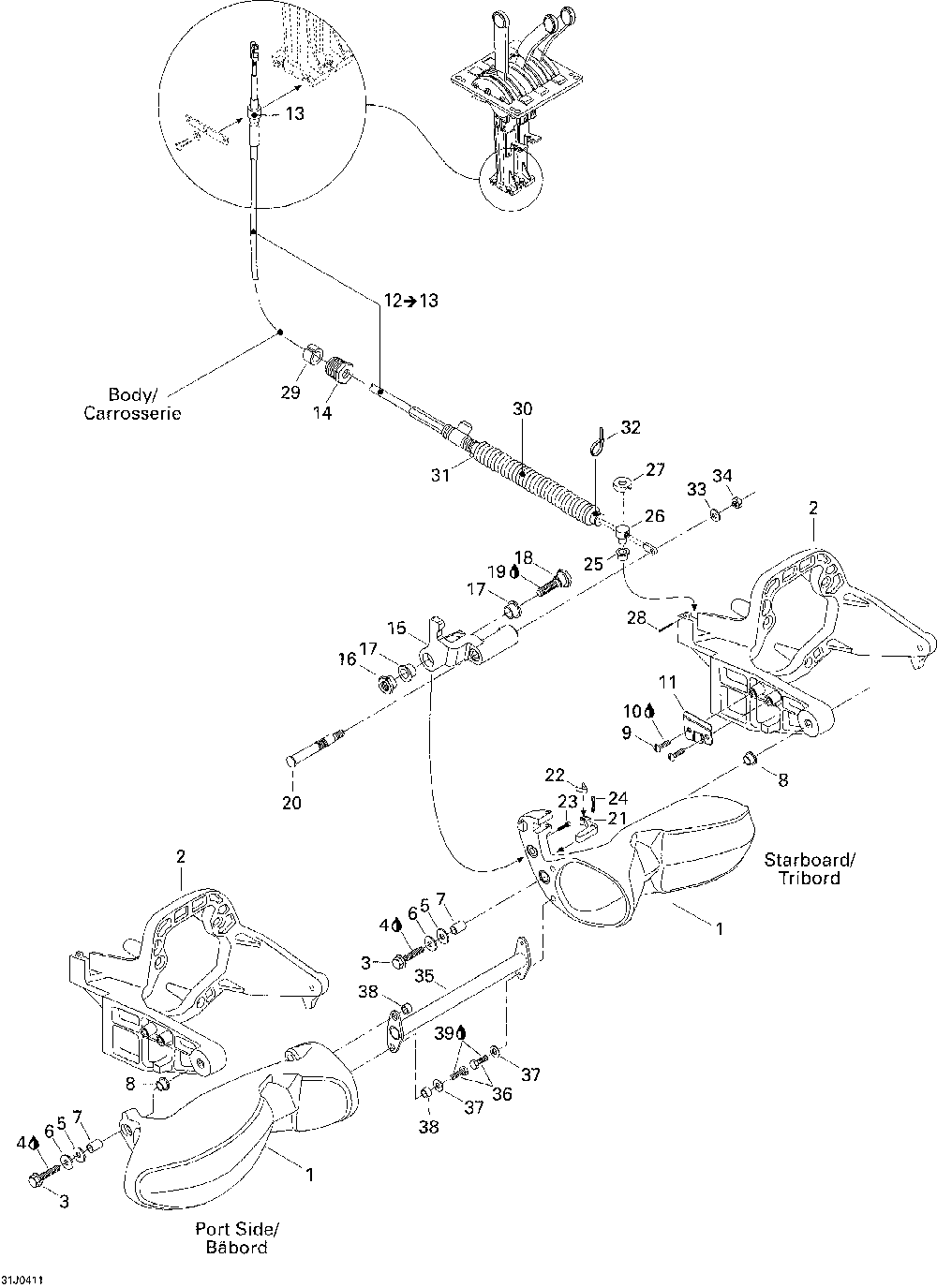

07- reverse

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC, 2nd edition
Sea-Doo (Bombardier)
#oem кодцена
1
204170217
Vanne Renver.*gate-reverse/port
1
207362060
Винт
1
234061600
Шайба
1
271001487
Anode Zinc *anode Zinc
1
204170218
Vanne Renver.*gate-reverse/stbd.
2
204170214
Supp. Vanne*support-gate
3
204100163
Screw-hex.flange 5/16-18x1.56
4
293800060
Фиксатор резьбы loctite-243
5
204100128
Rondel.nylon *washer-nylon
6
234082600
Шайба
7
204170177
Manchon *sleeve
8
204130237
Douille *bushing
9
204100122
Screw-pan Hd. 10-24 Unc X .50 Ss
11
271000485
Cran D Arret *pawl-stop
12
204160218
Cable Renverse*cable-reverse Includes 12 To 13
13
277000846
Embout Grand *boot-large
14
277000784
Стопор троса
15
204170230
Levier Goupille*lever-pin Assy.
16
204100123
Nut-shoulder 5/16-18 Unc S.s.
17
204130036
Втулка
18
204100124
Vis Epaulem.*screw-shoulder 5/16-18
19
293800005
Смазка Loctite 271
20
204130037
Goupille *pin-s.s.
21
204170220
Crochet Acier*hook-s.s. / Cast
22
271000431
Пружина
23
204100127
"screw-socket Hd.1/4""-20 X 3/8""-ss"
24
211400009
Pin-roll Spring Tension 1/8
26
204130038
Douille Lait.*bushing-brass
27
204170212
Douille *bushing-reverse Cable
28
204130040
Goupille Fend.*pin-cotter
29
204130041
Passe-fils *grommet-rubber
32
414115200
Стяжка 180мм
33
234052600
Шайба
34
204100034
Nut-stop Elastic 10-24 Ss
35
204170231
Tige Renverse*tie Rod-reverse
36
207142060
Винт
37
234042600
Шайба
38
204170026
Шайба -прокладка
