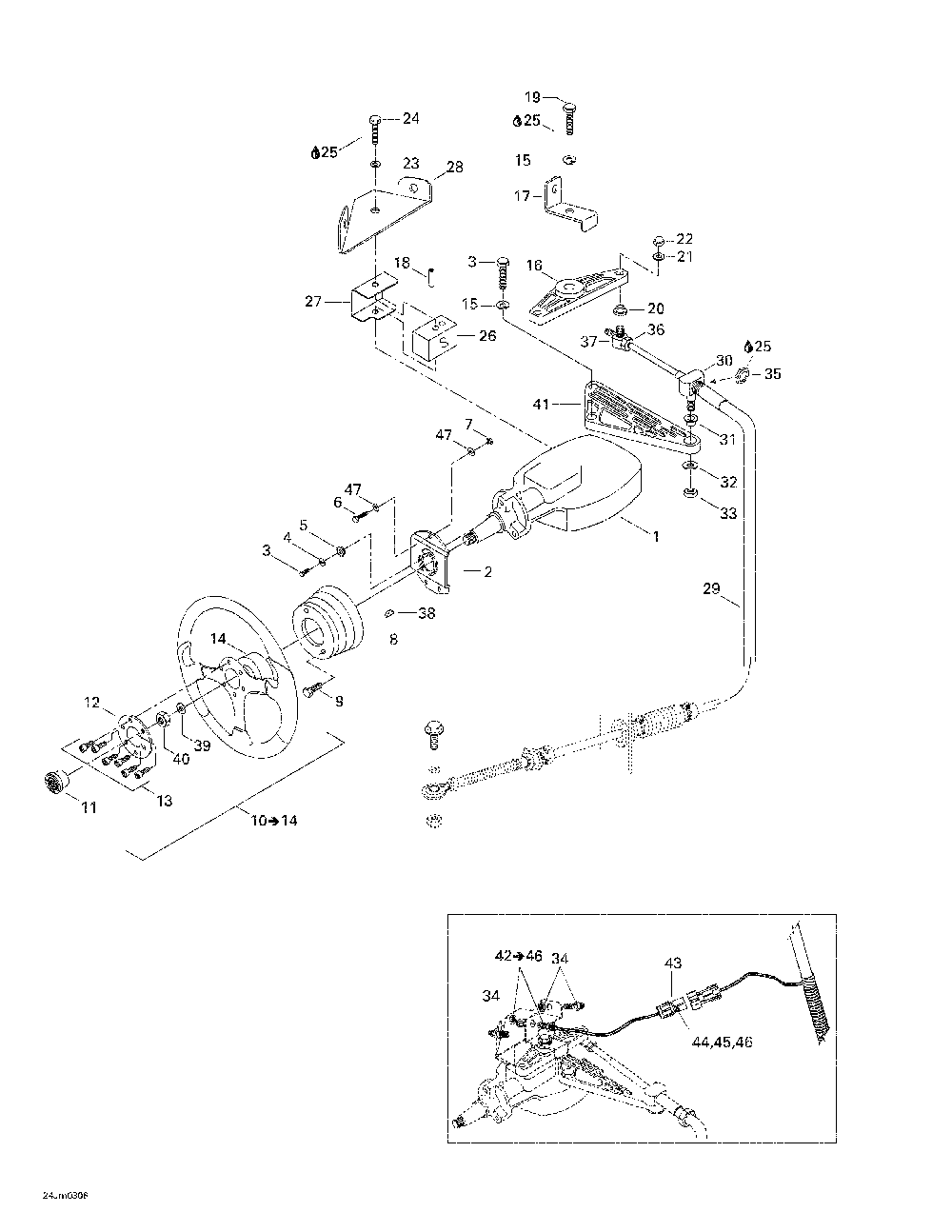

Рулевая система

Sea-Doo (Bombardier) Challenger 2000, 5776/5777
Sea-Doo (Bombardier)
#oem кодцена
1
204390244
Gouvernail Ass.*helm-assy.
2
277000383
Supp.gouvernail*supp-helm
3
211000050
Screw-hex.s.grip #2353 Yellow
4
234062600
Шайба
5
234461608
Washer-lock Serrated Din.6798a-a2
6
207163060
Винт
7
232561600
Гайка стопорная эластичная 985-A2
8
204390030
Collier Noir *collar-black
9
204390059
Vis Fil.coupant*screw-thread
10
204390170
Volant Direct.*wheel-steer.assy. Includes 10 - 14.
11
204390327
Capuch.centre*cap-center
13
204390329
Sac De Vis *pack-screw
14
204390330
Moyeu Nylon*hub-nylon
15
211200025
"rondelle Frein *washer-lock 1/4"""
16
204390040
Bras *arm
17
204390271
Support-inter. *mount-switch
18
204130004
Douille *bushing-ss
19
211000054
Screw-hex.s.grip #2353 Yellow
20
293350012
Втулка
21
211200019
Washer-flat 1/4 Ss-316
22
212000005
Nut-stop Elastic Ms-17830
24
204100014
"screw-hex 1/4""-20 X 2 1/2"" Ss-304"
25
293800060
Фиксатор резьбы loctite-243
26
204390246
Butee Gouvern. *bumper-helm
27
204390245
Sup.butee Gouv.*support-helm Bumper
28
204390339
Came D Interr.*cam-switch/lsc
29
204390172
Cable Direct. *cable-steering
30
277000461
Pivot 3/8 *pivot-3/8
31
293350014
Douille Epaul. *flange Bushing
32
234001600
Шайба
33
211100024
Nut-locking
34
204470632
Actuateur *actuator-l.s.c.
35
204390053
Nut-hex.jam
36
277000439
Ecrou 5/16-24 *nut-5/16-24
37
277000456
Pivot Teleflex *pivot-teleflex
38
277000384
Шпонка
39
211200006
Washer-flat Stlss 1/2
40
211100021
Nut-locking
41
277000458
Support Cable *support-cable
42
204470631
Capteur Ass. *sensor Assy. Includes 42 - 46.
45
204470641
Etanche Cable *seal-cable
46
278001481
Электрическая клемма "мама"
47
234061600
Шайба
