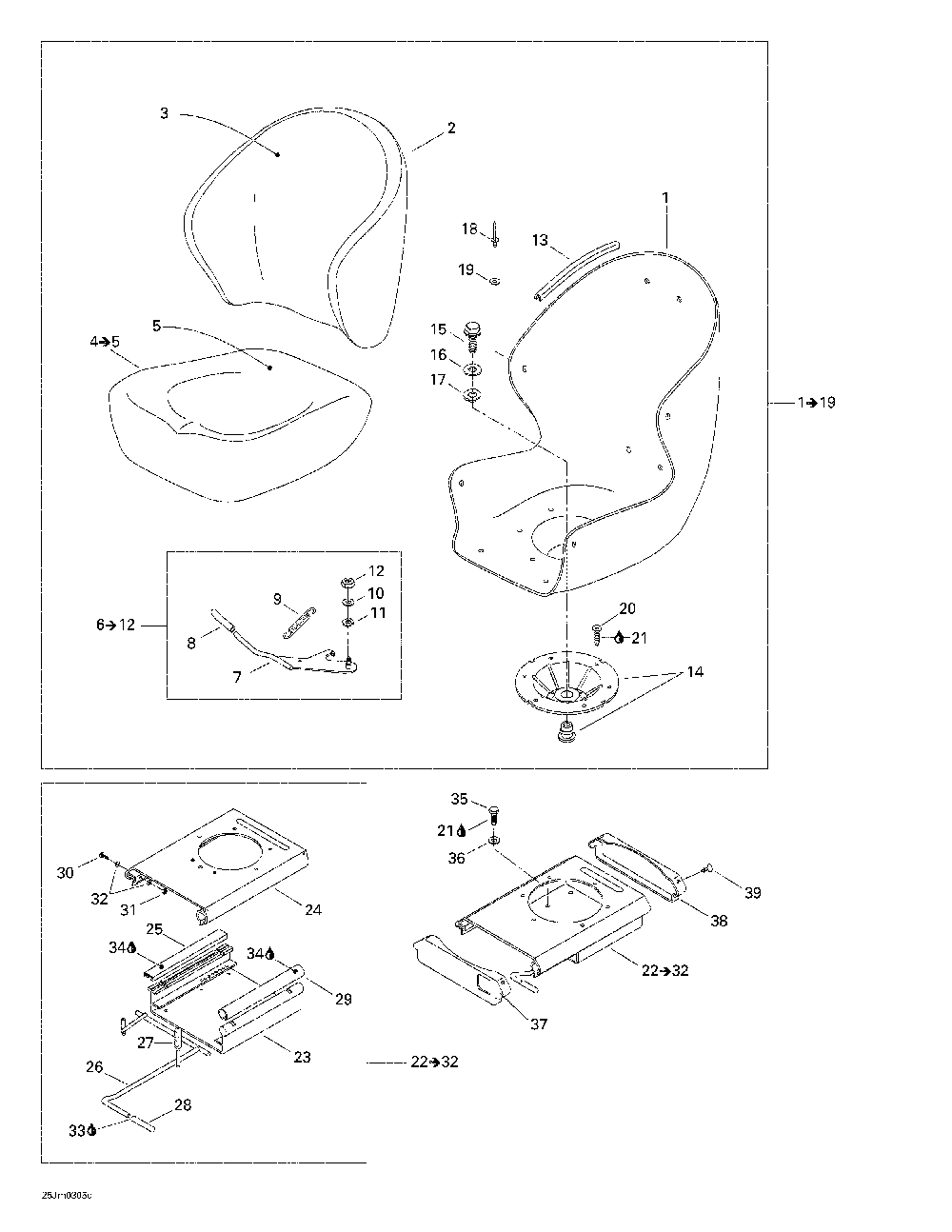

09- seat (driver and passenger)

Sea-Doo (Bombardier) Challenger X, 5778/5779
Sea-Doo (Bombardier)
#oem кодцена
1
204100059
Rondelle-plate *washer-flat Includes 1 - 19.
1
204130014
Rivet-pop 3/16 *rivet-pop 3/16 Includes 1 - 19.
1
204610371
Moulure Noire *trim-black Includes 1 - 19.
1
204610513
Plaque Pivot *plate-swivel Includes 1 - 19.
1
204610523
Bras Levier *arm Lever Assy. Includes 1 - 19.
1
204611146
Base Siege *base-seat Includes 1 - 19.
1
211200058
Washer-flat Includes 1 - 19.
1
293200056
Rondelle *washer-3 Wave Includes 1 - 19.
1
295501066
Couss.dossier *pad-backrest Assy. Includes 1 - 19.
7
204610524
Bras Levier *arm-lever
8
204610348
Ручка
9
204610349
Пружина
10
234061600
Шайба
11
211200059
Washer-three Wave
12
232561600
Гайка стопорная эластичная 985-A2
15
211000172
Винт
20
208561660
Винт
21
293800060
Фиксатор резьбы loctite-243
23
204610277
Base Siege *base-seat
30
207065060
Винт
33
413705800
Loctite 414 *loctite-414
34
293550010
Graisse Synth. *grease-synth.
35
207163560
Винт
36
234062600
Шайба
37
204610375
Protect.avant *protector-front
38
204610376
Protect.arriere*protector-rear
39
293730006
Пистон черный
