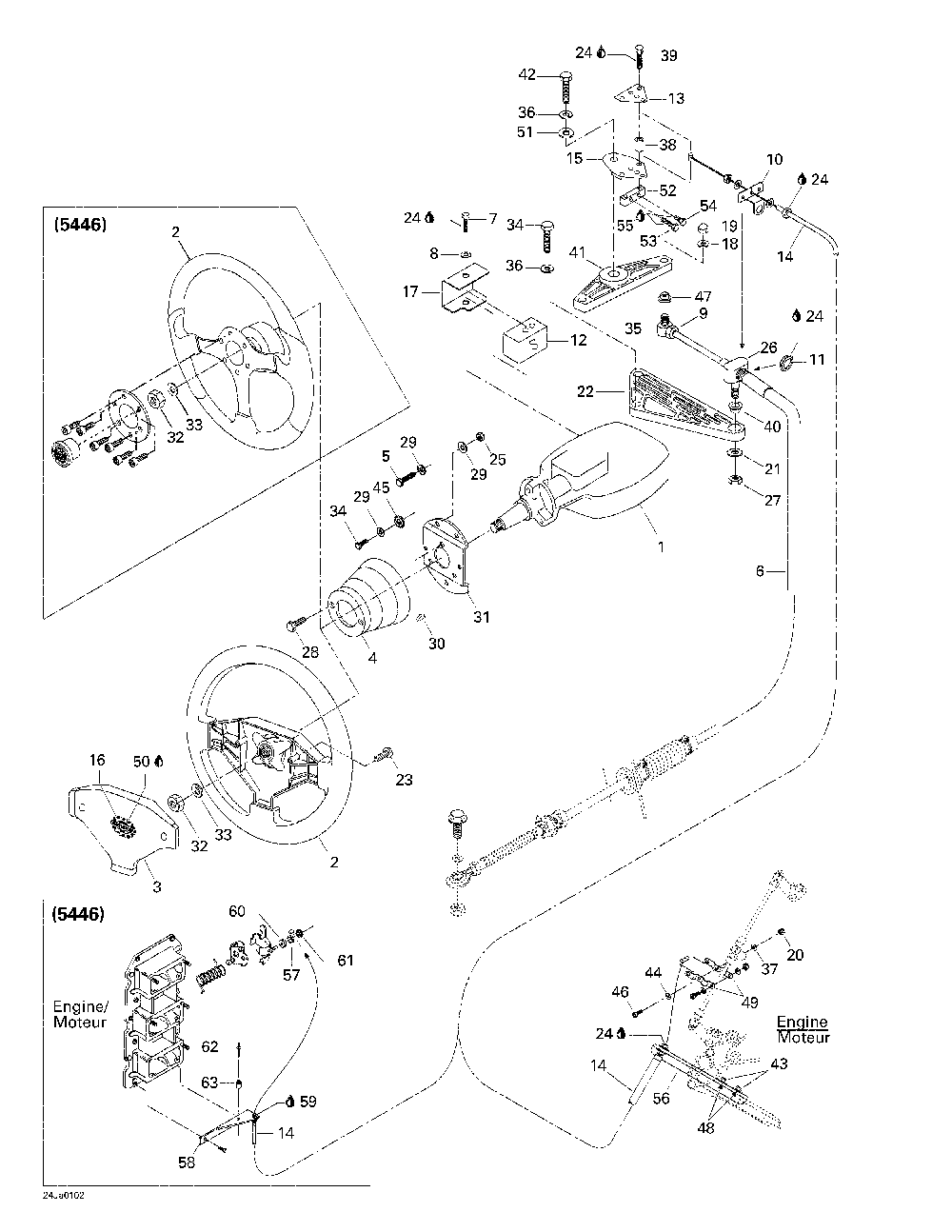

Рулевая система

Sea-Doo (Bombardier) Challenger 1800, 5446 (240 EFI)
Sea-Doo (Bombardier)
#oem кодцена
204390170
Volant Direct.*wheel-steer.assy. Challenger 1800 (5446).
1
204390244
Gouvernail Ass.*helm-assy.
2
204390440
Volant Direct.*wheel-steering/blk. Challenger 1800 (5445).
4
204390030
Collier Noir *collar-black
5
207163060
Винт
6
204390212
Cable Direct. *cable-steering
7
204100014
"screw-hex 1/4""-20 X 2 1/2"" Ss-304"
8
234062600
Шайба
9
277000439
Ecrou 5/16-24 *nut-5/16-24
12
204390246
Butee Gouvern. *bumper-helm
13
204390267
Att.sup.cable *clip-upper
14
204390236
Cable Controle *cable-l.s.c.
16
219902468
Brp Logo 48 Mm Challenger 1800 (5445).
17
204390245
Sup.butee Gouv.*support-helm Bumper
18
211200019
Washer-flat 1/4 Ss-316
19
212000005
Nut-stop Elastic Ms-17830
20
232551600
Nut-stop Elastic Din.985a2 Challenger 1800 (5445).
21
234001600
Шайба
22
277000458
Support Cable *support-cable
23
241642060
Screw-pt.flange Pan Hd.k40 X 20 Challenger 1800 (5445).
24
293800060
Фиксатор резьбы loctite-243
25
232561600
Гайка стопорная эластичная 985-A2
26
277000461
Pivot 3/8 *pivot-3/8
27
211100024
Nut-locking
28
204390059
Vis Fil.coupant*screw-thread
29
234061600
Шайба
30
277000384
Шпонка
31
277000383
Supp.gouvernail*supp-helm
32
211100021
Nut-locking
33
211200006
Washer-flat Stlss 1/2
34
211000050
Screw-hex.s.grip #2353 Yellow
35
277000456
Pivot Teleflex *pivot-teleflex
36
211200025
"rondelle Frein *washer-lock 1/4"""
37
234051600
Washer-flat Din.125a-a2 Challenger 1800 (5445).
38
277000584
Втулка
39
207162560
Винт
40
293350014
Douille Epaul. *flange Bushing
41
204390040
Bras *arm
42
211000054
Screw-hex.s.grip #2353 Yellow
43
207151260
Screw-hex.cap Din.933a2 Challenger 1800 (5445).
44
234151601
Washer-lock Helical Din.127b-a2 Challenger 1800 (5445).
45
234461608
Washer-lock Serrated Din.6798a-a2
46
205051660
Screw-socket Hd.din.912a2 Challenger 1800 (5445).
47
293350012
Втулка
50
413705800
Loctite 414 *loctite-414 Challenger 1800 (5445).
51
204390057
Втулка
52
204390056
Bloc Ajustement*block-adjustment
53
207153560
Винт
54
207152560
Винт
57
204390180
Anneau Retenue *ring-retaining Challenger 1800 (5446).
60
204390268
Attache Cable *attach-cable/lsc Challenger 1800 (5446).
61
204390269
Couvre Cable *cover-cable/lsc Challenger 1800 (5446).
62
293150006
Rivet-pop 1/8 *rivet-pop 1/8 Challenger 1800 (5446).
