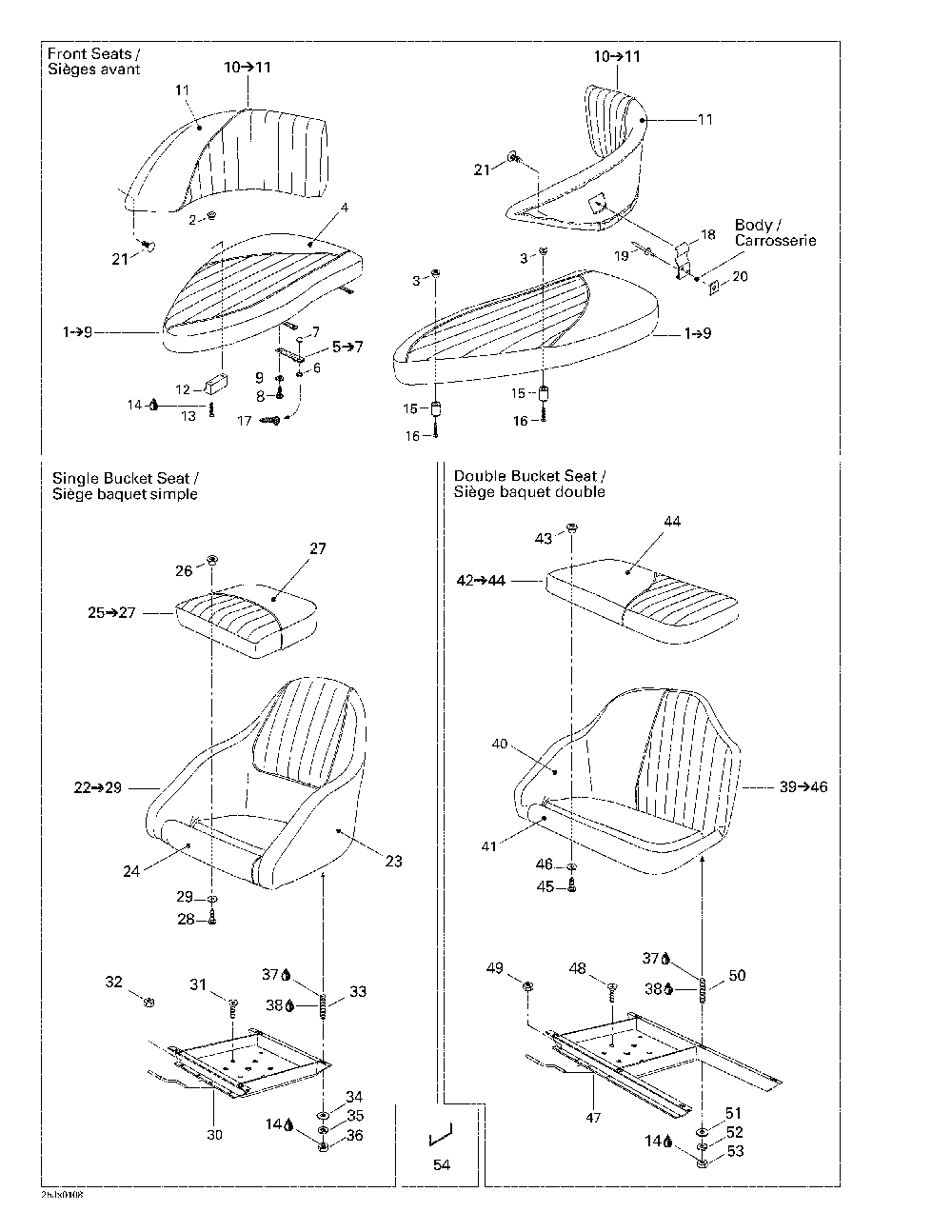

09- front

Sea-Doo (Bombardier) Utopia, 240 EFI
Sea-Doo (Bombardier)
#oem кодцена
3
204100044
Tee-nut 3-prong 10-32/ss
6
204000083
Att.press.base *snap-base
7
204611609
Att.press.couv.*snap-cover
8
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
9
211200019
Washer-flat 1/4 Ss-316
13
204100039
"screw-ctsk.fl.hd.ph. 1/4x20x2"""
14
293800060
Фиксатор резьбы loctite-243
15
204071720
Butoir Caout.*bumper-rubber
16
204100075
"screw-rd.hd.ph. 10-32 X 1 1/4"""
19
293150043
Заклепка 3/16
21
293730014
Пистон черный
26
204100021
Tee-nut 4-prong 1/4x20-ss
28
204100014
"screw-hex 1/4""-20 X 2 1/2"" Ss-304"
29
234082600
Шайба
30
204611603
Base Pivotant *base-swivel/seat
31
208463560
Screw-ctsk.fl.hd.ph.din.965a-a2
32
212000005
Nut-stop Elastic Ms-17830
33
204100077
"stud-threaded 1/4""-20 X 1 1/4"" Ss"
34
234061600
Шайба
35
234161601
Шайба Din.127b-a2
36
211100026
Nut-hexagonal 1/4-20
37
293800041
Appret Loctite *primer-loctite
38
293800005
Смазка Loctite 271
39
204611626
Siege Baquet*seat-bucket Assy. Includes 39 - 46.
47
204611749
Base Pivotant *base-swivel/port
