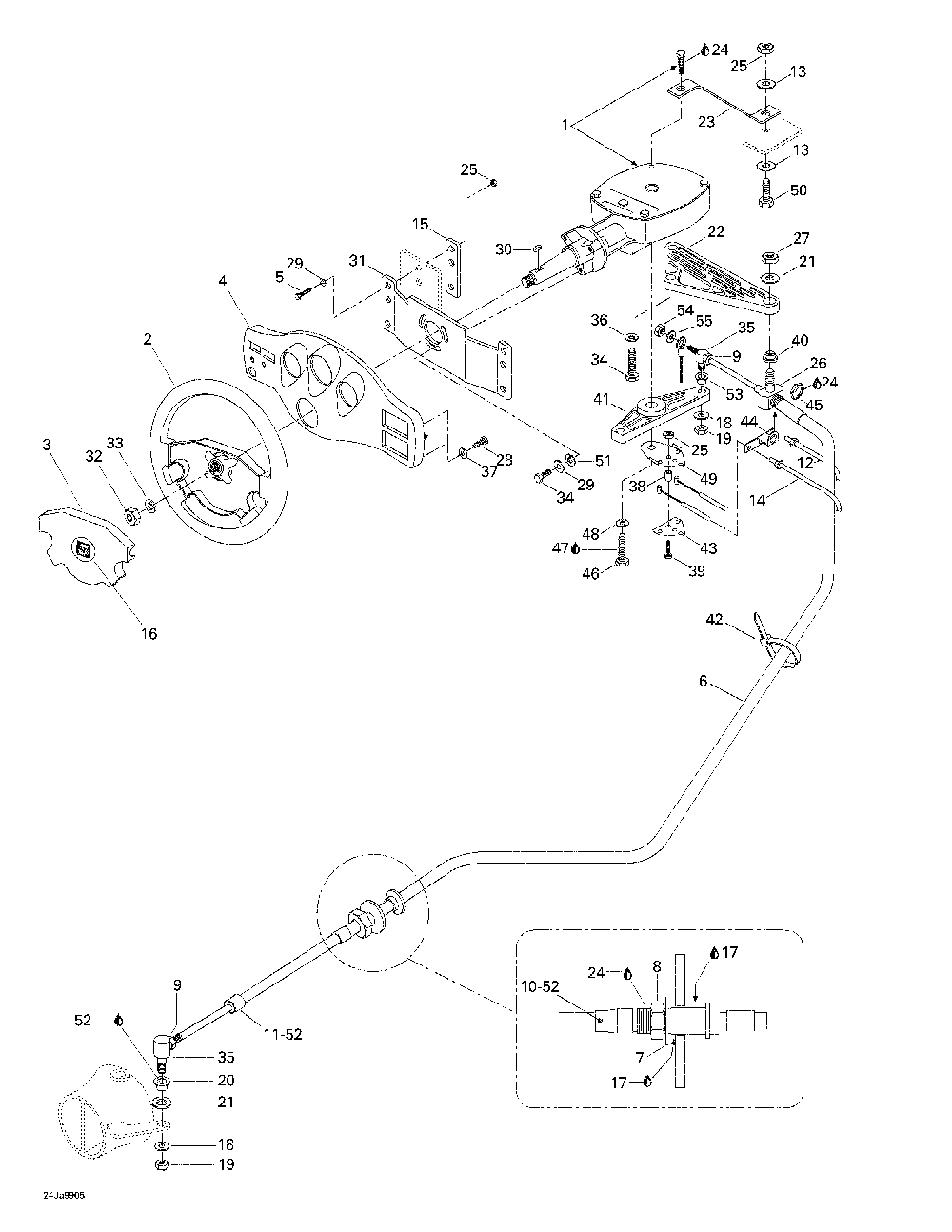

Рулевая система

Sea-Doo (Bombardier) Speedster SK, 5677/5681
Sea-Doo (Bombardier)
#oem кодцена
204390149
Centre Volant *center-steering
1
204390003
Gouvernail Ass.*helm-assy.
2
204390440
Volant Direct.*wheel-steering/blk.
5
207163060
Винт
6
204390145
Cable Direct. *cable-steering Includes 6 - 9.
9
277000439
Ecrou 5/16-24 *nut-5/16-24
10
277000440
Env.etanche *swivel-seal
11
277000441
Racleur *wiper-terminal
12
204390077
Cable Accelerat*cable-rh.
13
234062600
Шайба
14
204390078
Cable Accelerat*cable-lh.
15
204390130
Plaque Renfort *plate-reinf.
16
219902468
Логотип 48мм BRP
18
211200019
Washer-flat 1/4 Ss-316
19
212000005
Nut-stop Elastic Ms-17830
20
204390134
Douille-buse A1*sleeve-nozzle A1
21
234001600
Шайба
22
204390125
Support Cable *support-cable
25
232561600
Гайка стопорная эластичная 985-A2
26
277000461
Pivot 3/8 *pivot-3/8
27
211100024
Nut-locking
28
241142560
Screw-pt.hex.flange K40 X 25
29
234061600
Шайба
30
277000384
Шпонка
33
211200006
Washer-flat Stlss 1/2
34
211000050
Screw-hex.s.grip #2353 Yellow
35
277000456
Pivot Teleflex *pivot-teleflex
36
211200025
"rondelle Frein *washer-lock 1/4"""
37
234042600
Шайба
38
277000584
Втулка
39
207162060
Винт
40
293350014
Douille Epaul. *flange Bushing
43
204390267
Att.sup.cable *clip-upper
44
204390035
Support Cable *support-cable
45
204390053
Nut-hex.jam
46
211000054
Screw-hex.s.grip #2353 Yellow
47
293800005
Смазка Loctite 271
51
234461608
Washer-lock Serrated Din.6798a-a2
52
293550010
Graisse Synth. *grease-synth.
53
293350012
Втулка
55
234080600
Шайба DIN.433A2 (отпуск.по 10 шт)
