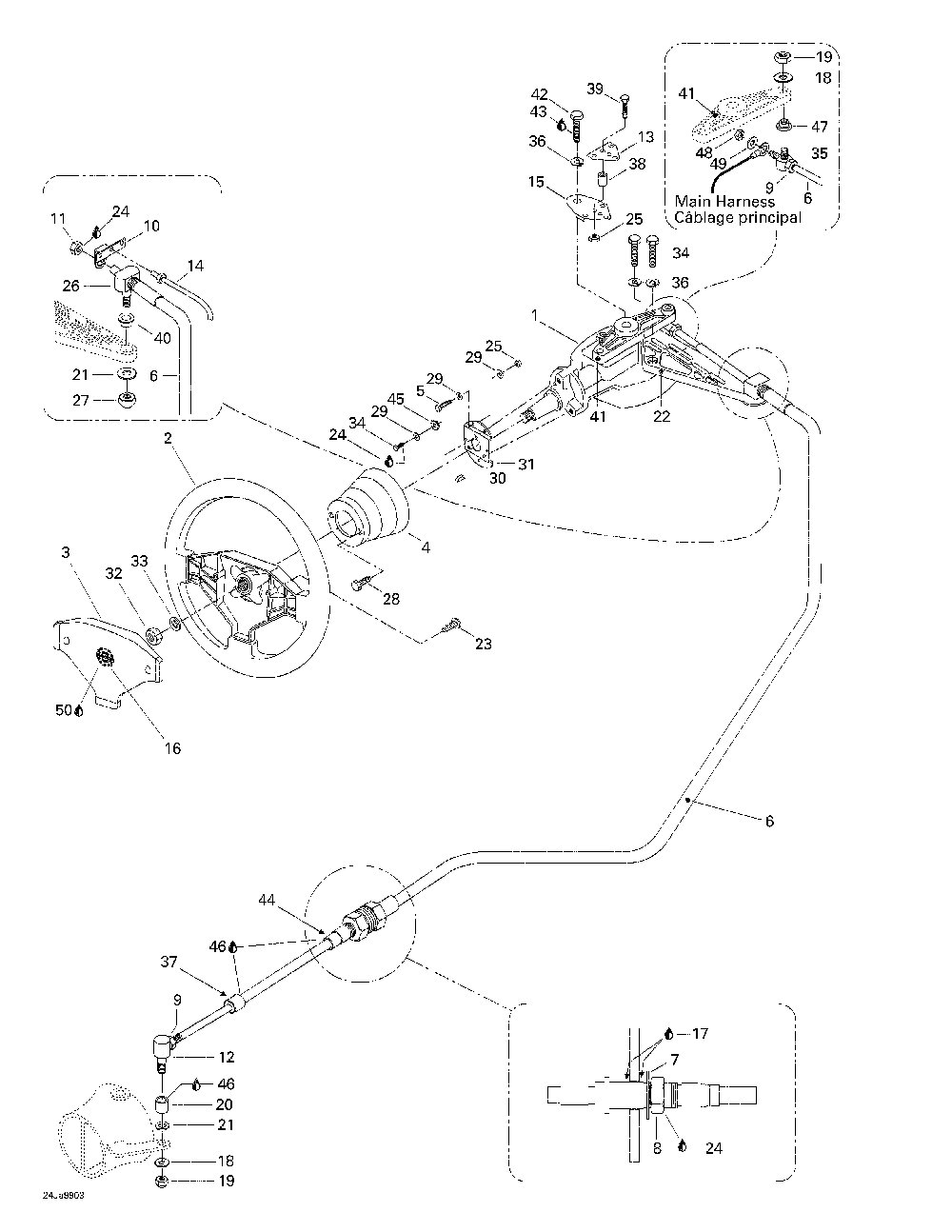

Рулевая система

Sea-Doo (Bombardier) Sportster 1800, 5676/5680
Sea-Doo (Bombardier)
#oem кодцена
1
204390003
Gouvernail Ass.*helm-assy.
2
204390440
Volant Direct.*wheel-steering/blk.
5
207163060
Винт
6
204390144
Cable Direct. *cable-steering Includes 6 - 9.
9
277000439
Ecrou 5/16-24 *nut-5/16-24
10
204390035
Support Cable *support-cable
11
204390053
Nut-hex.jam
12
277000456
Pivot Teleflex *pivot-teleflex
13
204390267
Att.sup.cable *clip-upper
14
204390083
Cable Accelerat*cable-throttle-rh
18
211200019
Washer-flat 1/4 Ss-316
19
212000005
Nut-stop Elastic Ms-17830
20
204390134
Douille-buse A1*sleeve-nozzle A1
21
234001600
Шайба
22
277000458
Support Cable *support-cable
23
241642060
Screw-pt.flange Pan Hd.k40 X 20
24
293800060
Фиксатор резьбы loctite-243
25
232561600
Гайка стопорная эластичная 985-A2
26
277000461
Pivot 3/8 *pivot-3/8
27
211100024
Nut-locking
28
204390059
Vis Fil.coupant*screw-thread
29
234061600
Шайба
30
277000384
Шпонка
31
277000383
Supp.gouvernail*supp-helm
32
211100021
Nut-locking
33
211200006
Washer-flat Stlss 1/2
34
211000050
Screw-hex.s.grip #2353 Yellow
36
211200025
"rondelle Frein *washer-lock 1/4"""
37
277000441
Racleur *wiper-terminal
38
277000584
Втулка
39
207162060
Винт
40
293350014
Douille Epaul. *flange Bushing
41
204390040
Bras *arm
42
211000054
Screw-hex.s.grip #2353 Yellow
43
293800005
Смазка Loctite 271
44
277000440
Env.etanche *swivel-seal
45
234461608
Washer-lock Serrated Din.6798a-a2
46
293550010
Graisse Synth. *grease-synth.
47
293350012
Втулка
50
413705800
Loctite 414 *loctite-414
