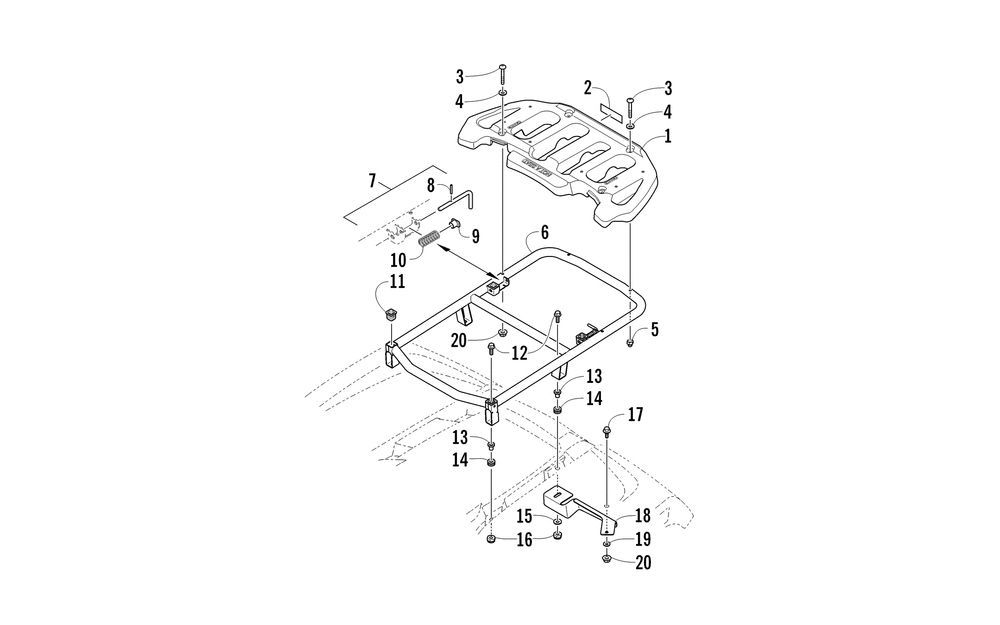

Задний багажник

Arctic Cat 700 Cruiser PS

Задний багажник

#

oem код

название

цена

1

Rack, Rear-trv Assy (inc. 2)

Rack, Rear-trv Assy (inc. 2)

2

Decal, Warning-rack(50 Lb.)

Decal, Warning-rack(50 Lb.)

3

Screw, Cap-hfh M6x1.0x40 Cl8.8 Rie Blk

Screw, Cap-hfh M6x1.0x40 Cl8.8 Rie Blk

4

Washer, Flat (std) 1/4 Dia Blk

Washer, Flat (std) 1/4 Dia Blk

5

Nut, Hex Domed-self Locking-m6x1.0

Nut, Hex Domed-self Locking-m6x1.0

6

Rack, Rear Frame-assy (inc. 7-11)

Rack, Rear Frame-assy (inc. 7-11)

7

Pin, Mrp-assy (inc. 8-10)

Pin, Mrp-assy (inc. 8-10)

8

Pin, Roll-2.5mm

Pin, Roll-2.5mm

9

Collar, Seat Latch

Collar, Seat Latch

10

Spring, Mrp Latch

Spring, Mrp Latch

11

Bushing, Rack Frame

Bushing, Rack Frame

12

Screw, Cap-hfh M8x1.25x35 Cl8.8 Rie Blk

Screw, Cap-hfh M8x1.25x35 Cl8.8 Rie Blk

13

Spacer, Steel

Spacer, Steel

14

Grommet, Rubber-12.7x23.8125

Grommet, Rubber-12.7x23.8125

15

Шайба

Шайба

16

Гайка M8x1.25

Гайка M8x1.25

17

Screw, Shoulder-hfh M6-1.0 X 18 Cl8.8 Blk

Screw, Shoulder-hfh M6-1.0 X 18 Cl8.8 Blk

18

Bracket, Rear Fender Support-rh-painted

Bracket, Rear Fender Support-rh-painted

18

Bracket, Rear Fender Support-lh-painted

Bracket, Rear Fender Support-lh-painted

19

Шайба 1/4 X .734 X .063

Шайба 1/4 X .734 X .063

20

Гайка м6

Гайка м6
