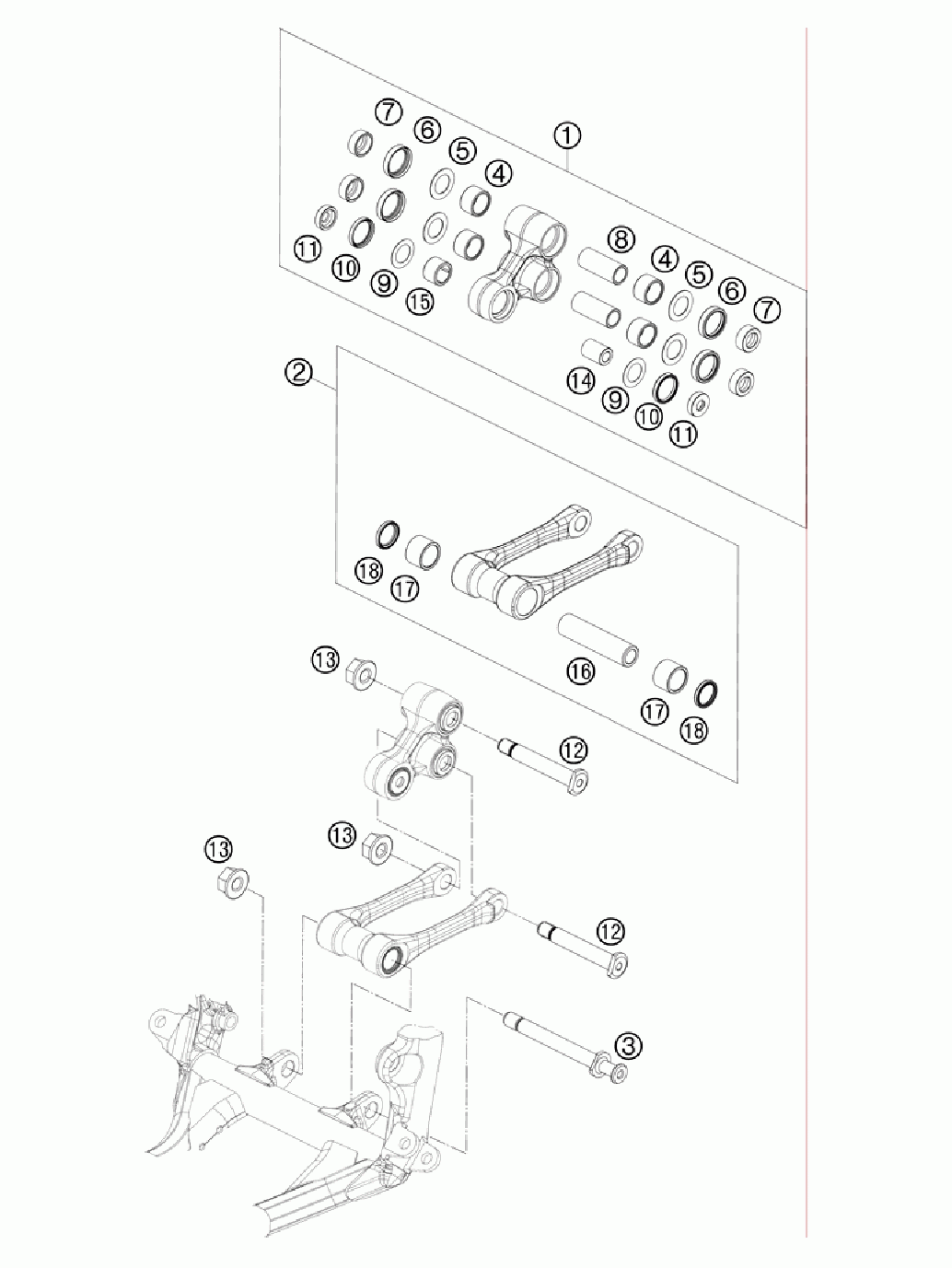

Соединение рычагов

KTM 450 SX-F CHASSIS
KTM
#oem кодцена
1*
7720408004401
Triangle Lever Cpl.
2*
7720408304401
Pull Rod Cpl.
3*
77204084000
Pull Rod Anchor Bolt
4*
54603097000
Needle Bush Hk 2016
5*
59033080000
Shim 20x32x1
6*
0760253270
Shaft Seal Ring 25x32x7
7*
77204080030
Bucket For Shaft Seal Ring
8*
54603081000
Bushing Sleeve 15 X 20 X 48
9*
50180604
Shim D29, 75 X D19 X T0, 4 08
10*
0760243050
Shaft Seal Ring 24x30x5
11*
77204080020
Bucket For Shaft Seal Ring
12*
77204085100
Bolt For Cantilever M14
13*
54603015000
Self Locking Nut M14x1, 5 Ws=19
14*
77204080010
Bearing Sleeve 10x18x25, 5
15*
0618182416
Needle Bush Hn1816 Rs 18/24/16
16*
77204084010
Bearing Sleeve
17*
0618222820
Needle Bearing Hk2220 22x28x20
18*
0760222841
Shaft Seal Ring G22x28x4
