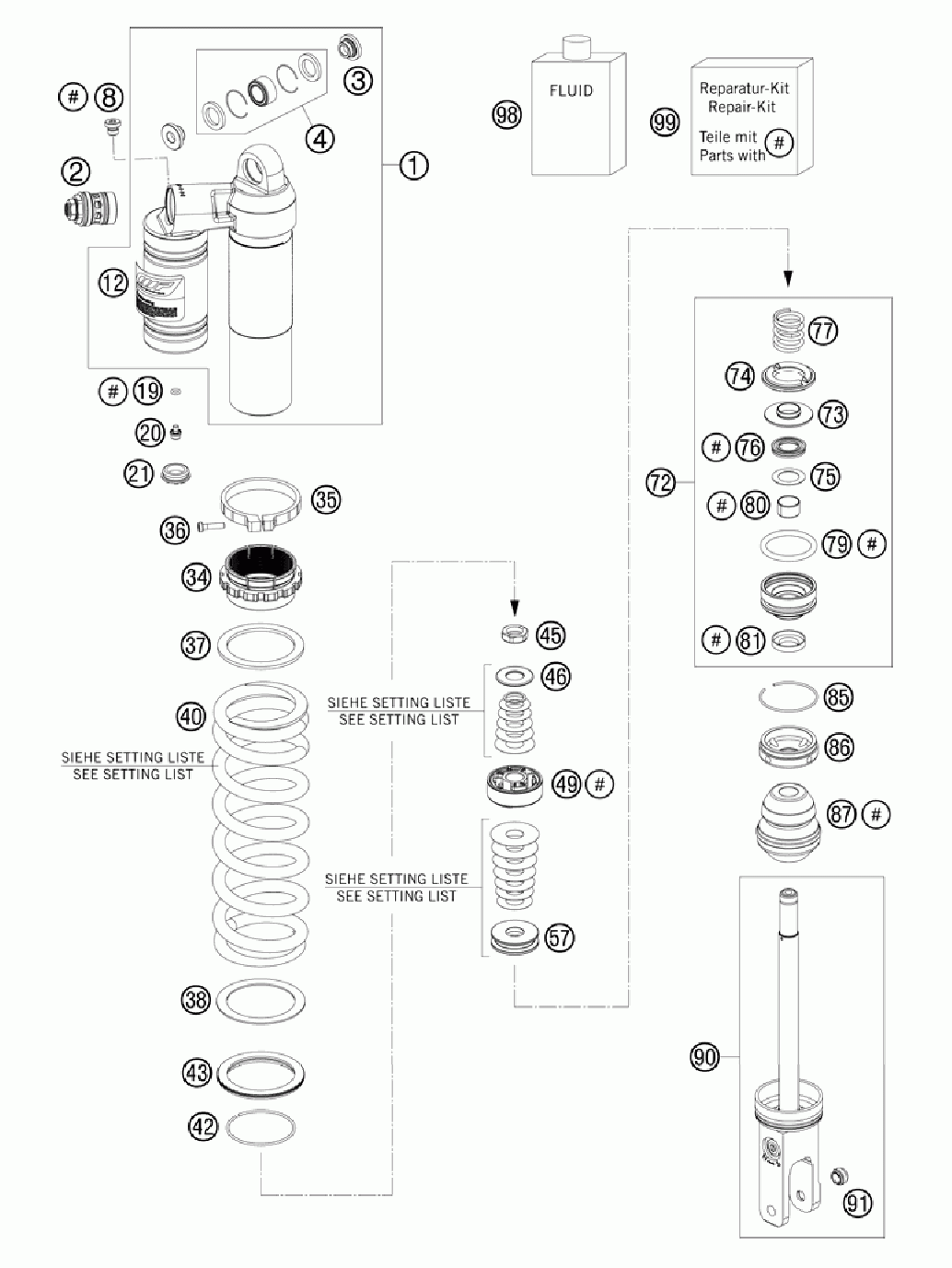

Амортизатор в разборе

KTM 450 SX-F CHASSIS
KTM
#oem кодцена
4
R12012
Rep. Kit Bear./seal Up. 07
8
50180095
Bleed Plug R 1/8
1*
50180944S1
Monoshock Upper Part Cpl.
19
46810893
O-ring Nbr 5, 28x1, 78
2*
50180213S13
Dcc-compr.damp.control Cpl. 10
20
36120151
Screw Plug M5x6
21
46811208
Rubber Cap "do Not Open"
3*
46180010
Bush Kgw 10x24
42
50180273
Circlip 58, 2x2
75
50180604
Shim D29, 75 X D19 X T0, 4 08
76
50180605S
Seal D18x30x5 08
79
50180103
O-ring 41x5
80
46180119
Du-bush 18x20x12
81
50180606
Dust Seal 1828 08
85
50180126
Circlip 53x1, 75
86
50180626
Reservoir Cap D=50 H=10 09
12*
52000087
Sticker Wp Monoshock
34*
50180938
Adjusting Nut Plastic
35*
50180937
Tensioning Ring D64 H10
36*
14460042
Allenhead Screw M5 L=20 Stainl
37*
50180965
Spacer Ring Spring 61, 3x78x3
38*
50180793
Spacer Ring Adjusting Nut
43*
50180824
Valve Spring D80 Closed
45*
50180141
Piston Rod Nut M16x1
49*
50180786S
Piston D50
72*
50180603SA
Adapter D50 H28 Cpl.
73*
50180800
Spring Ring
74*
50180798
Rebound Rubber
77*
50180780
Rebound Spring
87*
50180775
Bump Rubber
90*
50180773S1
Monoshock Bottom Part Cpl.
91*
46811205
Adaptor-bush M10x1,50, D=15
98*
50180751S1
Shock Absorber Fluid 5 Lt
99*
R12018
Repair-kit
