КОЛЕНЧАТЫЙ ВАЛ Запчасти для квадроциклов ATV Suzuki LT-A400F KingQuad 400AS 4x4 Auto (2009)

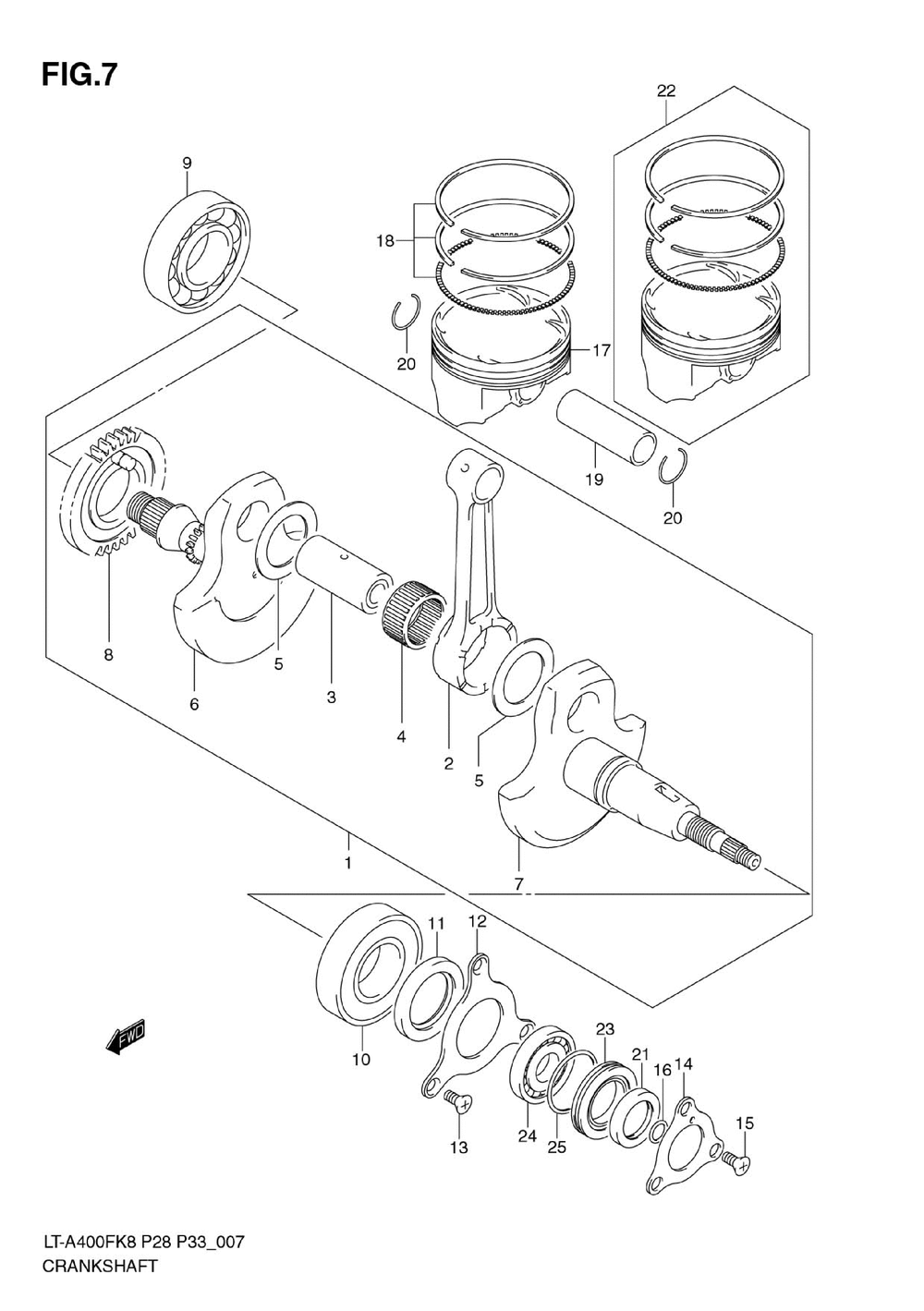

КОЛЕНЧАТЫЙ ВАЛ

Suzuki LT-A400F KingQuad 400AS 4x4 Auto

oem код

название

цена

Crankshaft Set ( )

.rod, Connecting ( )

.pin, Crank ( )

.bearing (34x43x22) ( )

09160-34003

.washer (34x52x1) ( )

12220-38F12

.crankshaft Comp, R ( )

12260-38F10

.crankshaft, Lh ( )

12661-38F01

.gear, Crank Balancer Drive ( )

09262-35038

Bearing (35x72x17) ( )

09262-35067

.bearing, Crankshaft Lower ( )

09282-34001

Seal, Oil ( )

12541-38F00

Retainer, Crankshaft Oil Seal ( Middle )

09126-06011

Screw, Drive Shaft (6x12) ( )

12541-46510

Retainer, Oil Seal Lh ( Lh )

09280-12009

O Ring, Crankcase ( )

12111-38F21-0F0

Piston ( )

12140-38F10

Ring Set, Piston (std) ( )

12151-24A00

Pin, Piston ( )

09381-20004

Circlip ( )

09283-25094

Oil Seal (25x36x6) ( )

12100-38F21-050

Piston Set (os:0.5) (opt )

12359-44D20

Spacer ( )

09262-25006

Bearing (25x47x8) ( )

09280-44007

O Ring (d:2.4, Id:44.0) ( )

09126-06011

Screw, 6x12 ( )
