Редуктор задний Запчасти для квадроциклов ATV Suzuki LT-A400F KingQuad 400AS 4x4 Auto (2009)

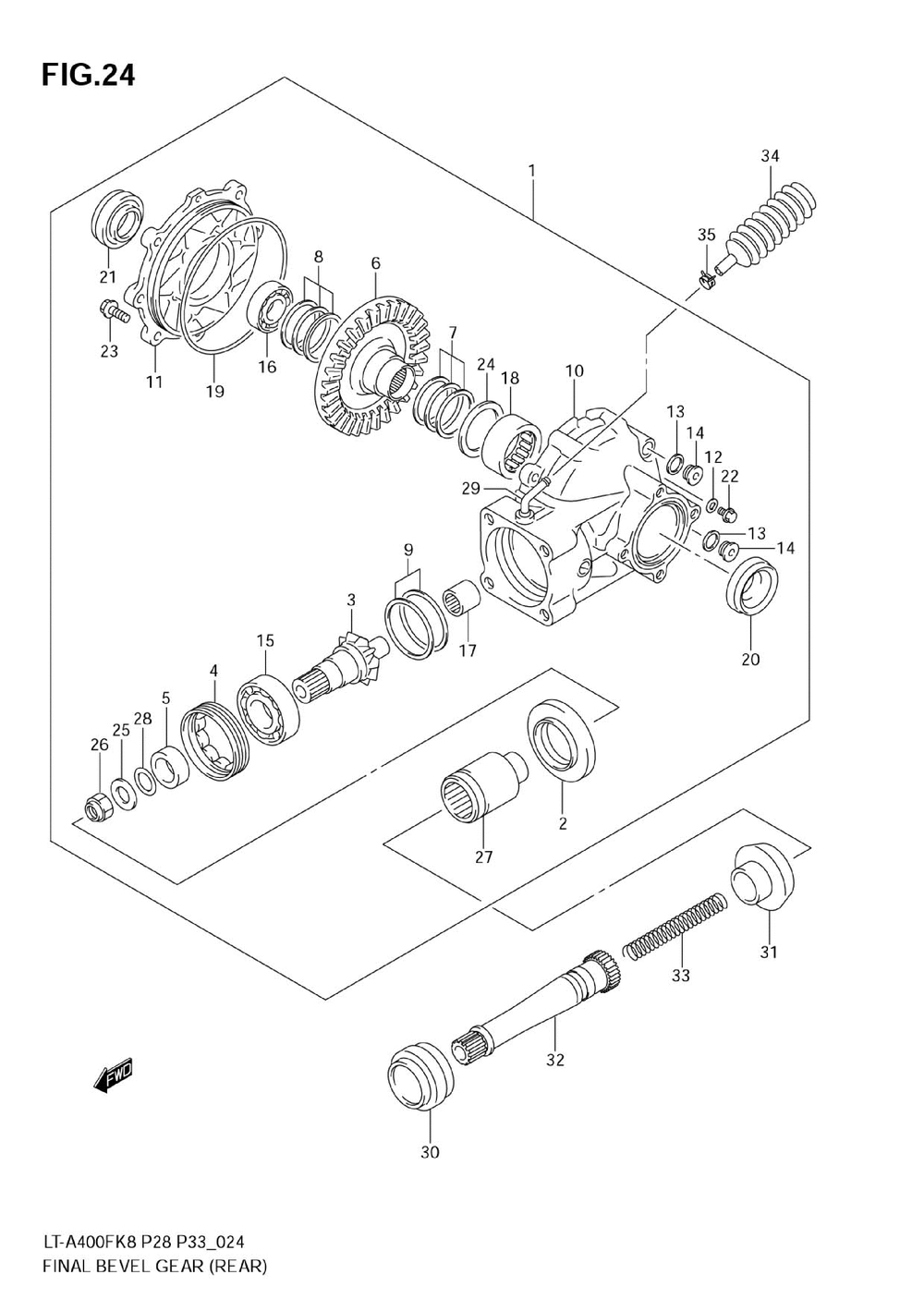

Редуктор задний

Suzuki LT-A400F KingQuad 400AS 4x4 Auto

oem код

название

цена

Case Assy, Rr Fi ( )

Provisional ( )

Gear, Fnl Drvn B ( )

.stopper, Final Drive ( )

27316-38FM0

.spacer, Rear Final Drive ( )

27321-27HM0

Gear, Fnl Drvn B ( )

27326-09810

.shim Set, Final Driven Lh (t:0.30/0.35/0.40 0.50/0.60 )

27326-18810

.shim Set, Final Driven Rh (t:0.30/0.35/0.40 0.50/0.60 )

27445-24810

.shim Set, Final Drive Gear (t:0.30/0.35/0.40 0.50/0.60 )

27450-27HM0

Case, Rr Final D ( )

27461-38FM0

.case, Rear Final Driven Rh ( )

09168-06018

Gasket, Tensioner Adjuster (6.2x13x1.2 )

09168-16002

Gasket (16x22x2.0) (16x22x2.0 )

09248-16012

Plug, T/m Breather ( )

27405-38FN0

.bearing, Final Drive Gear ( )

27405-38FP0

.bearing, Final Driven Rh ( )

27405-38FR0

.bearing, Final Drive Pilot ( )

27405-38FS0

.bearing, Final Driven Lh ( )

27405-38FT0

.o Ring, Bearing Case Rh ( )

09283-38009

Seal, Final Driven Gear Oil L ( )

09283-42011

.oil Seal, Final Driven Rh ( )

27401-38FM0

.bolt, Oil Check ( )

27401-38FN0

.bolt, Rear Final Gear ( )

27407-38FN0

.washer, Final Driven Lh ( )

09160-16026

Washer, Fr Drive Output Yoke ( )

09159-16003

Nut, Sec Driven Bevel Couplin ( )

27171-27HM0

Coupling, Rr Fin ( )

27405-27HM0

O-ring, Coupling ( )

09364-08009

..union, Breather ( )

Boot, Rear Prop ( )

Boot, Joint Shaf ( )

Shaft, Rear Prop ( )

Spring, Rear Propeller ( )

27491-38F00

Case, Breather ( )

09401-08411

Clip ( )
