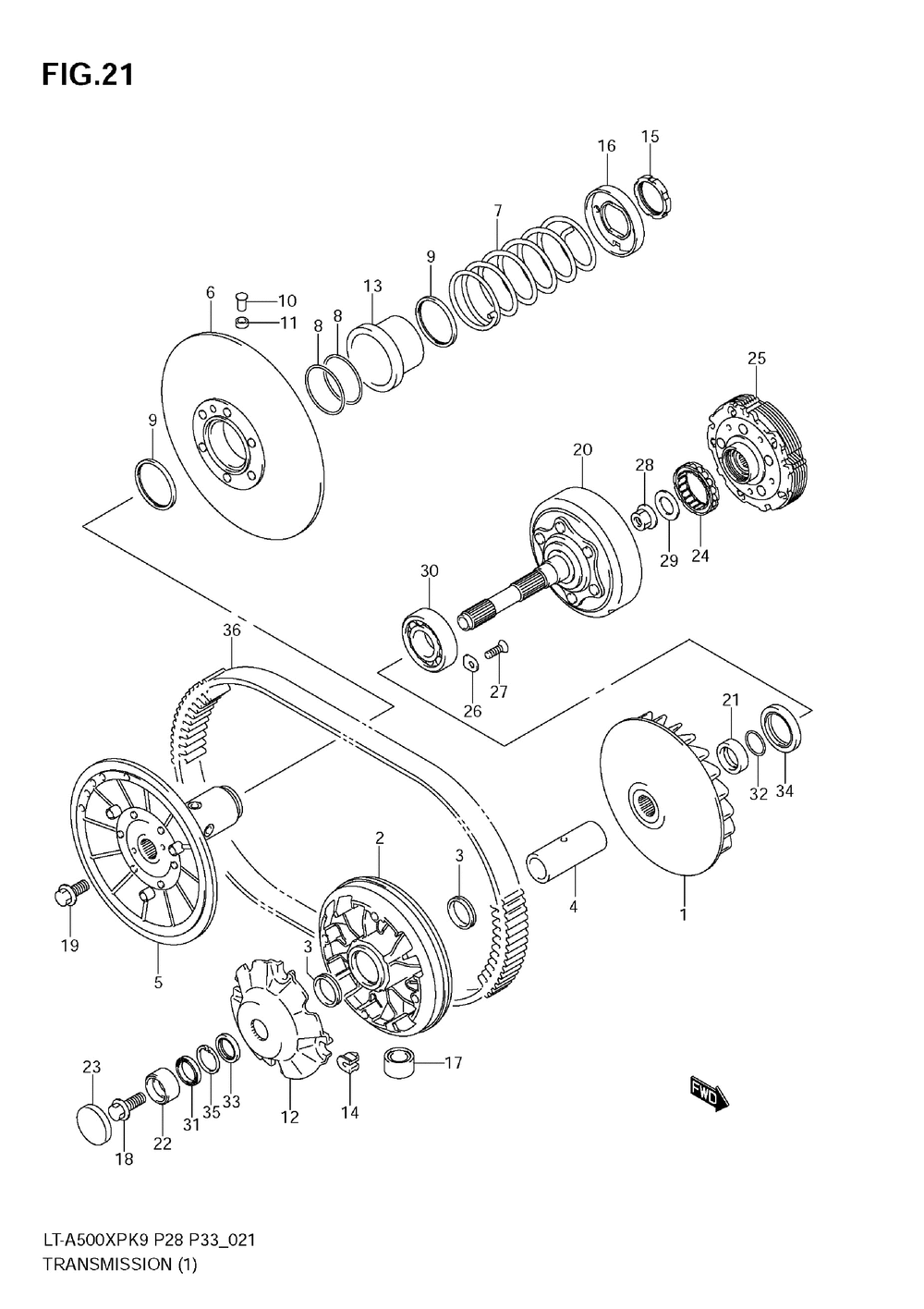

Трансмиссия 1

Suzuki LT-A500XP KINGQUAD 500AXi
Suzuki
#oem кодцена
1
21110-11H00
Face, Fixed Driv
2
21120-11H00
Face, Movable Dr
3
21124-15F00
Seal, Movable Drive
4
21125-11H50
Space, Movable
5
21210-11H00
Face, Fixed Driv
6
21240-11H00
Face, Movable Dr
7
21243-38F01
Spring, Movable Driven
8
21245-38F00
O-ring, Movable Driven
9
21247-38F00
Seal, Movable Driven
10
21248-15F01
Pin, Movable Driven
11
21249-15F00
Spacer, Movable Driven Pin
12
21431-11H00
Plate, Movable D
13
21471-38F01
Sheet, Movable Driven
14
21481-14F00
Damper, Movable Drive Plate
15
21518-38F00
Nut, Driven Pulley Spring
16
21519-38F00
Holder, Movable Driven
17
21650-31G00
Roller, Movable Driven
18
09103-12028
Bolt, Magneto Rotor
19
09103-12049
Bolt (12x25)
20
21100-11H00
Housing, Clutch
21
21102-31G00
Spacer, Drive Shaft
22
21106-31G10
Spacer, Clutch H
23
21107-31G00
Cap, V-belt Bearing
24
21273-44D00
Clutch, Pri Drive One Way
25
21500-11H10
Clutch Assy, Sho
26
24741-20A00
Обойма подшипника
27
09126-06011
Screw, Drive Shaft (6x12)
28
09159-18023
Гайка
29
09164-18004
Шайба
30
09262-25073
Bearing (25x62x17) (28x62x17)
31
09262-35075
Bearing, Clutch Housing, R (30x47x7)
32
09280-25004
Кольцо (d:2.4, Id:24.7)
33
09283-35051
Сальник (35x47x5)
34
09283-38025
Сальник (38x56x7)
35
08331-41479
Circlip, Clutch Housing
36
27601-11H00
V-belt, Drive
