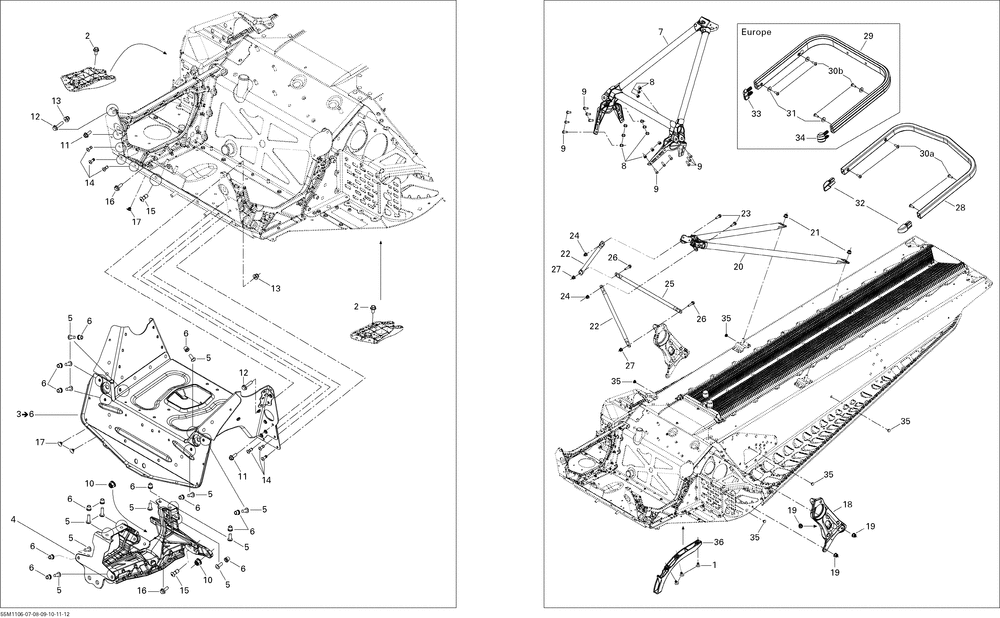

Рама

Ski-Doo (Bombardier) Renegade BackCountry, BackCountry X 800R ETEC
Ski-Doo (Bombardier)
#oem кодцена
1
293150108
Заклепка 3/16
2
207561244
Винт
3
518325924
Module S *cross Member (includes 3 To 6 )
4
518325925
Суппорт
5
207662044
Винт
6
233261414
Гайка
7
518326555
Membrure Av *member-front
10
233281414
Гайка
11
210261680
Винт
12
207662544
Винт
14
293150191
Monobolt 4.8 *monobolt 4.8
15
293150182
Monobolt 6.4 X *monobolt 6.4
16
207661644
Винт
17
293730042
Dard 5-6 *dart 5-6
18
518326192
Support Poulie *pulley Support
20
518326559
Membrure Arr *member-rear
22
518325114
Support Colonne*support
24
233261416
Гайка
25
518325115
Support Colonne*upper Column
28
518324980
Pare-choc *rear Bumper (backcountry )
28
518325481
Pare-choc *rear Bumper (backcountry X )
29
518326414
Pare-choc *rear Bumper (backcountry X Europe )
31
224061201
Washer-flat (backcountry X Europe )
32
520000567
Capuchon *cap (backcountry )
32
520000840
Capuchon *cap (backcountry X )
33
520000965
Capuchon Droit *rh.cap (backcountry X Europe )
34
520000964
Capuchon Gauche*lh.cap (backcountry X Europe )
35
293730041
Dard 8 Mm *dart 8 Mm (backcountry )
35
293730047
Dard 8 Mm *dart 8 Mm (backcountry X )
36
518326973
Protecteur Av. *front Protect.
30a
250000402
Torx-truss M/s Gm6047m N.patch M6 X 18 (backcountry )
8
233261414
Гайка
9
207662044
Винт
13
233261414
Гайка
19
233281414
Гайка
21
233281414
Гайка
23
207662044
Винт
26
207662544
Винт
27
233261414
Гайка
30b
250000402
Torx-truss M/s Gm6047m N.patch M6 X 18 (backcountry X Europe )
