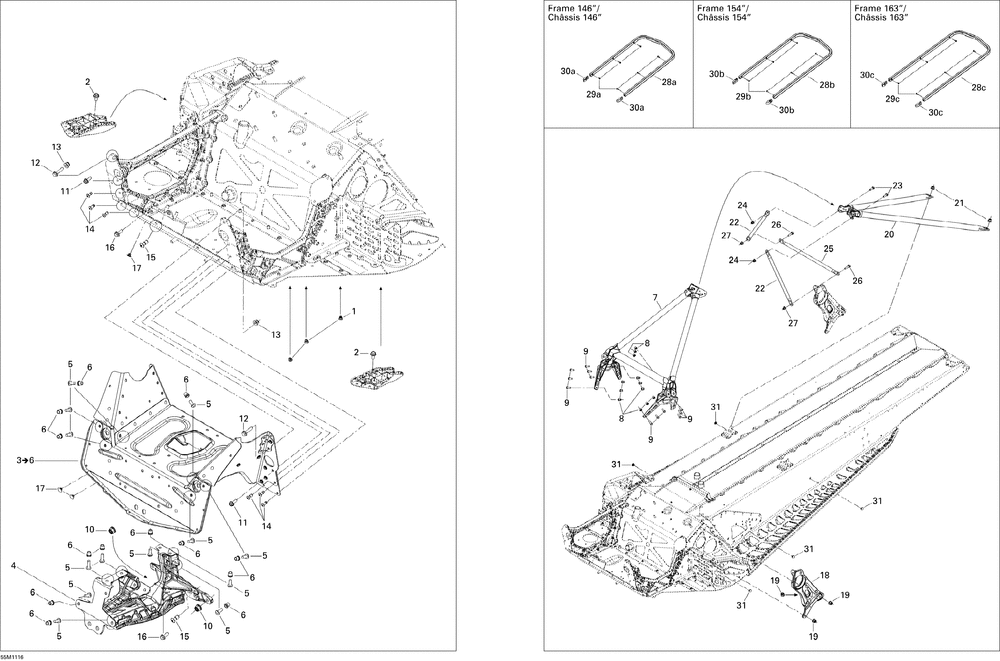

Рама

Ski-Doo (Bombardier) Summit X 800R E-TEC
Ski-Doo (Bombardier)
#oem кодцена
1
390402400
Заклепка 3/16
2
207561244
Винт
3
518325924
Module S *cross Member (includes 3 To 6 )
4
518325925
Суппорт
5
207662044
Винт
6
233261414
Гайка
7
518326555
Membrure Av *member-front
10
233281414
Гайка
11
210261680
Винт
12
207662544
Винт
14
293150191
Monobolt 4.8 *monobolt 4.8
15
293150182
Monobolt 6.4 X *monobolt 6.4
16
207661644
Винт
17
293730042
Dard 5-6 *dart 5-6
18
518326192
Support Poulie *pulley Support
20
518326559
Membrure Arr *member-rear
22
518325114
Support Colonne*support
24
233261416
Гайка
25
518325115
Support Colonne*upper Column
31
293730047
Dard 8 Mm *dart 8 Mm
28a
518326599
Pare-choc *rear Bumper (track 146" )
28b
518326049
Pare-chocs *rear Bumper (track 154" )
28c
518326600
Pare-chocs *rear Bumper (track 163" )
29a
250000402
Torx-truss M/s Gm6047m N.patch M6 X 18 (track 146" )
30a
520000840
Capuchon *cap (track 146" )
8
233261414
Гайка
9
207662044
Винт
13
233261414
Гайка
19
233281414
Гайка
21
233281414
Гайка
23
207662044
Винт
26
207662544
Винт
27
233261414
Гайка
29b
250000402
Torx-truss M/s Gm6047m N.patch M6 X 18 (track 154" )
29c
250000402
Torx-truss M/s Gm6047m N.patch M6 X 18 (track 163" )
30b
520000840
Capuchon *cap (track 154" )
30c
520000840
Capuchon *cap (track 163" )
