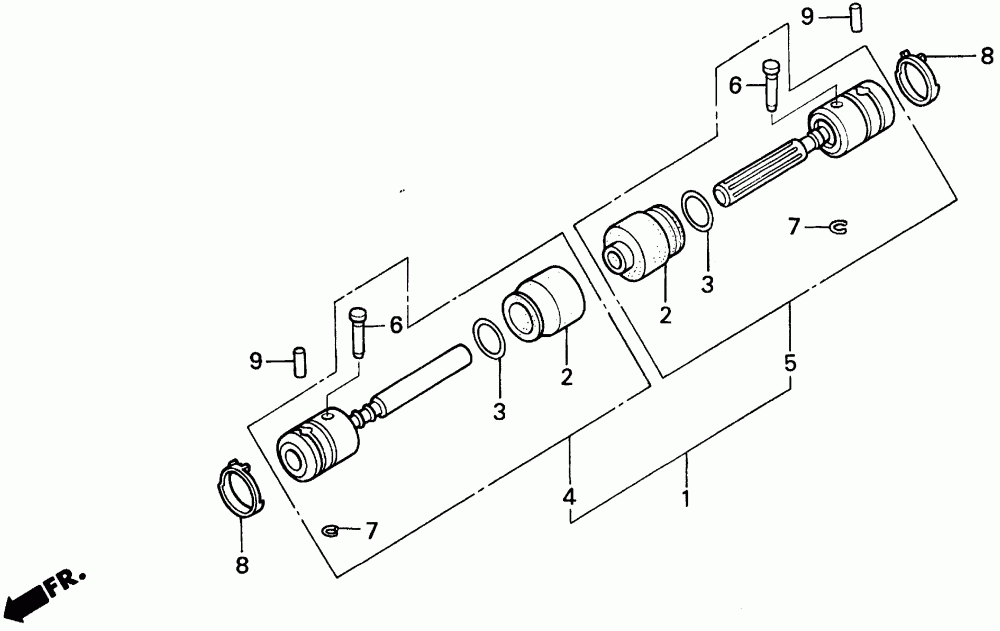

Joint - Sxa, Hxa, Sda

Honda HRC216K1 HXA LAWN MOWER, USA, VIN# MZAN-6100001 TO MZAN-6176480
Honda
#oem кодцена
1
22100-VB3-803
SEE PART DETAILS - SUP; JOINT ASSY.
1
22100-VB3-805
SEE PART DETAILS - PRI; JOINT ASSY.
2
22123-VB5-801
BOOT, JOINT
3
22127-VB5-801
Кольцо уплотнительное
4
22150-VB3-803
JOINT SUB-ASSY. (A)
4
22150-VB3-804
SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
4
22150-VB3-805
SEE PART DETAILS - PRI; JOINT SUB-ASSY. (A)
5
22160-VB3-803
SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
5
22160-VB3-805
SEE PART DETAILS - PRI; JOINT SUB-ASSY. (B)
8
90651-VD6-901
SEE PART DETAILS - PRI; CLIP, CLUTCH SHAFT
8
90651-VD6-900
SEE PART DETAILS - SUP; CLIP, CLUTCH SHAFT
9
96220-40178
ROLLER (4X17.8)
