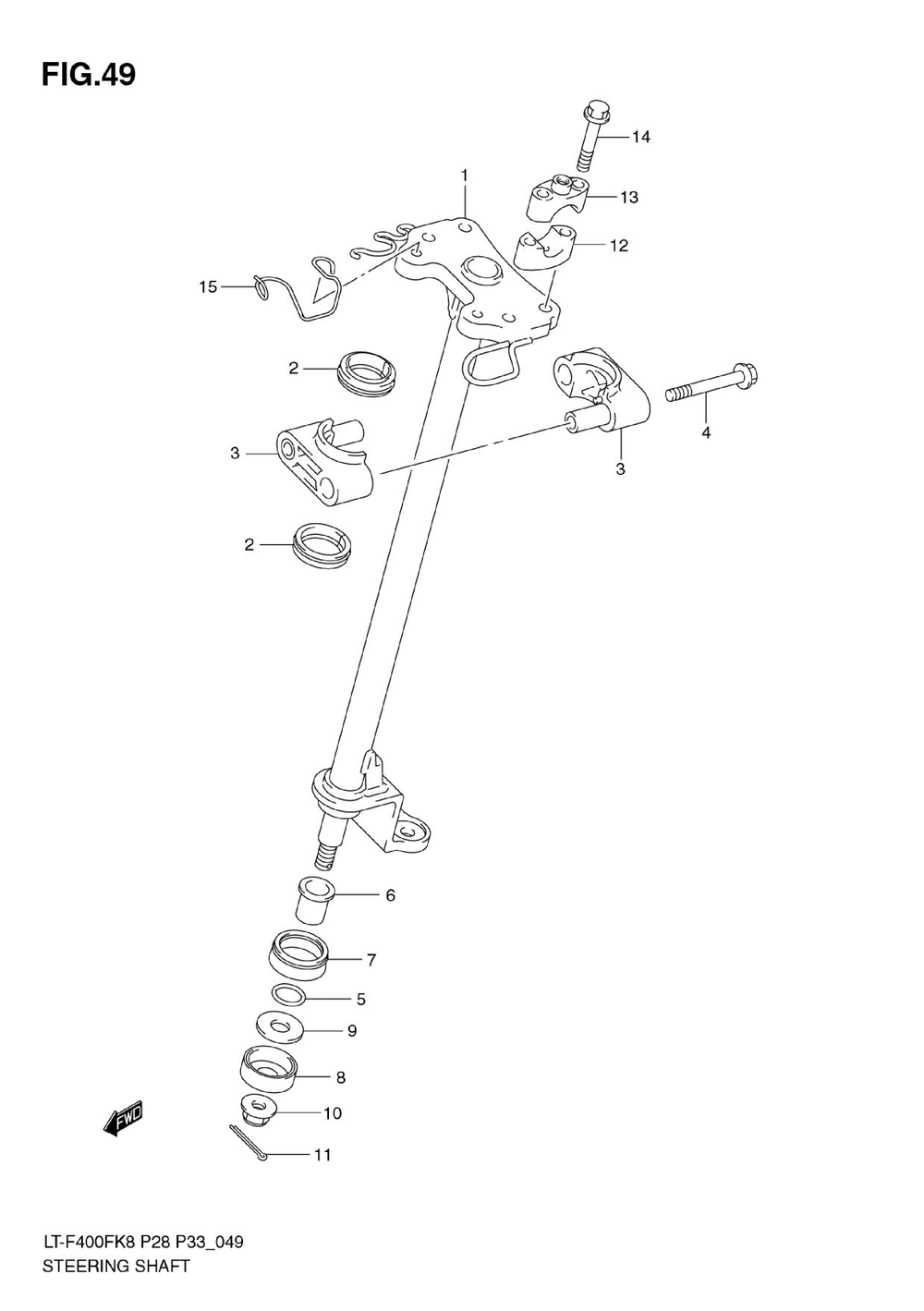

Рулевой вал

Suzuki LT-F400F KingQuad 400FS 4x4

Рулевой вал

#

oem код

название

цена

1

Shaft, Steering ( )

Shaft, Steering ( )

2

Dust Seal, Steering Holder ( (27x38x8.5) )

Dust Seal, Steering Holder ( (27x38x8.5) )

3

Holder, Steering Shaft ( )

Holder, Steering Shaft ( )

4

Bolt ( )

Bolt ( )

5

O Ring, Oil Filler Cap ( )

O Ring, Oil Filler Cap ( )

6

Bush, Steering Shaft Lower ( (17x26x36.9) )

Bush, Steering Shaft Lower ( (17x26x36.9) )

7

Dust Seal, Steering Shaft ( (30x40x16) )

Dust Seal, Steering Shaft ( (30x40x16) )

8

Dust Seal, Steering Lower ( )

Dust Seal, Steering Lower ( )

9

Washer ( )

Washer ( )

10

Nut ( )

Nut ( )

11

Cotter Pin ( )

Cotter Pin ( )

12

56211-21G00-291

Holder, Handlebar ( )

Holder, Handlebar ( )

13

56211-29900-291

Clamp, Handlebar Upper (black ( )

Clamp, Handlebar Upper (black ( )

14

Bolt ( )

Bolt ( )

15

Guide, Fr Brake Hose No.1 ( )

Guide, Fr Brake Hose No.1 ( )
