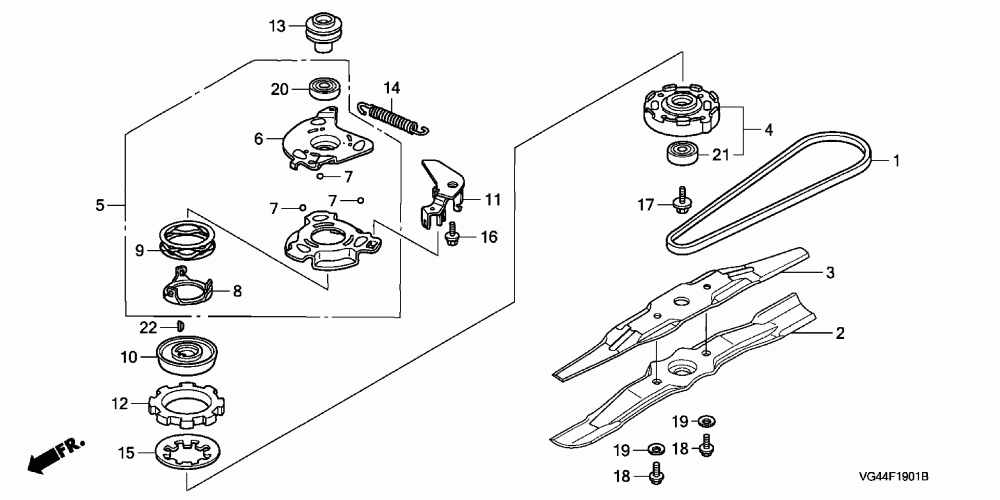

Rotary Blade (2)

Honda HRR216K4 VXA LAWN MOWER, USA, VIN# MZCG-7700001 TO MZCG-7799999
Honda
#oem кодцена
1
22431-VL0-B00
V-BELT (3L-37)
2
72511-VE1-020
SEE PART DETAILS - PRI; BLADE, ROTARY
3
72531-VE2-020
SEE PART DETAILS - PRI; BLADE, ROTARY (UPPER)
4
72600-VE1-G00
HOLDER ASSY., BLADE
5
75110-VE1-R00
PLATE ASSY., BALL CONTROL
6
75111-VE1-G01
PLATE, BALL CONTROL
7
75117-VE1-G00
BALL, STEEL
8
75127-VE1-G00
PLATE, SPRING HOOK
9
75132-VE1-G00
SPRING, BALL PLATE
10
75141-VE1-G00
DISK, DRIVE
11
75140-VL0-B00
HOOK, RETURN SPRING
12
75150-VE1-G02
DISK, DRIVEN
13
75162-Z0L-000
PULLEY, DRIVE
14
75185-VE1-G00
SEE PART DETAILS - PRI; SPRING ASSY., CLUTCH RETURN
15
75183-VE1-G01
Пружина
16
90014-952-000
BOLT, FLANGE (6X14) (CT200)
17
90101-VE1-G00
BOLT, FLANGE (10X24)
18
90105-960-710
BOLT, HEX. (10X20)
19
90502-VG3-000
WASHER, SPRING (10MM)
20
91051-VE1-G00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6006)
20
91051-VE1-R00
SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6006)
21
91052-VE1-G00
BEARING, RADIAL BALL (6204)
22
94401-16150
KEY, WOODRUFF (16X15)
