Bh6575 - Main Frame Assembly Запчасти для садовых тракторов Honda BH6575 A LAWN TRACTOR, USA (Все)

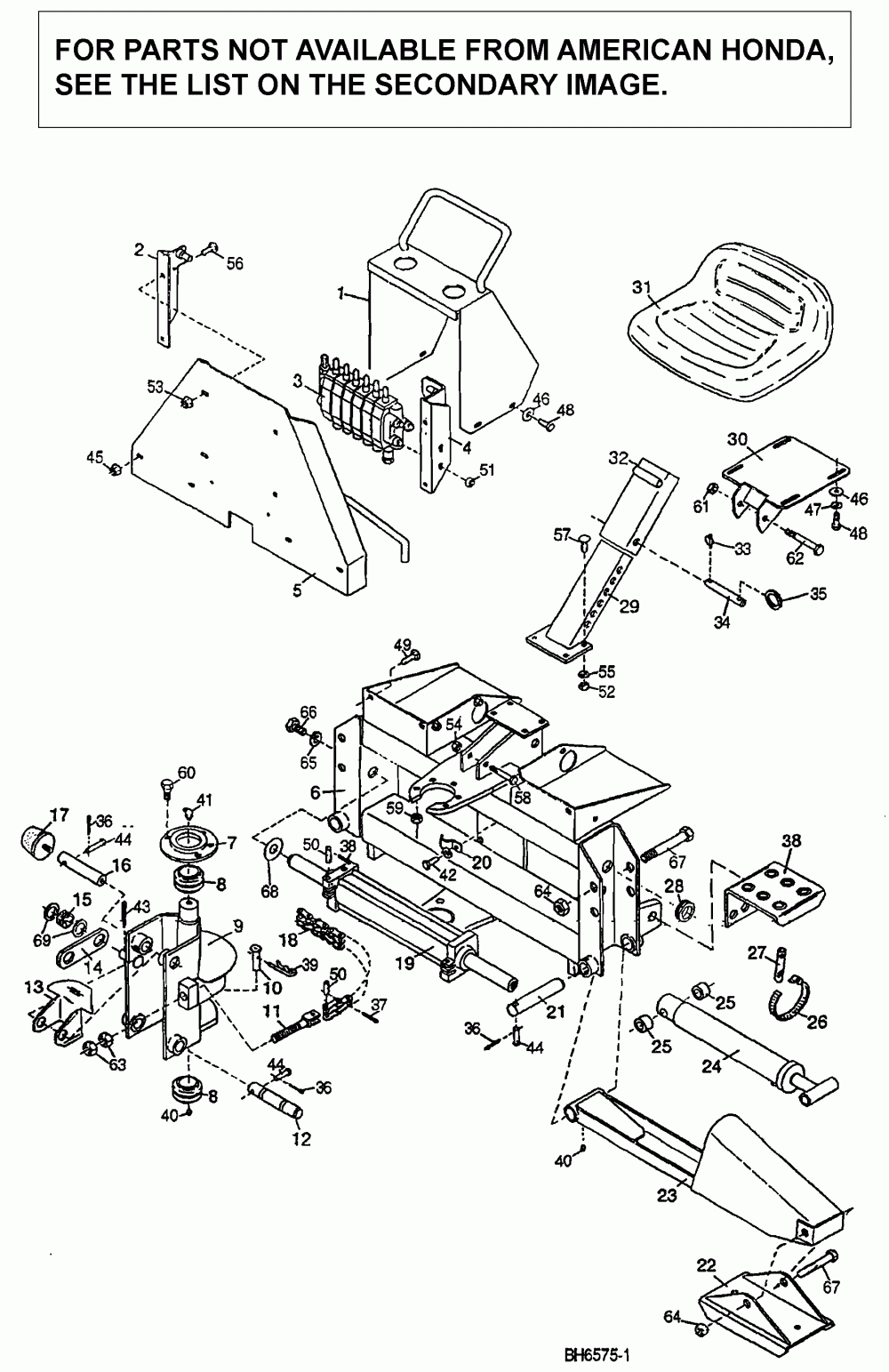

Bh6575 - Main Frame Assembly

Honda BH6575 A LAWN TRACTOR, USA

oem код

название

цена

72995-1086

LABEL SET

72995-1015

COVER, CONSOLE

72995-1003

BRACKET ASSY., R. VALVE

72995-1056

VALVE, CONSOLE

72995-1004

BRACKET ASSY., L. VALVE

72995-1042

FRAME ASSY., MAIN

72995-1080

CAP ASSY., KINGPOST

72995-1083

BUSHING, BALL (1-1/2)

72995-1036

WELDMENT ASSY., KINGPOST

BOLT, CHAIN TENSION

GUIDE, HOSE

PLATE, LATCH

SPRING, COMPRESSION (.072X.62)

PIN, PIVOT

PAD ASSY., BUMPER

CHAIN, SWING

CYLINDER, SWING

Хомут

PIN, PIVOT

PAD ASSY., STABILIZER

72995-1066

CYLINDER, STABILIZER

72995-1076

BUSHING (13/16X1-1/4X1")

72995-1058

Хомут

72995-1072

SHIELD, HOSE PROTECTOR

72995-1089

GROMMET (.25X1.0X1.38")

72995-1045

SUPPORT, SEAT (LOWER)

72995-1071

BRACKET ASSY., SEAT

72995-1059

Седло

72995-1044

SUPPORT, SEAT (UPPER)

72995-1052

RING, SPLIT (.11X1.1) (OD)
