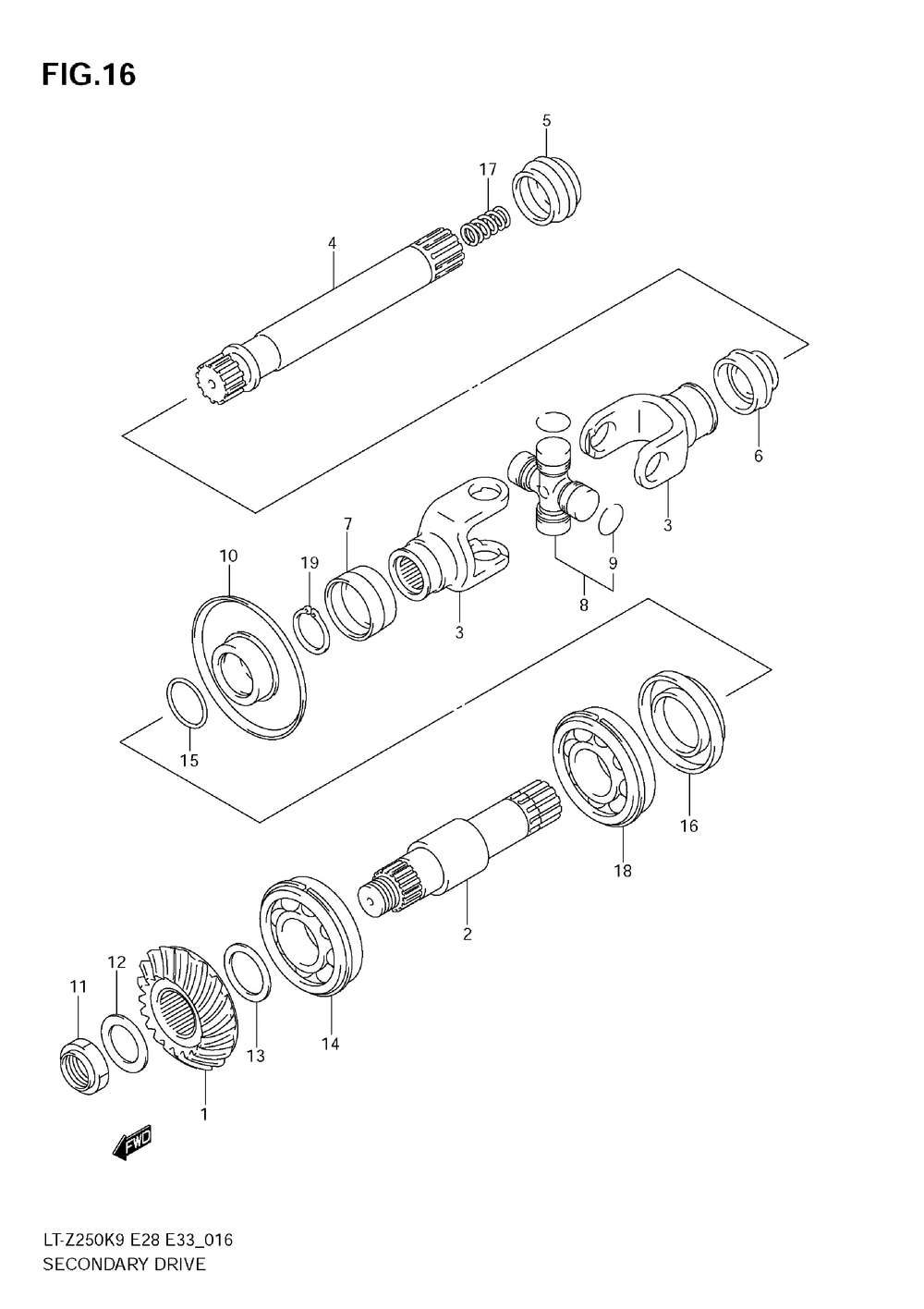

Secondary drive

Suzuki LT-Z250 QuadSport Z250

Secondary drive

#

oem код

название

цена

1

Gear, Sec Driven Bevel (nt:17)

Gear, Sec Driven Bevel (nt:17)

2

Shaft, Sec Driven Output Rr

Shaft, Sec Driven Output Rr

3

Yoke, Rear Drive Output

Yoke, Rear Drive Output

4

Вал гребного винта

Вал гребного винта

5

Boot, Propeller Shaft

Boot, Propeller Shaft

6

Boot, Propeller Shaft

Boot, Propeller Shaft

7

Boot, Rear Output Joint

Boot, Rear Output Joint

8

Joint Set, Universal Rr

Joint Set, Universal Rr

9

.circlip

.circlip

10

Collar, Output Oil Seal

Collar, Output Oil Seal

11

Гайка

Гайка

12

Washer (20x32x1.0) (20x32x1.00)

Washer (20x32x1.0) (20x32x1.00)

13

Shim, Set, Sec Driven Gear (t:0.55/0.58/0.60/0.63 1.38/1.40 )

Shim, Set, Sec Driven Gear (t:0.55/0.58/0.60/0.63 1.38/1.40 )

14

Bearing, Secondary Rr (25x62x17)

Bearing, Secondary Rr (25x62x17)

15

O Ring (d:1.9, Id:24.5)

O Ring (d:1.9, Id:24.5)

16

Seal, Oil, 35x62x

Seal, Oil, 35x62x

17

Spring, Propeller Shaft

Spring, Propeller Shaft

18

Bearing, Secondary Rr

Bearing, Secondary Rr

19

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО
