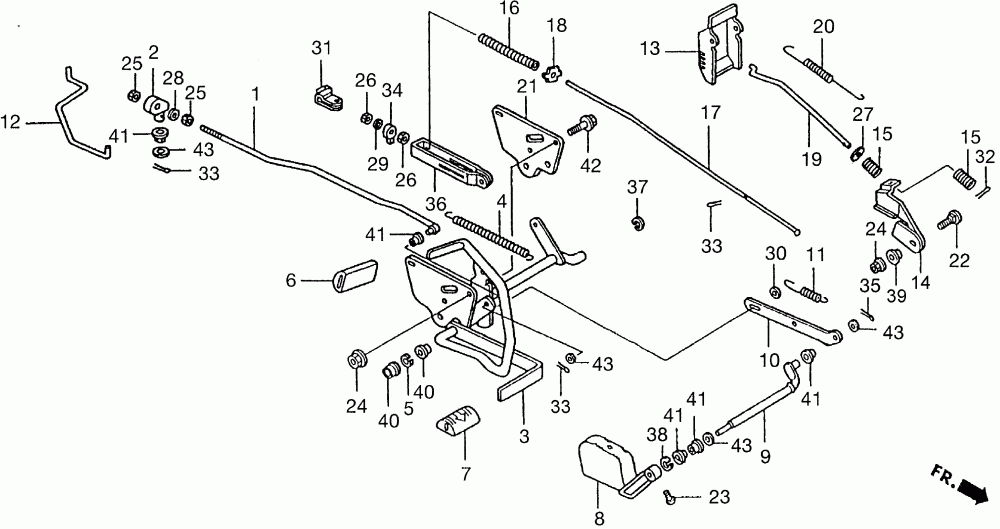

Педаль тормоза

Honda HA4118 H38A LAWN TRACTOR, USA, VIN# MZCH-6000001
Honda
#oem кодцена
1
24363-V09-A01
ROD, GEARSHIFT
2
24644-V09-A01
END, ROD
3
46510-V09-A01
PEDAL, COMBO BRAKE/FORWARD
4
46514-V09-A01
Пружина
5
46535-V09-A01
COLLAR, PEDAL
6
46545-V09-A01
RUBBER, BRAKE PEDAL
7
46546-V09-A01
RUBBER, FORWARD PEDAL
8
46710-V09-A01
PEDAL, REVERSE
9
46720-V09-A01
SHAFT, REVERSE
10
46731-V09-A01
LINK, REVERSE
11
46732-V09-A01
SPRING, REVERSE
12
46920-V09-A01
LEVER, NEUTRAL VALVE
13
47111-V09-A01
LEVER, PARKING BRAKE
14
47112-V09-A01
ARM, PARKING BRAKE
15
47143-V09-A01
SPRING, PUSH ROD
16
47251-V09-A01
SPRING, BRAKE LOAD SETTING
17
47261-V09-A01
ROD, FOOT BRAKE
18
47267-V09-A01
GUIDE, BRAKE ROD
19
47291-V09-A01
ROD, PARKING BRAKE
20
47294-V09-A01
SPRING, PARKING BRAKE RETURN
21
75131-V09-A01
Пластина тормозная
22
90108-V09-A01
BOLT, CARRIAGE (8X20)
23
90120-V09-A01
SCREW, REVERSE PEDAL SETTING
24
90301-V09-A01
Гайка
25
90318-V09-A01
Гайка (12мм)
26
90319-V09-A01
Гайка (10mm)
27
90502-V09-A01
WASHER (6.4X18X1.6)
28
90507-V09-A01
WASHER, LOCK (INNER) (1/2")
29
90508-V09-A01
WASHER, LOCK (INNER) (3/8")
30
90509-V09-A01
WASHER, REVERSE LINK
31
90652-V09-A01
CLIP, R. ROD MOUNTING
32
90751-V09-A01
PIN, COTTER (2X16)
33
90755-V09-A01
PIN, COTTER (2.5X20)
34
90756-V09-A01
PIN, CONTROL LINK
35
90757-V09-A01
PIN, COTTER (3.2X20)
36
91154-V09-A01
RETAINER, BRAKE SPRING
37
91452-V09-A01
RING, CONTROL SNAP
38
91453-V09-A01
RING, HEIGHT ADJUST PIN
39
91551-V09-A01
BUSHING, PARKING BRAKE
40
91552-V09-A01
BUSHING, FLANGED
41
91553-V09-A01
BUSHING, CONTROL
43
90506-V09-A01
WASHER, PEDAL ARM
