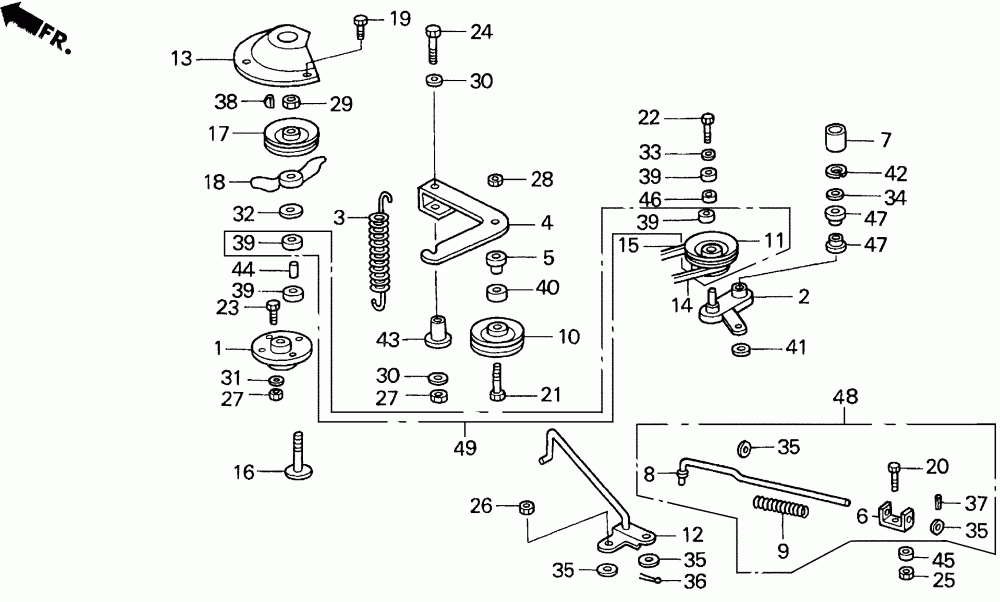

Ha4118 Blade Shaft + Blade Pulley

Honda HA4118 H38A LAWN TRACTOR, USA, VIN# MZCH-6000001
Honda
#oem кодцена
1
72711-V09-A01
Опора картера
2
76120-V09-A01
ARM, TENSION
3
76122-V09-A01
SPRING, TENSIONER ARM
4
76123-V09-A01
ARM, TENSION (DECK)
5
76124-V09-A01
COLLAR, TENSION ROLLER
7
76139-V09-D01
CAP, PIVOT
10
76130-V09-A01
ROLLER, TENSIONER
11
76140-V09-A01
SEE PART DETAILS - SUP; PULLEY, DRIVEN
12
76143-V09-A01
HANDLE, TENSION
13
76156-V09-A01
COVER, L. BELT
14
76181-V09-A01
V-BELT, BLADE
15
76182-V09-A01
V-BELT, DECK
16
76212-V09-A01
SHAFT, BLADE
17
76220-V09-A01
PULLEY, BLADE
18
76223-V09-A01
FAN, BLADE PULLEY
19
54010-V09-A01
SEE PART DETAILS - PRI; HEIGHT ADJUST SET
20
90111-V09-A01
BOLT, HEX. (8X25)
20
90101-V09-D01
BOLT, CARRIAGE (8X25)
21
90122-V09-A01
Болт (10x40)
22
90123-V09-A01
BOLT, FLANGE (10X20)
23
90125-V09-A01
BOLT, HEX. (8X30)
24
90134-V09-A01
BOLT, HEX. (8X70)
25
90301-V09-A01
Гайка
26
90302-V09-A01
NUT A, LOCK (8MM)
27
90304-V09-A01
NUT B, LOCK (8MM)
28
90310-V09-A01
SEE PART DETAILS - PRI; NUT, LOCK (10MM)
29
90315-V09-A01
NUT, LOCK (3/4"-16)
30
90522-V09-A01
WASHER, TENSIONER ARM
32
90524-V09-A01
WASHER, SPINDLE
33
90525-V09-A01
WASHER, FLAT (11X34X3)
34
90526-V09-A01
WASHER, FLAT (1.25")
35
90528-V09-A01
WASHER, FLAT (8.4X17X1.6)
36
90760-V09-A01
PIN, DRAFT ARM COTTER
37
90762-V09-A01
Палец
38
90763-V09-A01
Шпонка
39
91053-V09-A01
BEARING A, CUTTER DECK
40
91054-V09-A01
BEARING B, CUTTER DECK
41
91151-V09-A01
RETAINER, FRAME
42
91152-V09-A01
Седло
43
91554-V09-A01
BUSHING, IDLER PIVOT
44
91559-V09-A01
COLLAR, SPACER
45
91560-V09-A01
BUSHING, PIVOT IDLER
46
91562-V09-A01
COLLAR, DRIVEN PULLEY
47
91564-V09-A01
BUSHING, DRIVE
49
76013-V09-A01
SEE PART DETAILS - PRI; PULLEY SET
