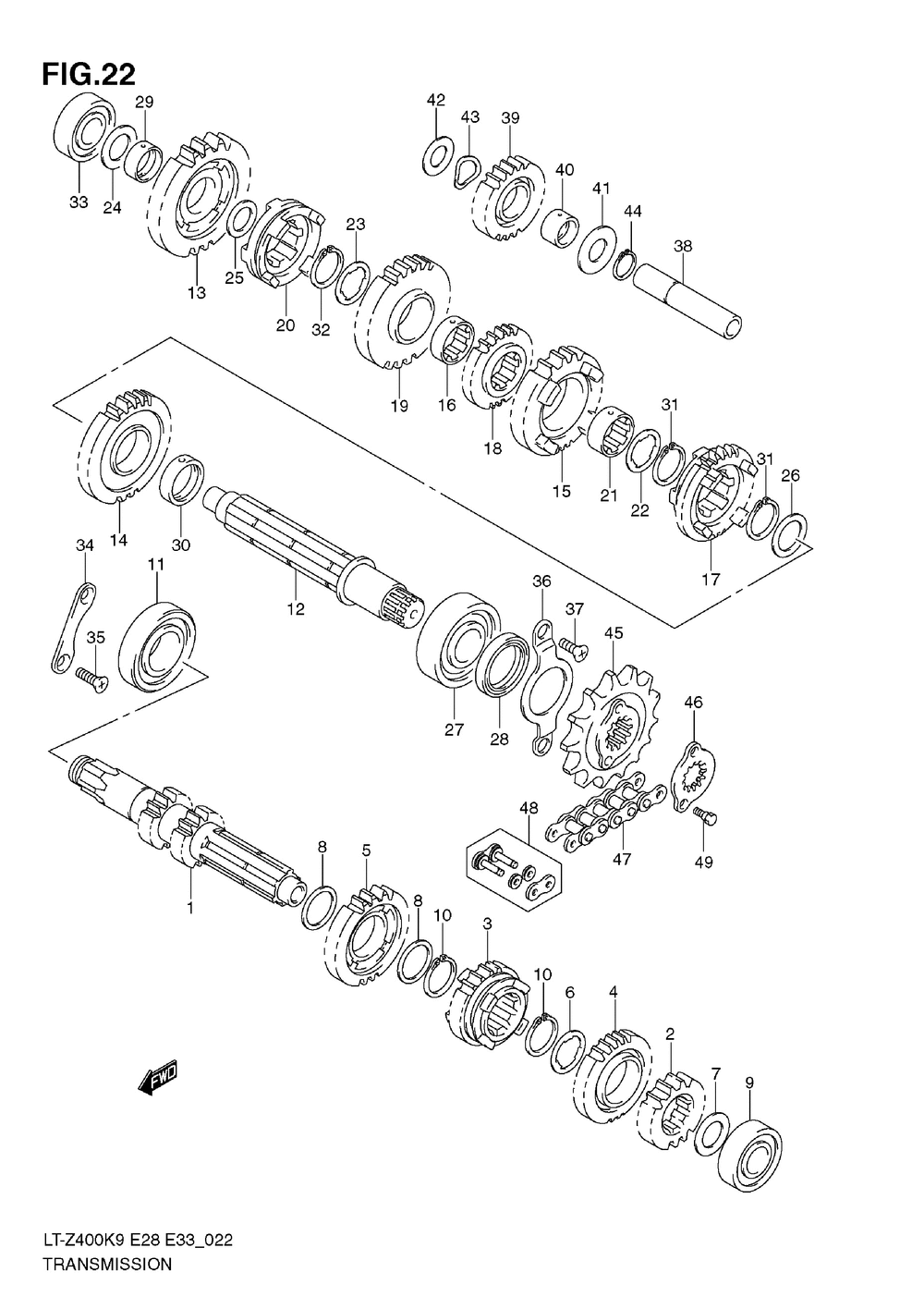

ТРАНСМИССИЯ

Suzuki LT-Z400,Z QuadSport Z400

ТРАНСМИССИЯ

#

oem код

название

цена

1

Shaft, Counter (nt:13)

Shaft, Counter (nt:13)

2

Gear, 2nd Drive

Gear, 2nd Drive

3

Gear, 3rd Drive

Gear, 3rd Drive

4

Gear, 4th Drive

Gear, 4th Drive

5

Gear, 5th Drive

Gear, 5th Drive

6

Шайба

Шайба

7

Washer, 1st Driven, Rh

Washer, 1st Driven, Rh

8

Washer, 1st Driven Gear, L

Washer, 1st Driven Gear, L

9

Bearing, Cntr Shaft Lh (17x40x12)

Bearing, Cntr Shaft Lh (17x40x12)

10

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

11

Подшипник (25x52x15)

Подшипник (25x52x15)

12

Drive Shaft

Drive Shaft

13

Gear, 1st Driven (nt:33)

Gear, 1st Driven (nt:33)

14

Gear, 2nd Drive

Gear, 2nd Drive

15

Gear, 3rd Drive

Gear, 3rd Drive

16

Bush, 3rd, Driven

Bush, 3rd, Driven

17

Gear, 4th Drive

Gear, 4th Drive

18

Gear, 5th Drive

Gear, 5th Drive

19

Gear, Reverse Driven (nt:28)

Gear, Reverse Driven (nt:28)

20

Dog, Reverse

Dog, Reverse

21

Bush, 3rd Driven

Bush, 3rd Driven

22

Шайба

Шайба

25

Washer, 1st Driven (20x30x1.0)

Washer, 1st Driven (20x30x1.0)

26

Washer, 5th Drive (25x34x1.0)

Washer, 5th Drive (25x34x1.0)

27

Bearing, Drive Shaft Lh (25x62x17)

Bearing, Drive Shaft Lh (25x62x17)

28

Seal, Drive Shaft Oil (25x38x6)

Seal, Drive Shaft Oil (25x38x6)

29

Bush, 1st Driven

Bush, 1st Driven

30

Втулка

Втулка

33

.bearing, Crankshaft Lower (17x40x12)

.bearing, Crankshaft Lower (17x40x12)

34

Retainer, Counter Shaft Rh

Retainer, Counter Shaft Rh

35

Screw, Drive Shaft (6x12)

Screw, Drive Shaft (6x12)

36

Retainer, Drive Shaft Oil Sea

Retainer, Drive Shaft Oil Sea

37

Bolt, Retainer (6x14)

Bolt, Retainer (6x14)

38

Shaft, Reverse Idle

Shaft, Reverse Idle

39

Gear, Reverse Idle (nt:24)

Gear, Reverse Idle (nt:24)

40

Bush, Reverse

Bush, Reverse

41

Washer, 1st Driven (17x28x1.0)

Washer, 1st Driven (17x28x1.0)

42

Washer (17x36x1.0) (17x36x1.0)

Washer (17x36x1.0) (17x36x1.0)

43

Упругая Шайба

Упругая Шайба

44

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

45

Sprocket, Engine (nt:14)

Sprocket, Engine (nt:14)

46

Plate, Sprocket

Plate, Sprocket

47

27600-43B20-096

Chain Assy (rk520sm0z10s, 96l)

Chain Assy (rk520sm0z10s, 96l)

48

Joint Set (opt)

Joint Set (opt)

49

Болт

Болт

23

Шайба

Шайба

24

Washer, Shim (17x30x1.0)

Washer, Shim (17x30x1.0)

31

3rd Pinion Circ

3rd Pinion Circ

32

3rd Pinion Circ

3rd Pinion Circ
