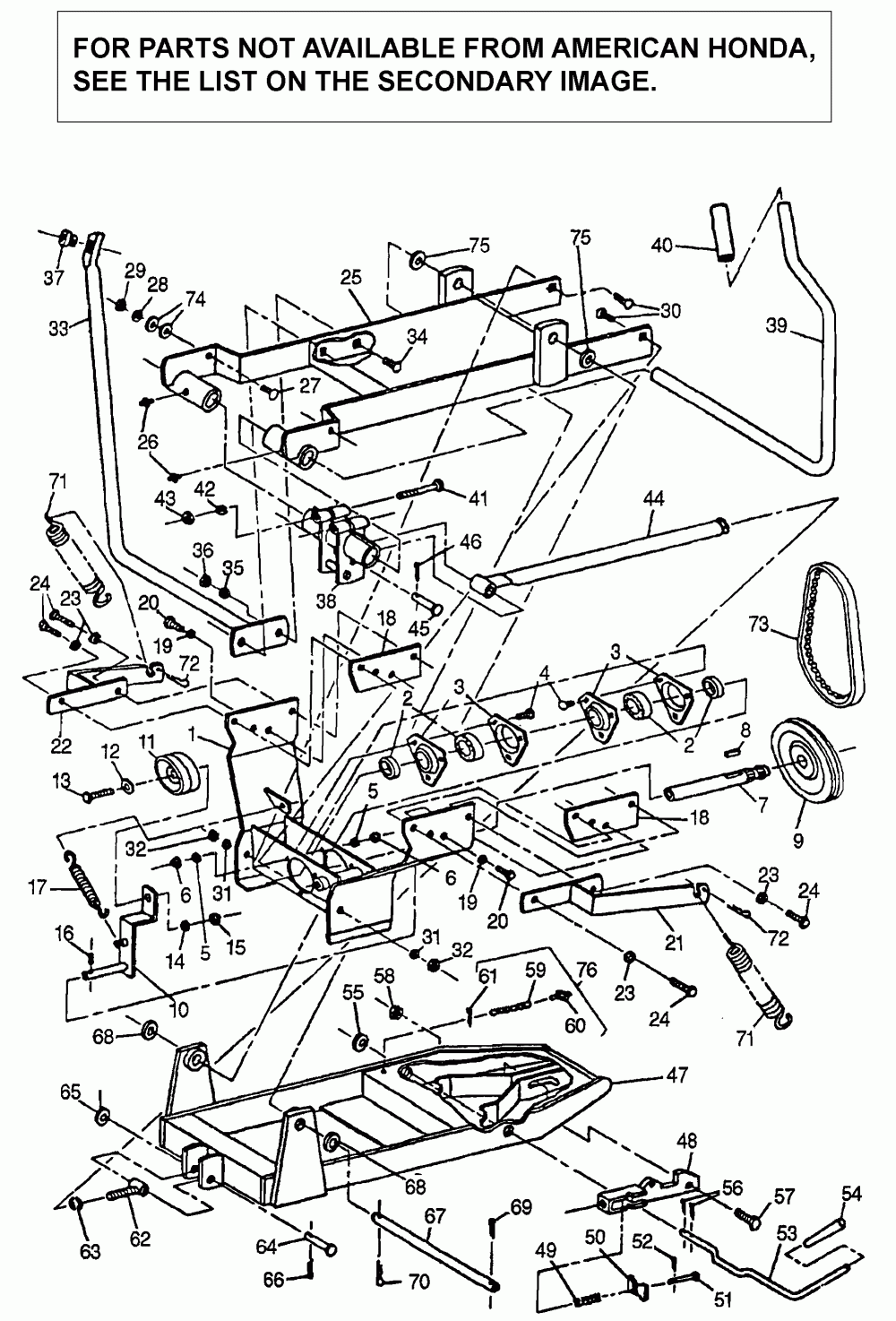

Sb1013b - Quick-hitch Assembly

Honda SB1013B A TWO-STAGE SNOW BLOWER, USA
Honda
#oem кодцена
2
72998-0001
BEARING (W/LOCKING COLLAR)
3
72998-0024
FLANGE, BEARING
8
72998-0003
KEY (1/4X1/4X1 1/4")
9
72998-0055
Шкив
11
72998-0056
PULLEY, IDLER
17
72998-0057
Пружина
18
72998-0019
Проставка
25
72996-0009
SUB-FRAME, RR.
26
72996-0001
FITTING, GREASE
37
72998-0039
SEE PART DETAILS - SUP; GROMMET, PLASTIC
37
76339-VE4-N00
SEE PART DETAILS - PRI; GROMMET, PLASTIC
39
72996-0011
ARM, LIFT
40
72998-0008
Втулка
44
72996-0010
ARM, LIFT PIVOT
45
72996-0002
PIN (17/32X2-1/4")
48
72996-0004
LATCH, QUICK HITCH
49
72998-0062
Пружина
50
72996-0005
Гайка-пружинная
51
72996-0006
PIN (1/4X1-3/4")
54
72996-0008
GRIP, RUBBER HANDLE
62
72996-0013
BOLT, SLEEVE
64
72996-0003
PIN (17/32X2-1/8")
67
72996-0012
PIN (5/8X10-1/2")
71
76779-771-S00
SEE PART DETAILS - PRI; SPRING, TENSIONER
73
72996-0018
BELT (BX37)
75
72996-0014
Проставка
