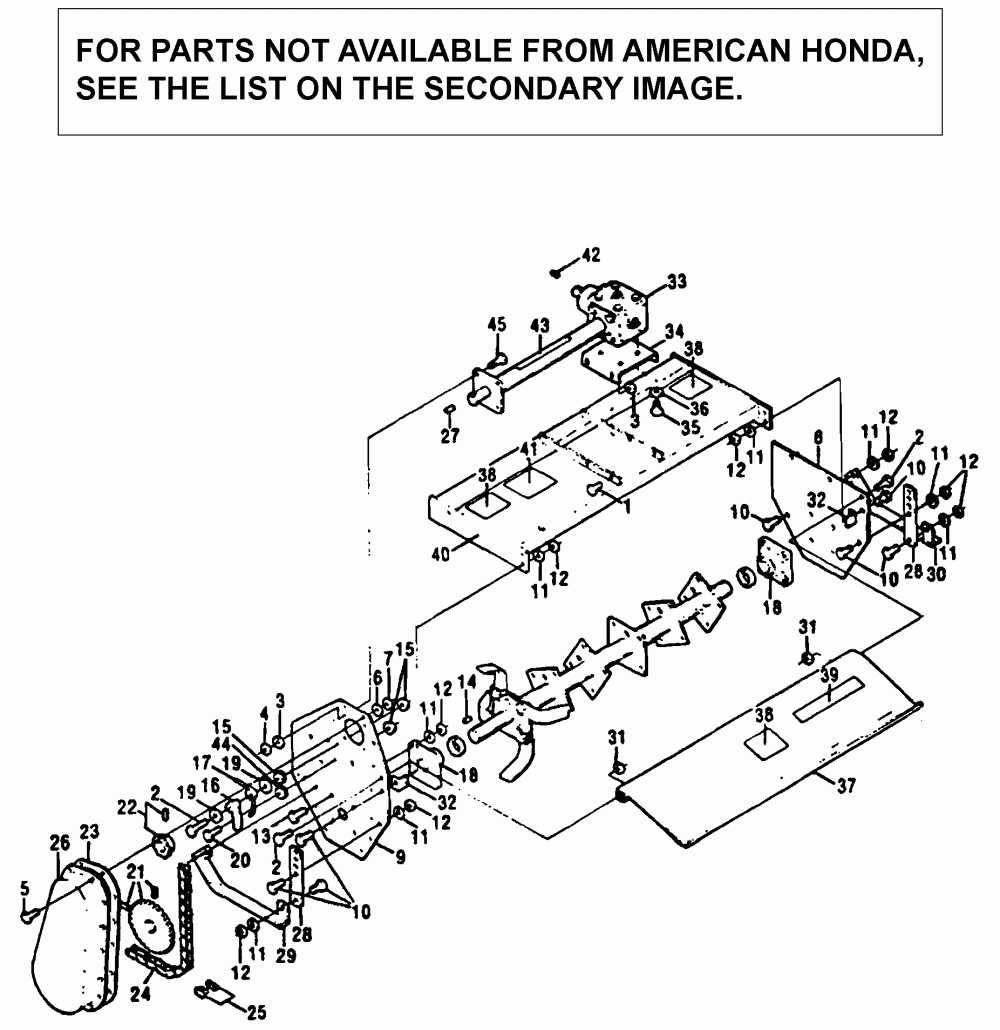

Tl752a - Base Frame

Honda TL752A A LAWN TRACTOR, USA

Tl752a - Base Frame

#

oem код

название

цена

1

SCREW, CAP (3/8X3/4")

SCREW, CAP (3/8X3/4")

2

SCREW, CAP (3/8X2-1/4")

SCREW, CAP (3/8X2-1/4")

3

WASHER, LOCK (3/8")

WASHER, LOCK (3/8")

4

NUT, HEX. (3/8")

NUT, HEX. (3/8")

5

SCREW, CAP (5/16X3/4")

SCREW, CAP (5/16X3/4")

7

NUT, HEX. (5/16")

NUT, HEX. (5/16")

8

PLATE, R. SIDE

PLATE, R. SIDE

9

PLATE, L. SIDE

PLATE, L. SIDE

10

SCREW, CAP (1/2X1-1/4")

SCREW, CAP (1/2X1-1/4")

12

NUT, HEX. (1/2") (13 UNC)

NUT, HEX. (1/2") (13 UNC)

14

Шпонка

Шпонка

15

NUT, WHIZ (3/8")

NUT, WHIZ (3/8")

16

TENSIONER, CHAIN

TENSIONER, CHAIN

18

BEARING ASSY.

BEARING ASSY.

21

SPROCKET (29-TOOTH)

SPROCKET (29-TOOTH)

23

GASKET, CHAIN COVER

GASKET, CHAIN COVER

25

Замок

Замок

26

COVER, CHAIN

COVER, CHAIN

27

Шпонка

Шпонка

28

BAR, DEPTH ADJUSTING

BAR, DEPTH ADJUSTING

29

SKID SHOE WELD, R.

SKID SHOE WELD, R.

30

SKID SHOE WELD, L.

SKID SHOE WELD, L.

31

NUT, LOCK (3/8") (16 UNC)

NUT, LOCK (3/8") (16 UNC)

33

BOX ASSY., GEAR

BOX ASSY., GEAR

34

PLATE WELD, GEAR BOX

PLATE WELD, GEAR BOX

38

DECAL, DANGER USA

DECAL, DANGER USA

42

Шпонка

Шпонка
