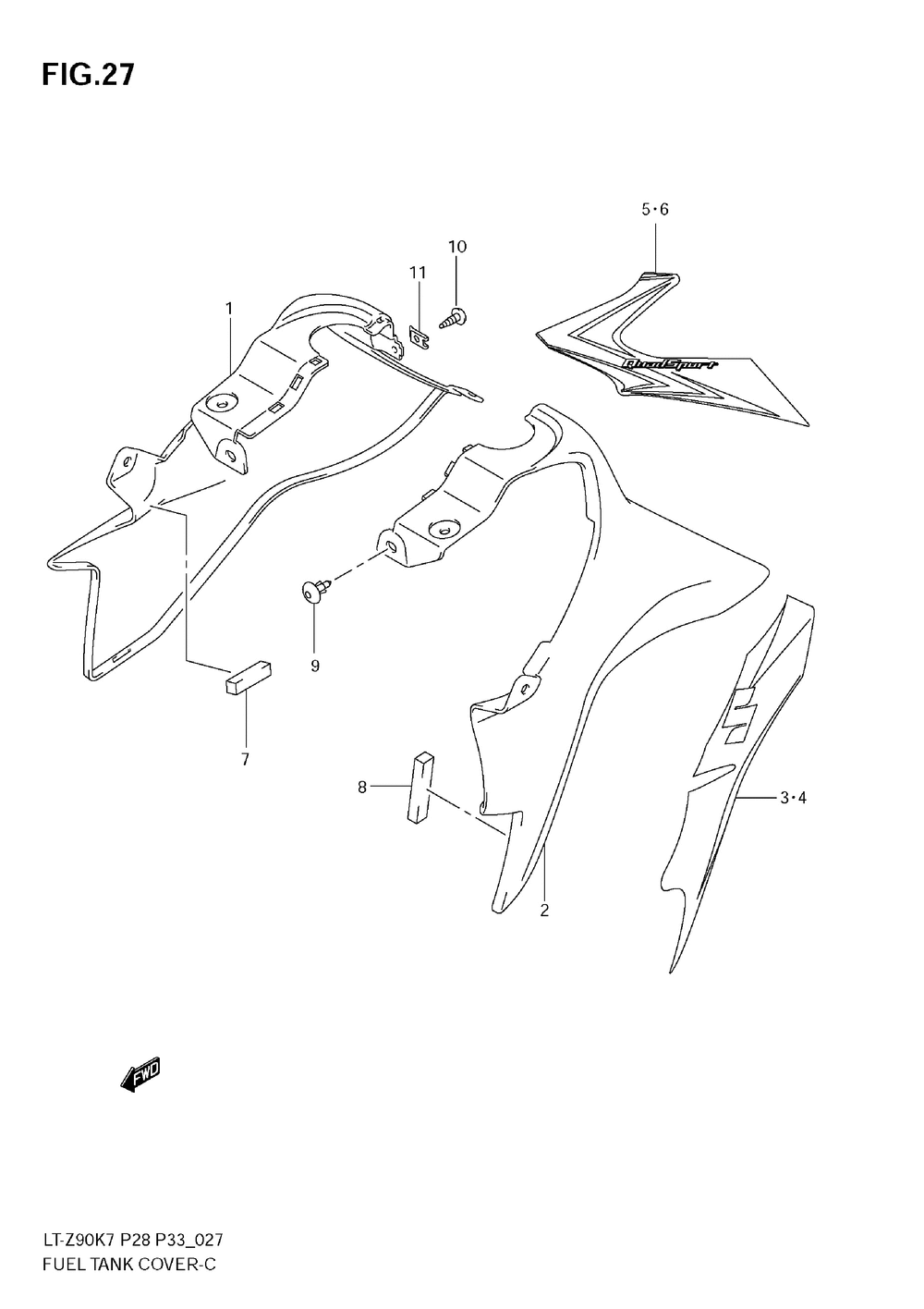

Fuel tank cover (model k7/k8)

Suzuki LT-Z90 QuadSport Z90

oem код

название

цена

1-1

44271-08H00-YU1

Cover, Fuel Tank Rh (yellow)

1-2

44271-08H00-30H

Cover, Fuel Tank Rh (white)

2-1

44272-08H00-YU1

Cover, Fuel Tank Lh (yellow)

2-2

44272-08H00-30H

Cover, Fuel Tank Rh (white)

3-1

68115-08H00-DSW

Tape, Rh (model K7 For Yu1)

3-2

68115-08H00-DSB

Tape, Rh (model K7 For 30h)

4-1

68116-08H00-DSW

Tape, Lh (model K7 For Yu1)

4-2

68116-08H00-DSB

Tape, Lh (model K7 For 30h)

5-1

68115-08H10-EMZ

Tape, Fuel Tank (model K8 For Yu1)

5-2

68115-08H10-EMY

Tape, Fuel Tank (model K8 For 30h)

6-1

68116-08H10-EMZ

Tape, Fuel Tank (model K8 For Yu1)

6-2

68116-08H10-EMY

Tape, Fuel Tank (model K8 For 30h)

Cushion, Upper

Cushion, Tank Co

Clip, Tray

Винт

Nut ( Refer To Fig.27a(d- 6) For Model K9 )
