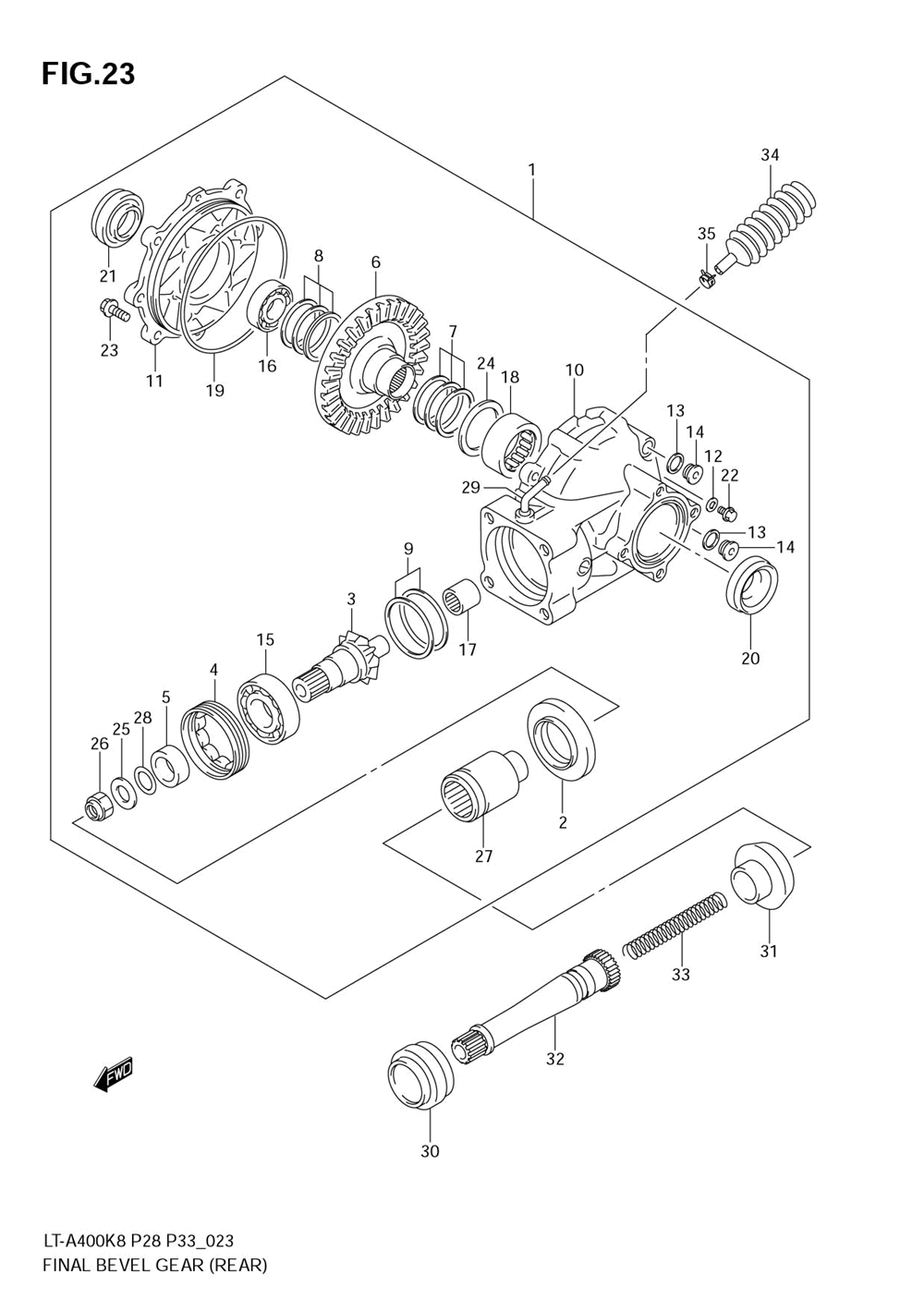

Редуктор задний Запчасти для квадроциклов ATV Suzuki LT-A400 KINGQUAD (2008)

Редуктор задний

Suzuki LT-A400 KINGQUAD

oem код

название

цена

Case Assy, Rr Fi ()

Provisional ()

Gear, Fnl Drvn B ()

.stopper, Final Drive ()

27316-38FM0

.spacer, Rear Final Drive ()

27321-27HM0

Gear, Fnl Drvn B ()

27326-09810

.shim Set, Final Driven Lh (t:0.30/0.35/0.40/0.50/0.60)

27326-18810

.shim Set, Final Driven Rh (t:0.30/0.35/0.40/0.50/0.60)

27445-24810

.shim Set, Final Drive Gear (t:0.30/0.35/0.40/0.50/0.60)

27450-27HM0

Case, Rr Final D ()

27461-38FM0

.case, Rear Final Driven Rh ()

09168-06018

Gasket, Tensioner Adjuster (6.2x13x1.2)

09168-16002

Gasket (16x22x2.0) (16x22x2.0)

09248-16012

Plug, T/m Breather ()

27405-38FN0

.bearing, Final Drive Gear ()

27405-38FP0

.bearing, Final Driven Rh ()

27405-38FR0

.bearing, Final Drive Pilot ()

27405-38FS0

.bearing, Final Driven Lh ()

27405-38FT0

.o Ring, Bearing Case Rh ()

09283-38009

Seal, Final Driven Gear Oil L ()

09283-42011

.oil Seal, Final Driven Rh ()

27401-38FM0

.bolt, Oil Check ()

27401-38FN0

.bolt, Rear Final Gear ()

27407-38FN0

.washer, Final Driven Lh ()

09160-16026

Washer, Fr Drive Output Yoke ()

09159-16003

Nut, Sec Driven Bevel Couplin ()

Coupling, Rr Fin ()

O-ring, Coupling ()

..union, Breather ()

Boot, Rear Prop ()

Boot, Joint Shaf ()

Shaft, Rear Prop ()

Spring, Rear Propeller ()

27491-38F00

Case, Breather ()

09401-08411

Clip ()
