Редуктор передний Запчасти для квадроциклов ATV Suzuki LT-A400F KingQuad 400AS 4x4 (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

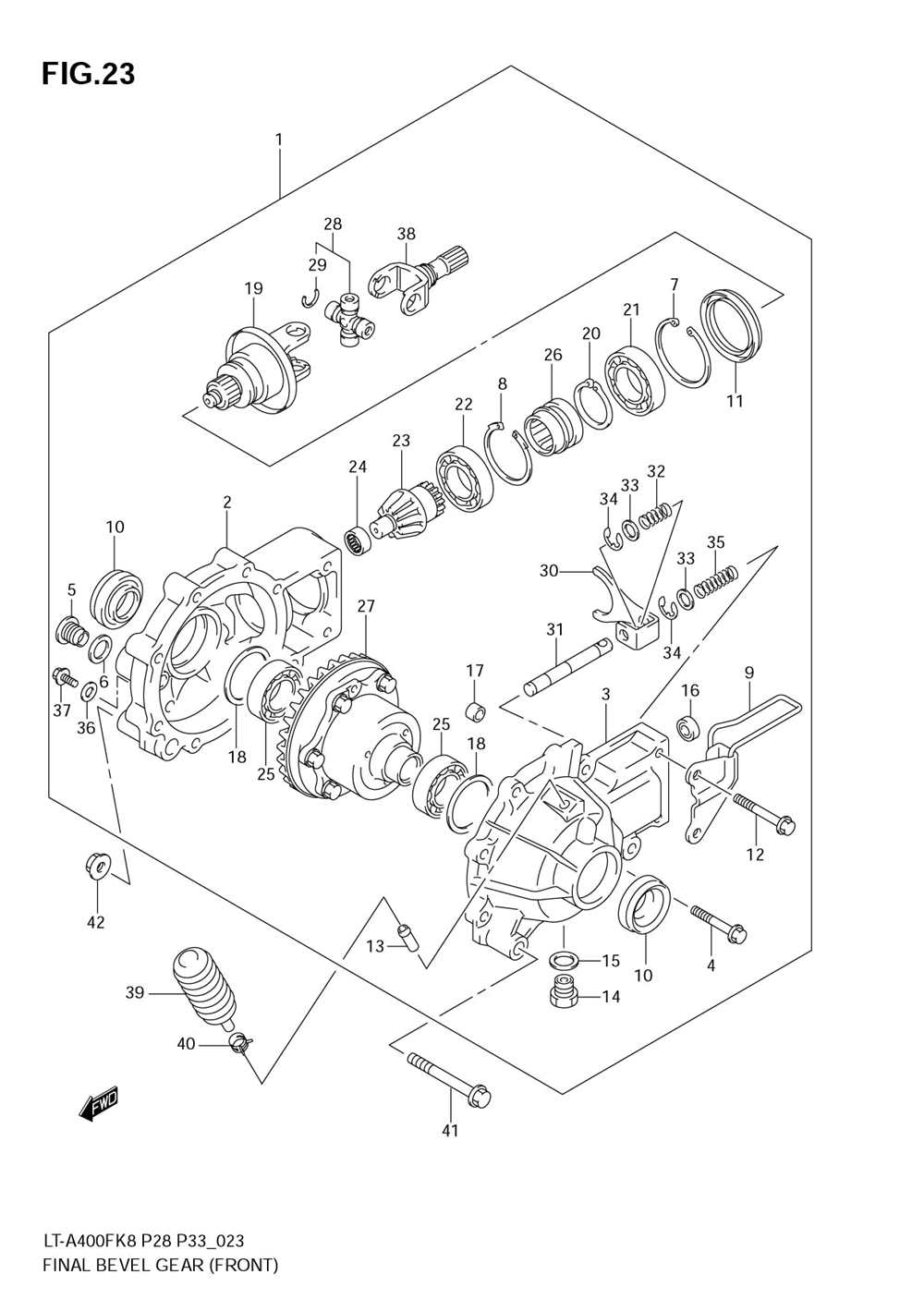

Редуктор передний

Suzuki LT-A400F KingQuad 400AS 4x4

Редуктор передний

#

oem код

название

цена

1

Case Assy, Fr Di ()

Case Assy, Fr Di ()

2

Housing Final D ()

Housing Final D ()

3

Cover, Final Dri ()

Cover, Final Dri ()

4

.bolt (8x25) ()

.bolt (8x25) ()

5

.plug ()

.plug ()

6

Шайба

Шайба

7

.ring Snap ()

.ring Snap ()

8

.ring Snap ()

.ring Snap ()

9

.bracket Assy, Shift ()

.bracket Assy, Shift ()

10

.oil Seal ()

.oil Seal ()

11

.oil Seal ()

.oil Seal ()

12

.bolt (8x50) ()

.bolt (8x50) ()

13

.pipe, Breather ()

.pipe, Breather ()

14

.plug ()

.plug ()

15

Шайба

Шайба

16

.oil Seal ()

.oil Seal ()

17

.collar ()

.collar ()

18

.shim Set (t:0.70/0.75/0.80/0.85/0.90/0.95/1.00/1.05/1.10/1.15/1.20/1.25/1.30/1.35/1.40/1.45)

.shim Set (t:0.70/0.75/0.80/0.85/0.90/0.95/1.00/1.05/1.10/1.15/1.20/1.25/1.30/1.35/1.40/1.45)

19

.yoke Assy ()

.yoke Assy ()

20

.snap Ring ()

.snap Ring ()

21

.bearing ()

.bearing ()

22

.bearing ()

.bearing ()

23

Pinion, Drive ()

Pinion, Drive ()

24

.bearing ()

.bearing ()

25

.bearing ()

.bearing ()

26

.sleeve ()

.sleeve ()

27

Provisional ()

Provisional ()

28

Joint Set, Universal Rr ()

Joint Set, Universal Rr ()

29

.circlip ()

.circlip ()

30

.fork, Shift ()

.fork, Shift ()

31

.rod, Shift ()

.rod, Shift ()

32

.spring, Shift ()

.spring, Shift ()

33

Шайба

Шайба

34

.e Ring ()

.e Ring ()

35

.spring, Return ()

.spring, Return ()

36

.washer, Level Plug ()

.washer, Level Plug ()

37

.plug, Level ()

.plug, Level ()

38

Yoke, Shaft Join ()

Yoke, Shaft Join ()

39

Case, Breather ()

Case, Breather ()

40

Clip ()

Clip ()

41

Bolt (10x110) ()

Bolt (10x110) ()

42

Nut, Upper ()

Nut, Upper ()
