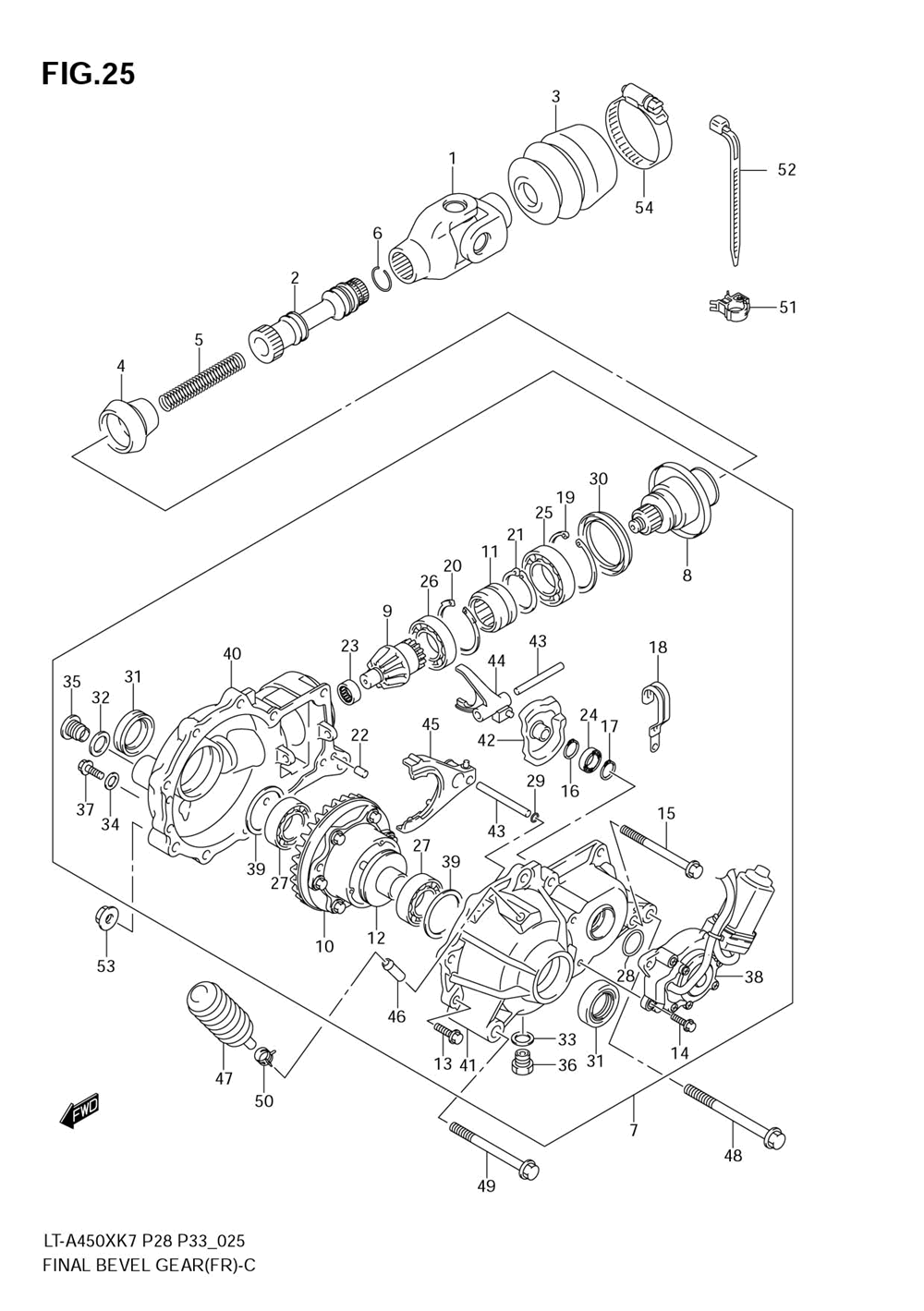

Редуктор передний

Suzuki LT-A450X 450AXi

Редуктор передний

#

oem код

название

цена

1

Yoke, Fr Prop Shaft ()

Yoke, Fr Prop Shaft ()

2

Shaft, Propeller ()

Shaft, Propeller ()

3

Boot, Front Prop Shaft ()

Boot, Front Prop Shaft ()

4

Boot, Front Prop Shaft ()

Boot, Front Prop Shaft ()

5

Spring, Fr Propeller ()

Spring, Fr Propeller ()

6

Circlip ()

Circlip ()

7

Case Assy, Fr Differential ()

Case Assy, Fr Differential ()

8

.shaft Assy, Input ()

.shaft Assy, Input ()

9

Pinion, Drive ()

Pinion, Drive ()

10

Gear Ring Assy ()

Gear Ring Assy ()

11

.sleeve ()

.sleeve ()

12

.pin, Sleeve Diff Lock ()

.pin, Sleeve Diff Lock ()

13

.bolt (8x25) ()

.bolt (8x25) ()

14

.flange Bolt, Hex Head ()

.flange Bolt, Hex Head ()

15

.flange Bolt, Hex Head ()

.flange Bolt, Hex Head ()

16

.snap Ring ()

.snap Ring ()

17

.snap Ring ()

.snap Ring ()

18

.clip ()

.clip ()

19

.ring Snap ()

.ring Snap ()

20

.ring Snap ()

.ring Snap ()

21

.snap Ring ()

.snap Ring ()

22

.collar ()

.collar ()

23

.bearing, Pinion ()

.bearing, Pinion ()

24

.bearing ()

.bearing ()

25

.bearing ()

.bearing ()

26

.bearing ()

.bearing ()

27

.bearing ()

.bearing ()

28

.o Ring ()

.o Ring ()

29

.o Ring ()

.o Ring ()

30

.oil Seal ()

.oil Seal ()

31

.oil Seal ()

.oil Seal ()

32

Шайба

Шайба

33

Шайба

Шайба

34

.washer, Level Plug ()

.washer, Level Plug ()

35

.plug ()

.plug ()

36

.plug ()

.plug ()

37

.plug, Level ()

.plug, Level ()

38

.dvc Assy ()

.dvc Assy ()

39

.shim Set ()

.shim Set ()

40

.housing, Final Drive, Fr ()

.housing, Final Drive, Fr ()

41

.cover, Final Drive, Fr ()

.cover, Final Drive, Fr ()

42

.cam Shift ()

.cam Shift ()

43

.rod Shift ()

.rod Shift ()

44

.fork Shift, 2wd & 4wd ()

.fork Shift, 2wd & 4wd ()

45

.fork Shift, Difflock ()

.fork Shift, Difflock ()

46

.pipe, Breather ()

.pipe, Breather ()

47

Case, Breather ()

Case, Breather ()

48

Bolt (10x90) (10x90)

Bolt (10x90) (10x90)

49

Bolt (10x110) (10x110)

Bolt (10x110) (10x110)

50

Clip ()

Clip ()

51

Clamp (id:15)

Clamp (id:15)

52

.clamp, Battery Cable (l:125)

.clamp, Battery Cable (l:125)

53

Гайка

Гайка

54

Clamp ()

Clamp ()
