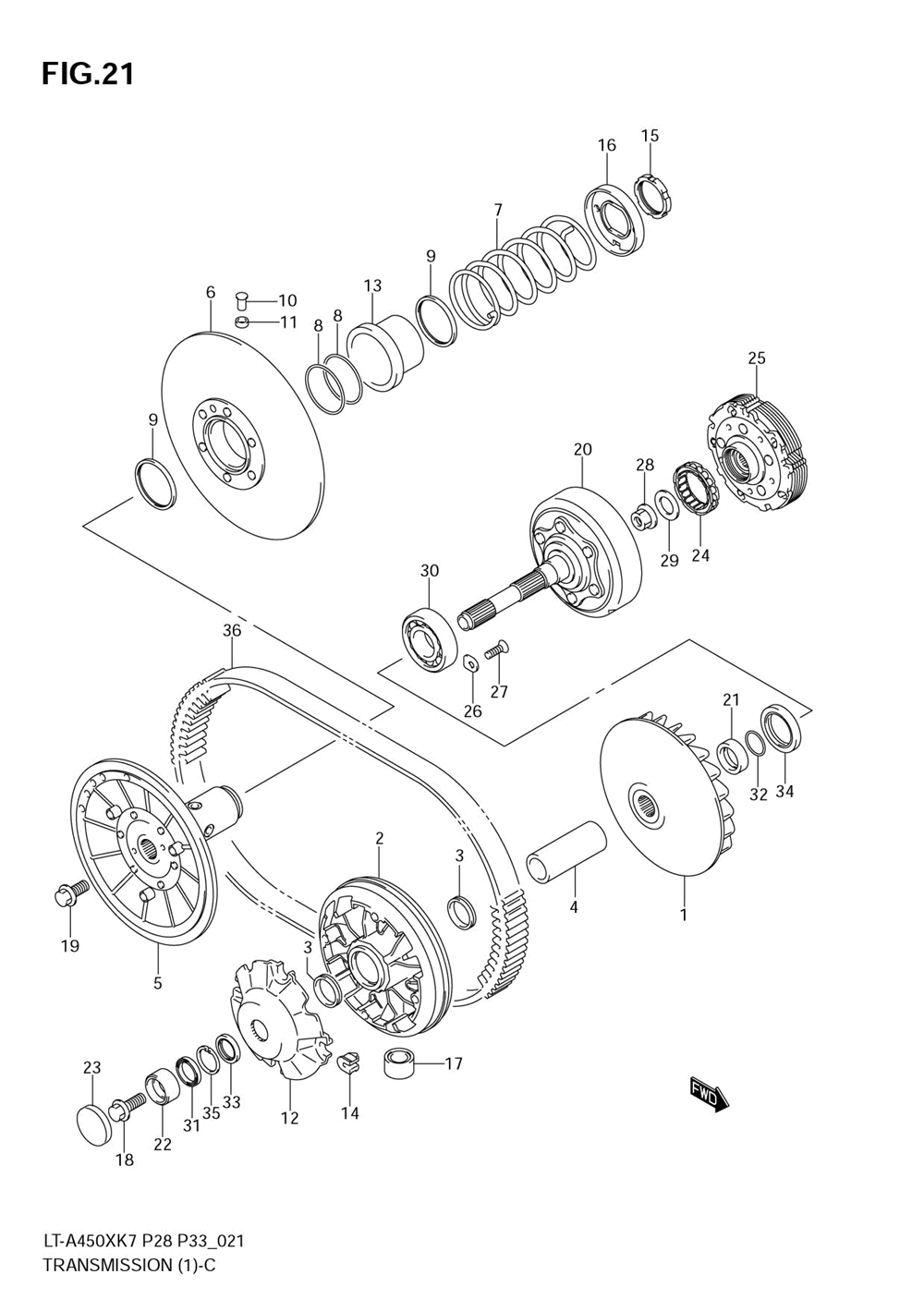

Трансмиссия 1

Suzuki LT-A450X 450AXi

Трансмиссия 1

#

oem код

название

цена

1

Face, Fixed Driv ()

Face, Fixed Driv ()

2

Face, Movable Dr ()

Face, Movable Dr ()

3

Seal, Movable Drive ()

Seal, Movable Drive ()

4

Spacer ()

Spacer ()

5

Face, Fixed Driv ()

Face, Fixed Driv ()

6

Face, Movable Dr ()

Face, Movable Dr ()

7

Spring, Movable Driven ()

Spring, Movable Driven ()

8

O-ring, Movable Driven ()

O-ring, Movable Driven ()

9

Seal, Movable Driven ()

Seal, Movable Driven ()

10

Pin, Movable Driven ()

Pin, Movable Driven ()

11

Spacer, Movable Driven Pin ()

Spacer, Movable Driven Pin ()

12

Plate, Movable D ()

Plate, Movable D ()

13

Sheet, Movable Driven ()

Sheet, Movable Driven ()

14

Damper, Movable Drive Plate ()

Damper, Movable Drive Plate ()

15

Гайка

Гайка

16

Holder, Movable Driven ()

Holder, Movable Driven ()

17

Ролик вариатора

Ролик вариатора

18

Bolt, Magneto Rotor ()

Bolt, Magneto Rotor ()

19

Болт (12x25)

Болт (12x25)

20

Housing, Clutch ()

Housing, Clutch ()

21

Spacer, Drive Shaft ()

Spacer, Drive Shaft ()

22

Spacer, Clutch H ()

Spacer, Clutch H ()

23

Крышка

Крышка

24

Clutch, Pri Drive One Way ()

Clutch, Pri Drive One Way ()

25

Clutch Assy ()

Clutch Assy ()

26

Retainer, Bearing ()

Retainer, Bearing ()

27

Винт (м6x12)

Винт (м6x12)

28

Гайка

Гайка

29

Шайба

Шайба

30

Bearing (25x62x17) (28x62x17)

Bearing (25x62x17) (28x62x17)

31

Bearing, Clutch Housing, R (30x47x7)

Bearing, Clutch Housing, R (30x47x7)

32

Кольцо (d:2.4, Id:24.7)

Кольцо (d:2.4, Id:24.7)

33

Сальник (35x47x5)

Сальник (35x47x5)

34

Сальник (38x56x7)

Сальник (38x56x7)

35

Стопорное кольцо

Стопорное кольцо

36

Ремень

Ремень
