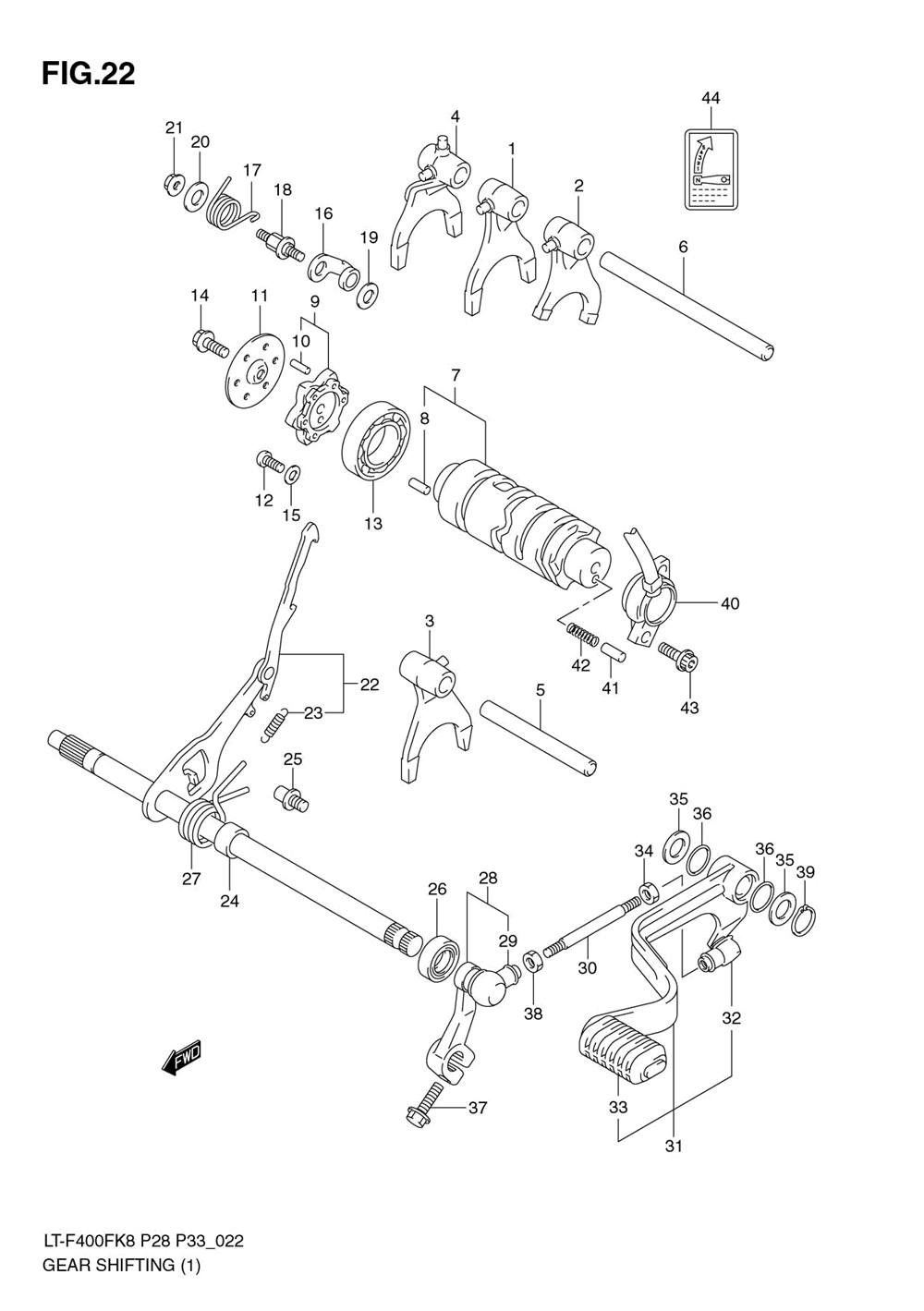

Gear shifting (1)

Suzuki LT-F400F KingQuad 400FS 4x4

Gear shifting (1)

#

oem код

название

цена

1

Fork, Gear Shift, No.1 ()

Fork, Gear Shift, No.1 ()

2

Fork, Gear Shift, No.2 ()

Fork, Gear Shift, No.2 ()

3

Fork, Gear Shifting, No.3 ()

Fork, Gear Shifting, No.3 ()

4

Fork, Gear Shift, Reverse ()

Fork, Gear Shift, Reverse ()

5

Shaft, Gear Shift Fork No.2 ()

Shaft, Gear Shift Fork No.2 ()

6

Shaft, Gear Shifting Fork ()

Shaft, Gear Shifting Fork ()

7

Cam, Gear Shift ()

Cam, Gear Shift ()

8

Pin ()

Pin ()

9

Plate, Gear Shift Cam ()

Plate, Gear Shift Cam ()

10

Roller ()

Roller ()

11

Guide, Gear Shift Cam ()

Guide, Gear Shift Cam ()

12

Screw, Shift Cam (6x12) (6x12)

Screw, Shift Cam (6x12) (6x12)

13

Bearing (25x47x8) (25x47x8.0)

Bearing (25x47x8) (25x47x8.0)

14

Болт

Болт

15

Retainer, Shift Cam ()

Retainer, Shift Cam ()

16

Stopper, Gear Shift Cam ()

Stopper, Gear Shift Cam ()

17

Spring.gear Shift ()

Spring.gear Shift ()

18

Support, Cam Stopper Arm ()

Support, Cam Stopper Arm ()

19

Шайба

Шайба

20

Шайба

Шайба

21

Гайка

Гайка

22

Shaft, Gear Shift ()

Shaft, Gear Shift ()

23

Spring, Gear Shi ()

Spring, Gear Shi ()

24

Spacer, Gear Shift ()

Spacer, Gear Shift ()

25

Stopper, Gear Shift ()

Stopper, Gear Shift ()

26

Oil Seal (14x22x6) ()

Oil Seal (14x22x6) ()

27

Spring ()

Spring ()

28

Arm, Gear Shift Link ()

Arm, Gear Shift Link ()

29

.cover, Dust ()

.cover, Dust ()

30

Rod, Gear Shift Link ()

Rod, Gear Shift Link ()

31

Lever Assy, Gear ()

Lever Assy, Gear ()

33

.rubber ()

.rubber ()

34

Гайка

Гайка

37

Болт

Болт

38

Гайка

Гайка

39

Circlip ()

Circlip ()

40

Base Assy, Neut Sw Terminal ()

Base Assy, Neut Sw Terminal ()

41

Contact ()

Contact ()

42

Spring ()

Spring ()

43

Болт

Болт

44-1

Label, Gear Shift Pattern (e28)

Label, Gear Shift Pattern (e28)

44-2

Label, Gear Shift Pattern (e33)

Label, Gear Shift Pattern (e33)

35

Washer 13x20x1 ()

Washer 13x20x1 ()

36

.o Ring ()

.o Ring ()
