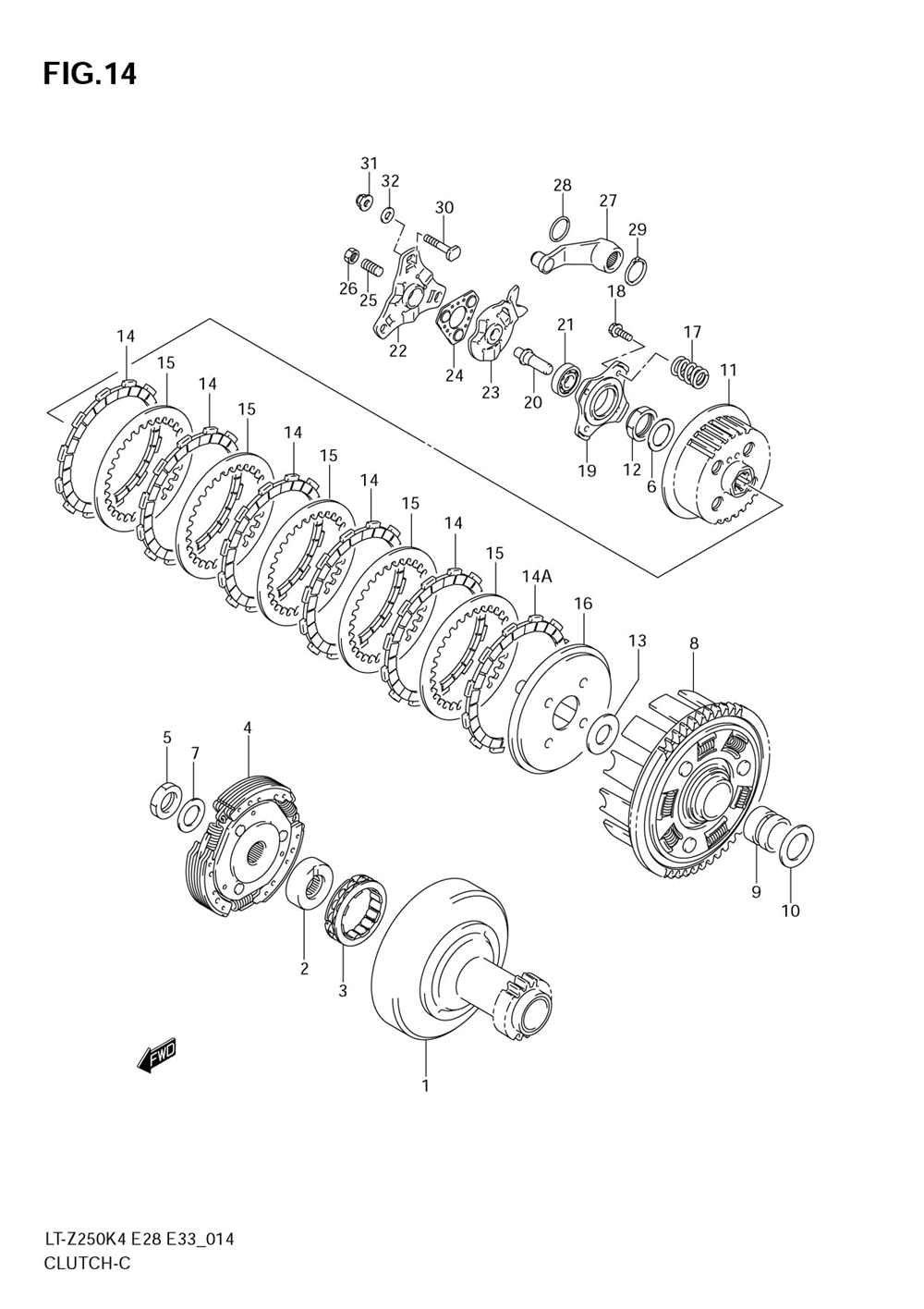

Сцепление Запчасти для квадроциклов ATV Suzuki LT Z250 QUADSPORT Z250 (2008)

Сцепление

Suzuki LT Z250 QUADSPORT Z250

oem код

название

цена

21110-21G00

Gear, Primary Drive (nt:21) ()

21631-19B11

Race, Inner ()

21273-19B10

Clutch, One Way ()

4-1

21500-05G10

Clutch Assy (model K4)

Гайка

Шайба

Шайба

Gear Assy, Primary (nt:64) ()

09180-22035

Spacer (22x28x23) ()

09181-22251

Washer (22x36x1.0) ()

Hub, Clutch ()

Гайка

Шайба

Plate, Drive ()

14A

21441-29B01

Plate, Drive No.2 ()

21451-36200

Plate, Driven (t:2) ()

Disc, Pressure ()

Spring ()

Болт

Plate, Release ()

Piece, Push ()

.bearing ()

Guide, Ball Outer ()

Guide, Ball Inner ()

Ball, Release ()

Screw, Adjuster ()

Nut, Adjuster ()

Arm, Release ()

Washer, Clutch Rlse Arm ()

08331-3114A

Circlip ()

09119-06103

Болт

09168-06023

Washer, Oil Gallery Exhaust ()

4-2

21500-05G10

Cluch Assy, Shoe (model K5/k6/k7/k8)
