КОЛЕНЧАТЫЙ ВАЛ Запчасти для квадроциклов ATV Suzuki LT Z250 QUADSPORT Z250 (2008)

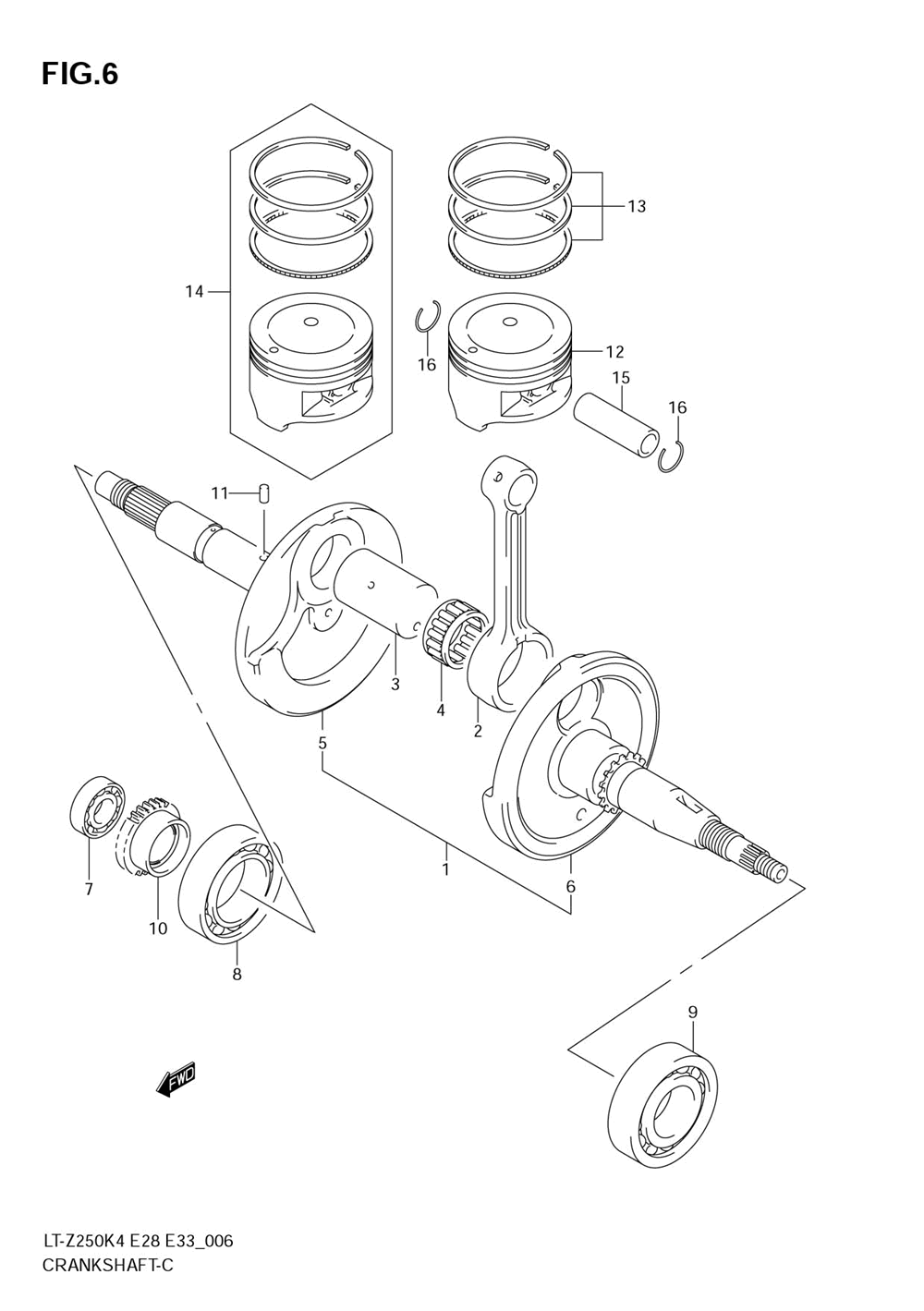

КОЛЕНЧАТЫЙ ВАЛ

Suzuki LT Z250 QUADSPORT Z250

oem код

название

цена

1-1

12200-21G02

Crankshaft Assy (model K4)

12161-19B02

.rod, Connecting ()

12210-21G00

.pin, Crank ()

09263-30033-0B0

.bearing (30x39x18) ()

5-1

12220-21G00

.crankshaft, Rh (model K4)

5-2

12220-21G01

.crankshaft, Rh (model K5/k6/k7/k8)

12261-21G00

.crankshaft, Lh ()

7-1

09262-15033

Bearing, Rh (15x35x11) (model K4/k5)

7-2

09262-15038

Bearing, Rh (15x35x11) (model K6/k7/k8)

09262-28014

Bearing (28x68x18) ()

09262-35073

Bearing, Lh (35x72x17) ()

16321-19B00

Gear, Oil Pump Drive (nt:30) ()

04221-04089

Pin ()

12111-05G01-0F0

Piston ()

13-1

12140-05G00

Ring Set, Piston (std) ()

13-2

12140-05G00-050

Ring Set, Piston (os:0.5) (opt)

12100-05G01-050

Piston Set, Os 0 (opt)

12151-22A02

Pin, Piston ()

09381-16004

Circlip ()

12161-19B03

Connrod ()

1-2

12200-21G02

Crankshaft Assy (model K5/k6/k7/k8)

5-1

12220-21G01

Crankshaftcomp, (model K4)
