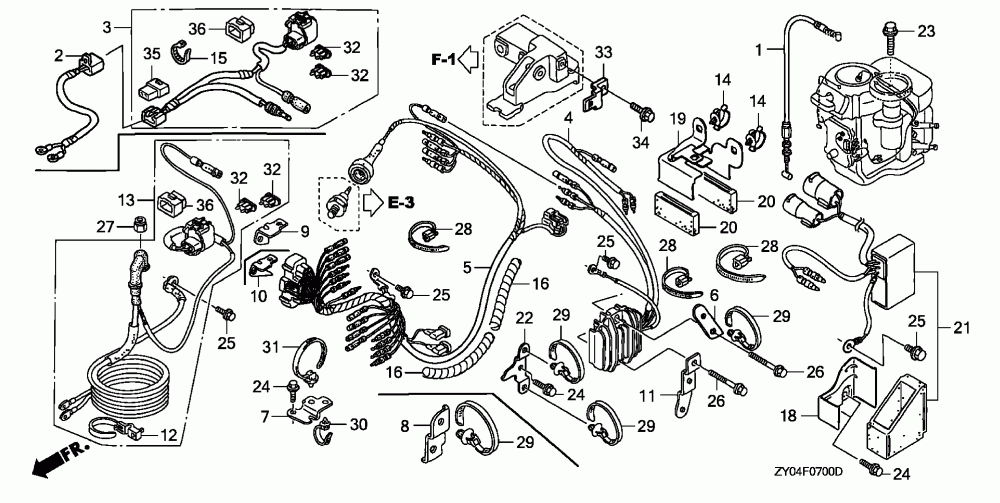

Жгут проводов и реле регулятора

Honda Marine BF15D4 SHTA
Honda Marine
#oem кодцена
1
17940-ZW9-010
CABLE, NEUTRAL STARTING
4
31750-ZY1-732
RECTIFIER ASSY., REGULATOR
5
32100-ZY1-700
WIRE HARNESS ASSY. (SELF STARTER)
6
32103-ZW9-010
BRACKET, CLIP F
6
32103-ZW9-000
BRACKET, CLIP F
7
32112-ZW9-000
BRACKET, STARTER CABLE
10
32115-ZY1-870
BRACKET, FUSE CASE (PT)
11
32118-ZW9-730
BRACKET, E-CLIP
12
32121-HA0-003
BAND, WIRE
13
32410-ZY1-870
CABLE ASSY., STARTER (PT)
14
32660-MJ6-710
Зажим
16
36104-ZW9-003
TUBE, SPIRAL A
18
38552-ZY1-871
BRACKET, RELAY (PT)
19
38553-ZY1-870
BRACKET, CONNECTOR A
20
38554-ZY1-870
GROMMET, CONNECTOR
21
38555-ZY1-871
RELAY ASSY., POWER TILT
22
38556-ZY1-870
BRACKET, HARNESS CLIP
23
90005-ZW9-000
Болт (6X20)
24
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
25
90013-ZW9-000
Болт (6X12)
26
90114-ZW9-000
BOLT, FLANGE (6X26) (CT200)
27
90204-ZY1-003
NUT, LOCK (6MM)
28
90650-ZY1-003
CABLE, TIE
29
91540-S30-003
CLIP, HARNESS BAND (151.5MM) (NATURAL)
30
91547-SF4-003
BAND, WIRE HARNESS (123.5MM) (BLUE)
31
91567-SE0-003
BAND, WIRE HARNESS (93.5MM) (WHITE)
32
98200-32000
FUSE, BLADE (20A)
36
38218-ZW9-003
COVER ASSY., FUSE (20A)
