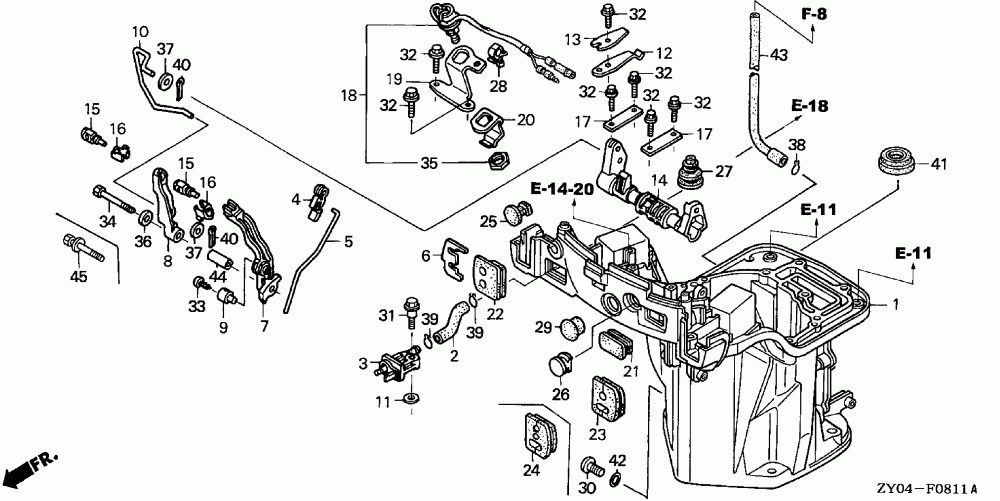

Oil Case + Shift Shaft (remote Specification)

Honda Marine BF20D3 LRA
Honda Marine
#oem кодцена
1
11321-ZY1-405ZA
CASE, OIL *NH282MU* (OYSTER SILVER METALLIC-U)
1
11321-ZY1-425ZA
CASE, OIL *NH282MU* (OYSTER SILVER METALLIC-U)
2
16851-ZW9-000
TUBE A, FUEL
3
17710-ZW9-033
CONNECTOR ASSY., FUEL (B)
4
17838-ZW9-000
LINKAGE, PIVOT
5
17841-ZY1-810
ROD, THROTTLE
6
17877-ZW9-831
PLATE, REMOTE CONTROL CABLE
7
17931-ZW9-830
ARM, THROTTLE REMOTE
8
17932-ZW9-830
ARM, SHIFT LINK
9
17933-ZV4-000
Держатель тяги дросселя
10
17933-ZW9-830
ROD, SHIFT LINK
11
17936-921-000
Шайба
12
24218-ZW9-000
SPRING, CLICK
13
24221-ZW9-010
SPRING, CLICK ASSIST
14
24611-ZW9-010
SHAFT, SHIFT
15
24618-ZW9-830
PIVOT, SHIFT
16
24619-ZW9-830
Пластина
17
24626-ZW9-010
PLATE, SHIFT SHAFT
18
35470-ZY1-731
SWITCH ASSY., NEUTRAL
19
35476-ZW9-730
BRACKET, NEUTRAL SWITCH
20
35618-ZW9-000
PLATE, NEUTRAL SWITCH
21
40104-ZW9-830
GROMMET G, OIL CASE
22
40105-ZW9-832
GROMMET A, OIL CASE
23
40106-ZW9-830
GROMMET B, OIL CASE
25
40107-ZW9-720
GROMMET F, OIL CASE
26
40108-ZW9-830
GROMMET D, OIL CASE
27
40109-ZW9-000
GROMMET E, OIL CASE
28
46391-VM0-003
CLIP, BRAKE PIPE (A)
29
53115-732-000
CAP, HANDLE (LOWER)
30
90101-ZW9-003
Болт , уровень масла
31
90112-ZY1-000
BOLT, SPECIAL (6X22) (CT200)
32
90113-ZW9-000
BOLT, FLANGE (5X12) (CT200)
33
90116-ZV1-000
Болт (5X8)
34
90120-ZV4-010
BOLT, HEX. (6X40)
34
90120-ZV4-000
BOLT, HEX. (6X40)
35
90302-ZV5-003
NUT, HEX. (20MM)
36
90512-921-010
Шайба (6MM)
37
90518-ZW9-830
WASHER, PLAIN (7MM)
38
90603-ZV4-000
CLIP, TUBE (B10)
39
90604-ZV0-000
CLIP, TUBE (B12)
40
90759-ZV1-000
Стопорный шплинт, 2.0
41
91202-ZY1-003
SEAL, WATER (15X28X6)
42
91301-216-000
O-RING (5.5X1.5)
43
91402-ZW9-000
TUBE, WATER CHECK
44
91552-ZW9-830
COLLAR, DISTANCE (6X11X27)
45
90103-ZY1-000
Болт (6x40)
