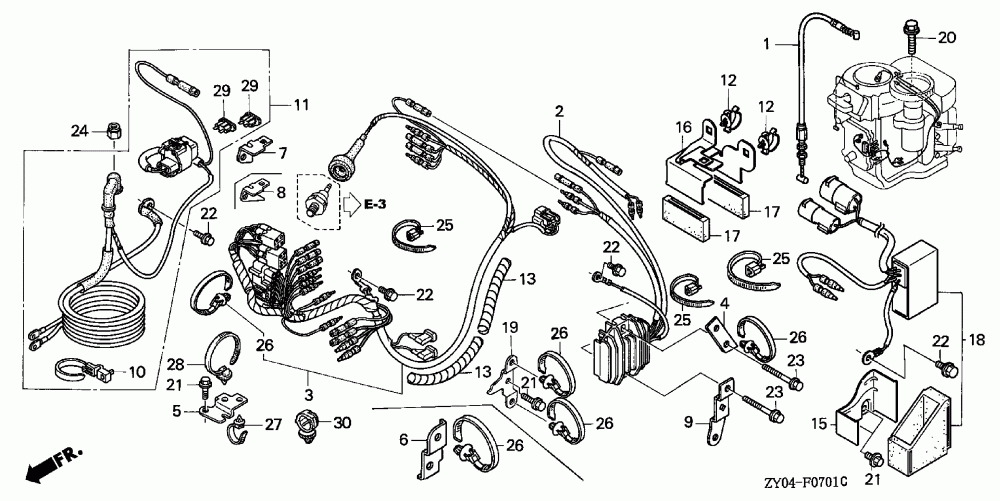

Wire Harness + Regulator + Starter Cable (2)

Honda Marine BF20D3 LRA
Honda Marine
#oem кодцена
1
17940-ZW9-010
CABLE, NEUTRAL STARTING
2
31750-ZY1-732
RECTIFIER ASSY., REGULATOR
3
32100-ZY1-810
WIRE HARNESS ASSY. (REMOTE CONTROL)
4
32103-ZW9-010
BRACKET, CLIP F
4
32103-ZW9-000
BRACKET, CLIP F
5
32112-ZW9-000
BRACKET, STARTER CABLE
6
32114-ZW9-730
BRACKET, CLIP B
7
32115-ZW9-000
BRACKET, FUSE CASE
9
32118-ZW9-730
BRACKET, E-CLIP
10
32121-HA0-003
BAND, WIRE
11
32410-ZY1-730
CABLE ASSY., STARTER
13
36104-ZW9-003
TUBE, SPIRAL A
20
90005-ZW9-000
Болт (6X20)
21
90011-ZW9-000
BOLT, FLANGE (6X14) (CT200)
22
90013-ZW9-000
Болт (6X12)
23
90114-ZW9-000
BOLT, FLANGE (6X26) (CT200)
24
90204-ZY1-003
NUT, LOCK (6MM)
25
90650-ZY1-003
CABLE, TIE
26
91540-S30-003
CLIP, HARNESS BAND (151.5MM) (NATURAL)
27
91547-SF4-003
BAND, WIRE HARNESS (123.5MM) (BLUE)
28
91567-SE0-003
BAND, WIRE HARNESS (93.5MM) (WHITE)
29
98200-32000
FUSE, BLADE (20A)
