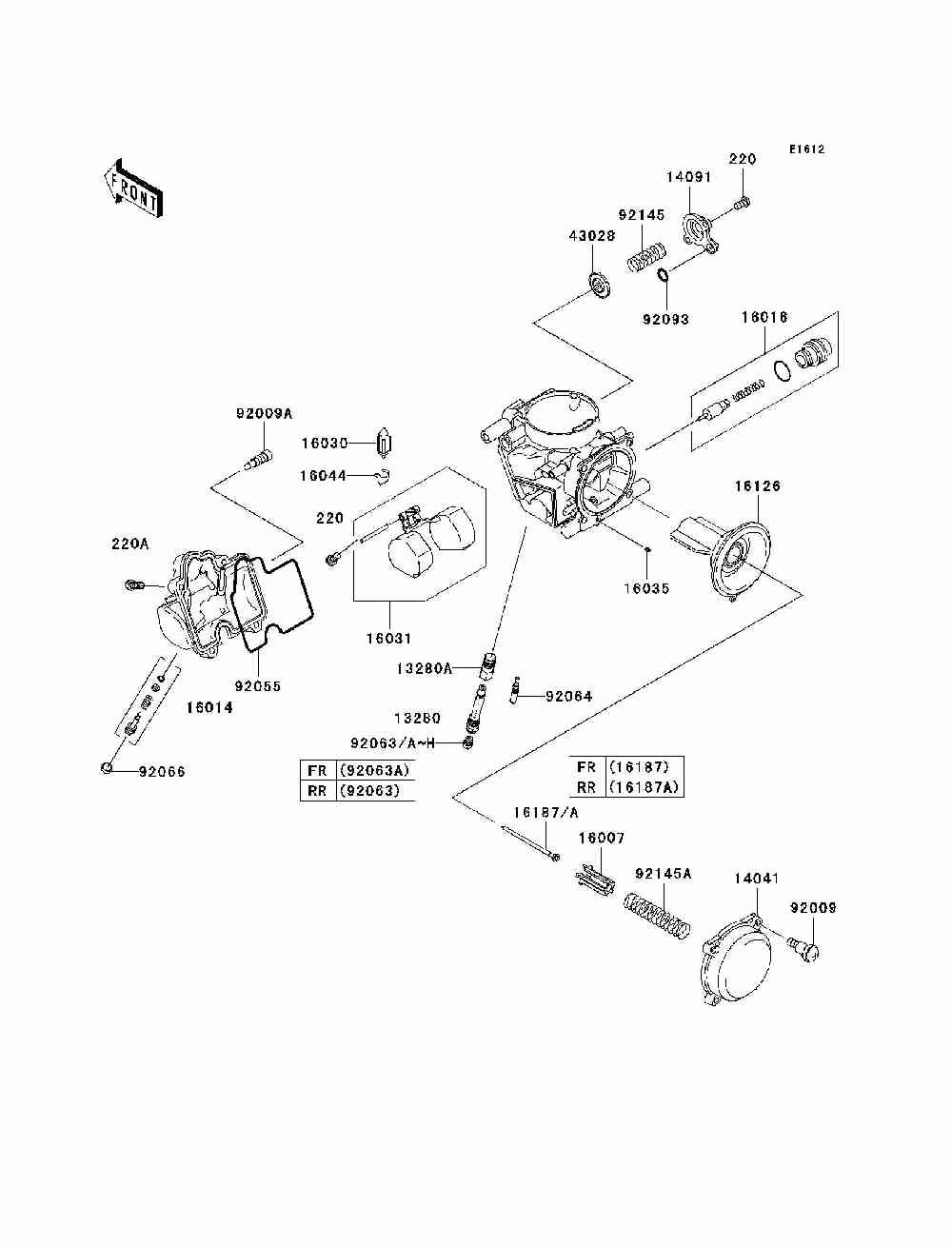

Карбюратор в разборе

Kawasaki Teryx 750 4X4 NRA Outdoors (KRF750-F8F)
Kawasaki
#oem кодцена
220
220AA0408
Винт
220A
220AA0414
Винт
13280
13280-0115
Держатель
13280A
13280-1096
Holder, Jet
14041
14041-1091
Cap-chamber, Mixing
14091
14091-1246
Cover, Air Cut Valve
16007
16007-1117
Seat-spring, Throttle
16014
16014-0009
Screw-pilot Air
16016
16016-1117
Плунжер
16030
16030-1007
Float Valve
16031
16031-1097
Поплавок
16035
16035-1055
Jet-air, Leak
16044
16044-007
Clip, Float Valve
16126
16126-0015
Клапан
16187
16187-0281
Needle-jet, N3rl
16187A
16187-0282
Needle-jet, Nfch
43028
43028-1085
Diaphragm, Air Cut Val
92009
92009-1549
Screw, 4x4.4
92009A
92009-1551
Винт
92055
92055-1589
Ring-o, Float
92063
92063-1013
Main Jet, #140
92063A
92063-1014
Main Jet, #135
92064
92064-0011
Jet-pilot, #38
92066
92066-1051
Plug, Pilot Screw
92093
92093-1046
Seal-"u"rin
92145
92145-0097
Пружина
92145A
92145-1064
Spring, Vacuum Valve
92063B
92063-1015
Main Jet, #138 (option)
92063C
92063-1016
Main Jet, #142 (option)
92063D
92063-1017
Main Jet, #145 (option)
92063E
92063-1069
Main Jet, 2nd, #125 (option)
92063F
92063-1074
Main Jet, 2nd, #128 (option)
92063G
92063-1075
Main Jet, 2nd, #130 (option)
92063H
92063-1076
Jet-main, #132 (option)
