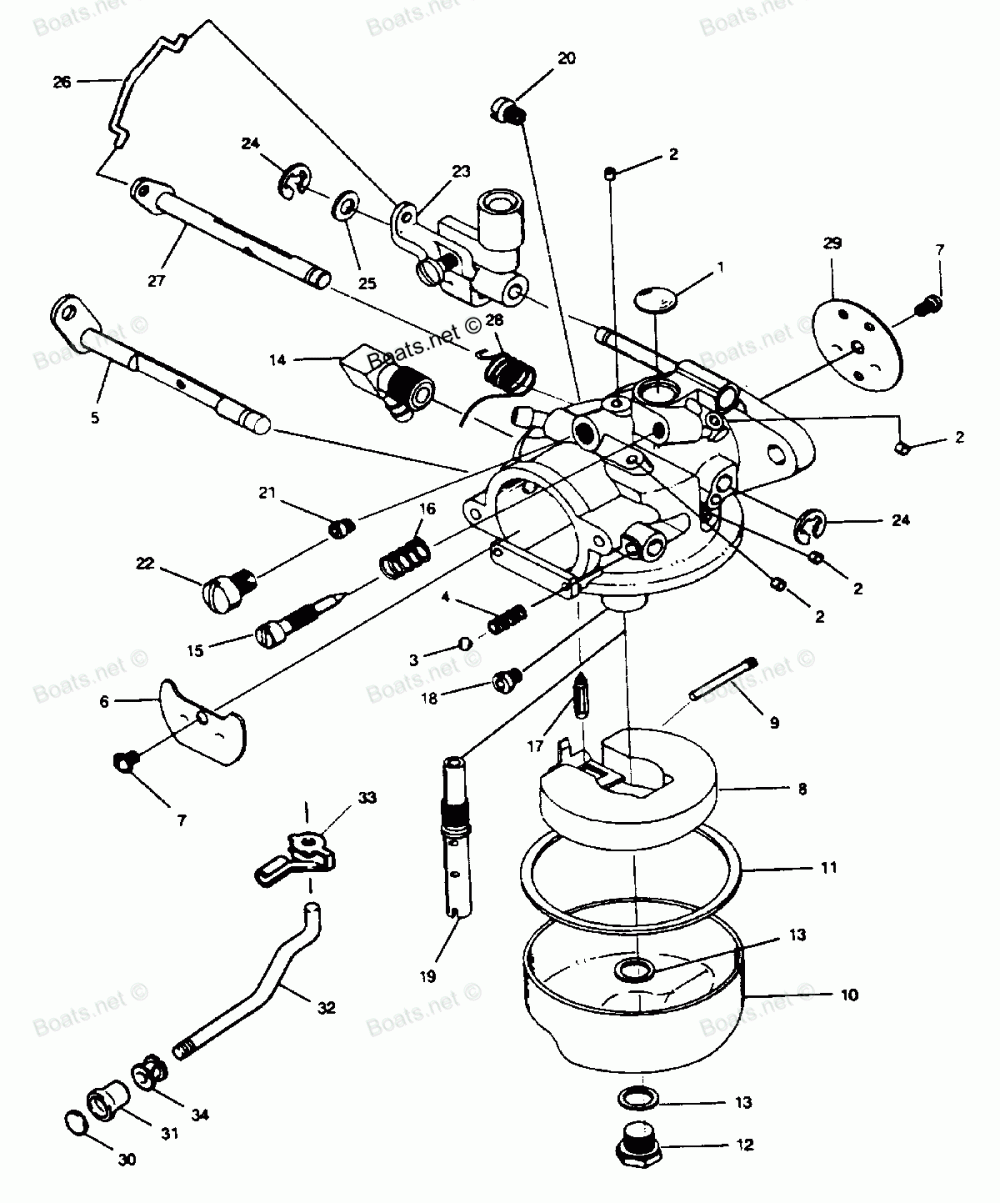

Карбюратор

Force H015211RS
Force
#oem кодцена
-
F715061-1
CARBURETOR (FO-1B)
1
FO16128
PLUG, By Pass Chamber
2
FO10588
PLUG, Body Channel Plug
3
FO4784
BALL, Choke Friction
4
FO8805
Пружина
5
F10343
SHAFT, Choke
6
F10344
SHUTTER, Choke
7
F10345
SCREW, Shutter
8
F10346
FLOAT, Fuel Bowl
9
FO13944
Палец
10
FO15366
BOWL, Fuel
11
FO15623
GASKET, Fuel Bowl
12
5128
SCREW, Fuel Bowl
13
FO2510
GASKET, Fuel Bowl Screw
14
F10347
Колено
15
F10268
SCREW, Idle Mixture
16
27160
SPRING, Idle Mixture Screw
17
F10265
NEEDLE, Inlet
18
6030
JET, Main (.070) (0 - 02500 )
18
6029
JET, Main (.068) (2500 - 5000 )
18
4215
JET, Main (.066) (5000 - 7500 )
18
4216
JET, Main (.064) (7500 - 10000
20
820578
JET, Idle Air Bleed (.048)
21
F10273
JET, Throttle (.047)
22
F10275
SCREW, Throttle Jet Sealing
23
F10290
LINKAGE, Throttle
24
F10241
CLIP, Throttle Linkage Shaft
25
F10242
WASHER, Throttle Linkage Shaft
26
F10338
LINK, Throttle
27
F10349
SHAFT, Throttle
28
F10350
SPRING, Throttle Shaft
29
F10351
SHUTTER, Throttle
-
FK10352
GASKET SET, Carburetor
-
FK10353
REPAIR KIT, Carburetor
30
F681677
INSERT, Choke Knob
31
F286547
Ручка, дроссель
32
819348
Тяга дросселя
33
F341384
RETAINER, Choke Rod
34
F197319
BUSHING, Choke Rod
