Fuel And Recirculation System Каталог оригинальных запчастей для лодочных моторов Force H015211RS (1995)

Главная
Каталог оригинальных запчастей для лодочных моторов
Force
1995
H015211RS

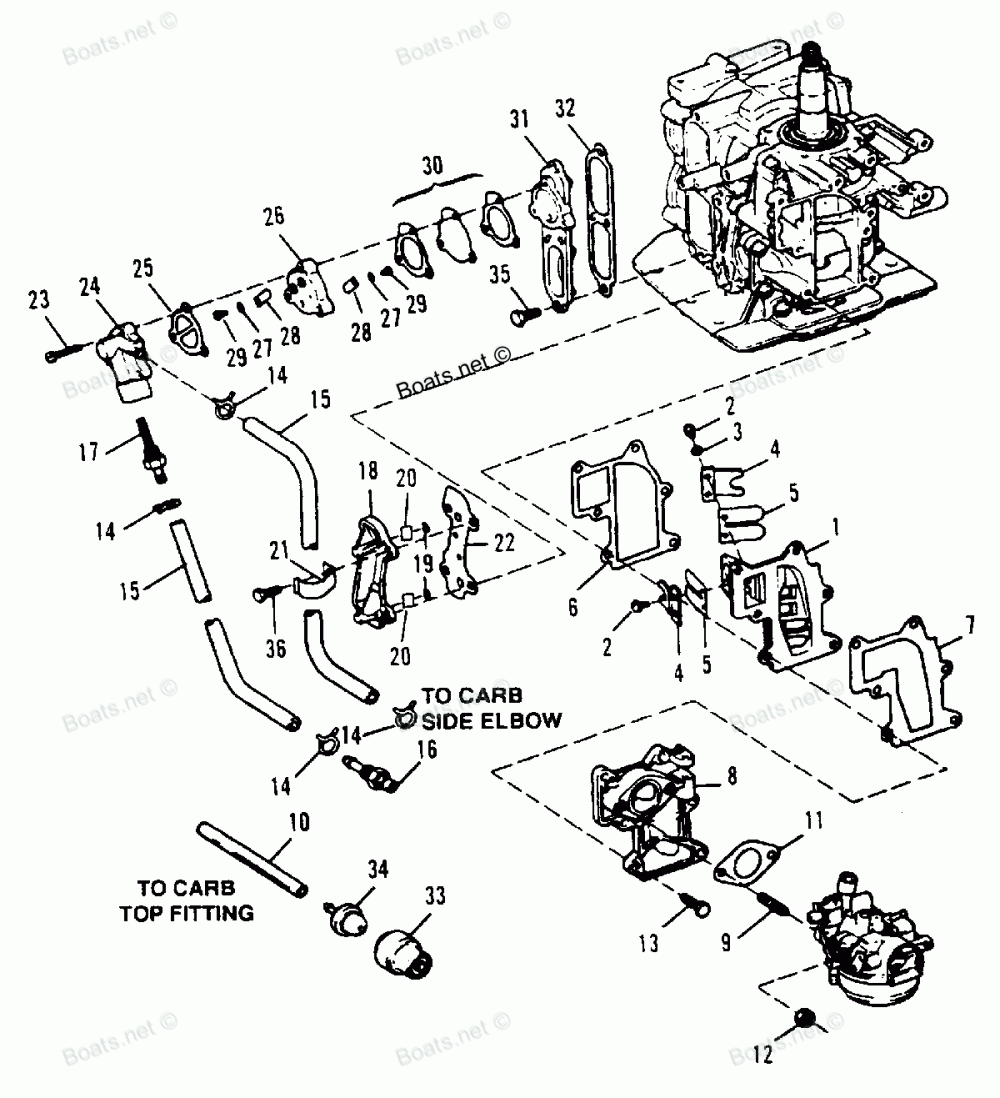

Fuel And Recirculation System
Fuel And Recirculation System

Fuel And Recirculation System

Force H015211RS

oem код

название

цена

FA715158

PLATE ASSEMBLY, Reed

28430

SCREW (6-32 x 1/4")

F1704

LOCKWASHER (#6 Internal)

STOP, Reed

REED

GASKET, Reed Plate

Прокладка

MANIFOLD KIT, Carburetor (Painted)

826622

STUD (1/4-20 x .91) With Dry Loc

F40253-1

HOSE, Primer Bulb to Carb (5-3/4") (Cut as Req d)

F715906

Прокладка карбюратора

20890

NUT (1/4-20)

28668

SCREW (1/4-20 x 7/8")

F2706772

Зажим

F40253-1

HOSE, Fuel (8-1/4") (13.38") (Cut as Req d)

F197767-2

BUSHING, Fuel

F901811

FILTER, Fuel Pump

FA429471

COVER ASSEMBLY, Cylinder Drain

Водозаборная решетка

VALVE KIT

Зажим

GASKET, Cylinder Drain Cover

F1069

SCREW (10-24 x 1-1/16")

819993T1

COVER, Fuel Pump (Painted)

F24748-2

Прокладка

F2A24757

PLATE ASSEMBLY, Fuel Pump

Шайба

REED

SCREW (4-40 x 3/16")

GASKET/DIAPHRAGM SET

COVER, Transfer Port

GASKET, Transfer Port Cover

F681954-1

COVER, Primer Bulb

F681046

BULB, Primer

98254

SCREW (1/4-20 x 5/8")

F1922

SCREW (1/4-20 x 5/8")
