Fuel Tank And Line Каталог оригинальных запчастей для лодочных моторов Force H015211RS (1995)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Force
1995
H015211RS

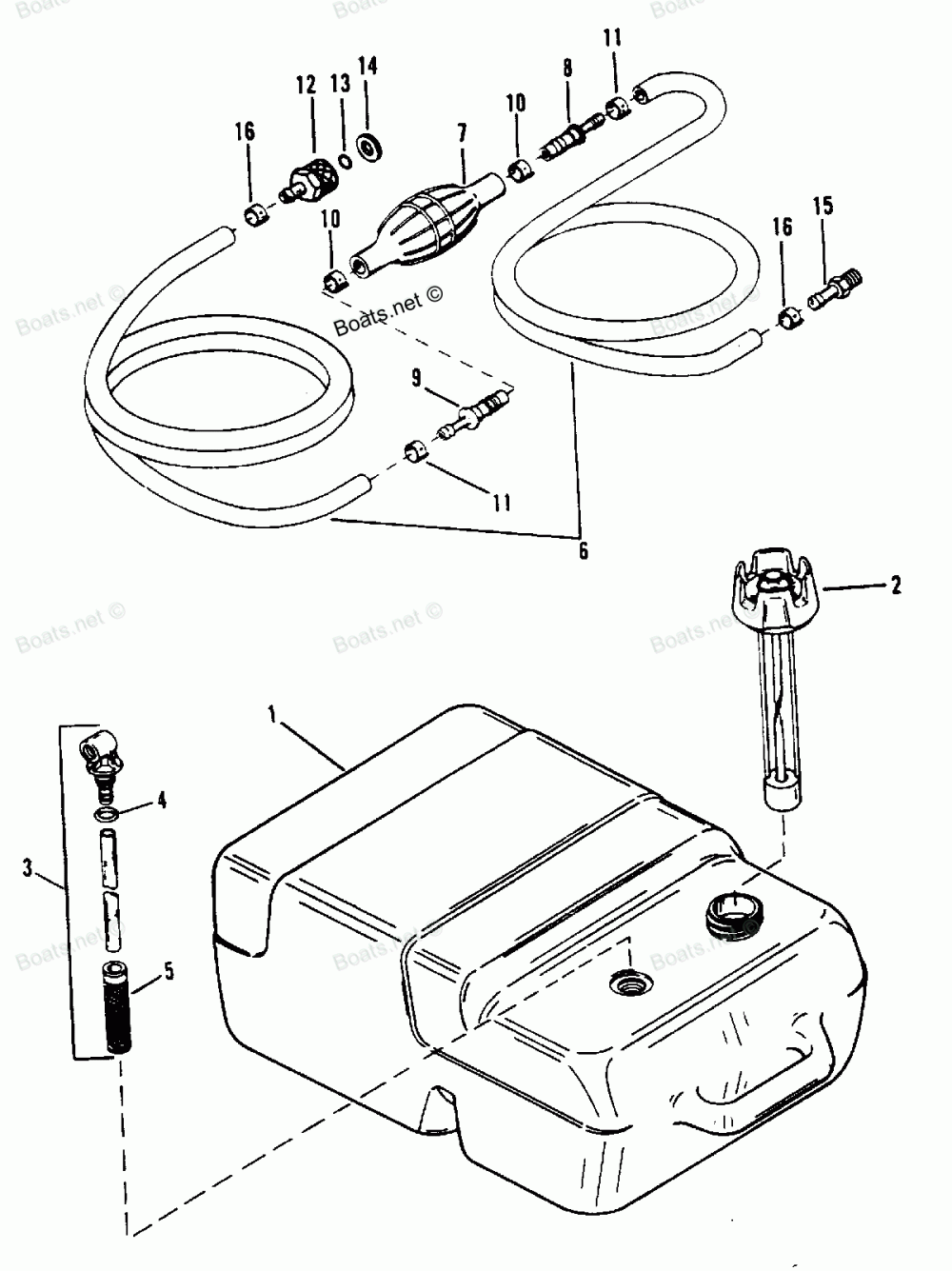

Fuel Tank And Line
Fuel Tank And Line

Fuel Tank And Line

Force H015211RS

Fuel Tank And Line

#

oem код

название

цена

1

TANK ASSEMBLY, Fuel (PLASTIC) (6.6 GALLON)

TANK ASSEMBLY, Fuel (PLASTIC) (6.6 GALLON)

2

GAUGE ASSEMBLY

GAUGE ASSEMBLY

3

CONNECTOR ASSEMBLY, Fuel

CONNECTOR ASSEMBLY, Fuel

4

Кольцо

Кольцо

5

SCREEN, Filter

SCREEN, Filter

6

LINE ASSEMBLY, Fuel (5/16" I.D. ) (8 Ft)

LINE ASSEMBLY, Fuel (5/16" I.D. ) (8 Ft)

7

BULB ASSEMBLY, Primer

BULB ASSEMBLY, Primer

8

CHECK VALVE (INLET)

CHECK VALVE (INLET)

9

CHECK VALVE (OUTLET)

CHECK VALVE (OUTLET)

10

CLAMP (LARGE)

CLAMP (LARGE)

11

CLAMP (SMALL)

CLAMP (SMALL)

12

COUPLER, Engine

COUPLER, Engine

13

SEAL, Fuel Coupler

SEAL, Fuel Coupler

14

SEAL, Fuel Coupler

SEAL, Fuel Coupler

15

CONNECTOR, Fuel Tank

CONNECTOR, Fuel Tank

16

Зажим

Зажим
